*Wagner Tuning Intercooler for 2005+ 2.0 TFSI VW Golf/Jetta [Mk V/VI] + Passat [B7] & EOS 200001034

$850.00

Quick Overview

This EVO Intercooler kit from Wagner Tuning for Volkswagen Auto Group 2.0 TFSI engines is a high-performance redesign of the OEM intercooler system. Designed for optimal performance, these intercoolers are a significant improvement over the OEM design, offering improved flow and air-charge cooling properties than the OEM intercooler. CAD Designed and FEM optimized, this intercooler kit utilizes the OEM mounting points for simple, straightforward installation and enhanced performance.

Sku # : wagner-tuning-vw-20-tfsi-intercooler
Item
Shipping
Wagner Tuning VAG 2.0 TFSI EVO Intercooler Kit

This EVO Intercooler kit from Wagner Tuning for Volkswagen Auto Group 2.0 TFSI engines is a high-performance redesign of the OEM intercooler system. Designed for optimal performance, these intercoolers are a significant improvement over the OEM design, offering improved flow and air-charge cooling properties than the OEM intercooler. CAD Designed and FEM optimized, this intercooler kit utilizes the OEM mounting points for simple, straightforward installation and enhanced performance.

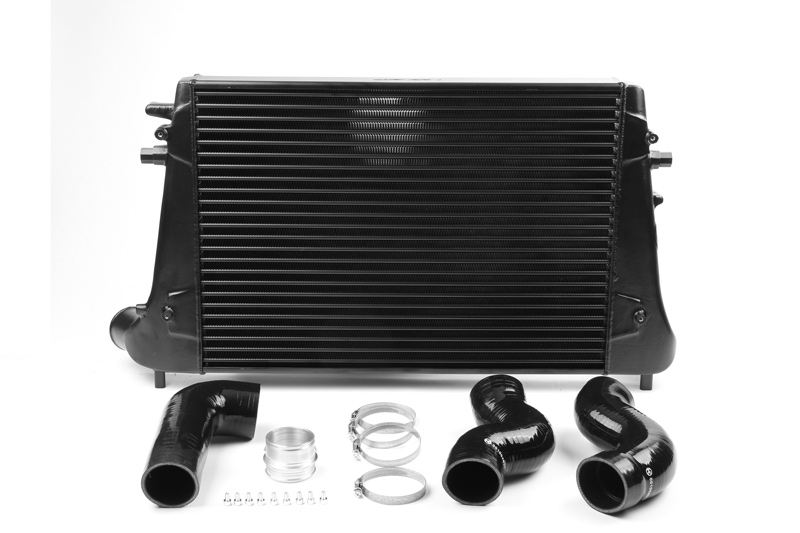

wagner tuning intercooler for vw 2.0 tfsi engines overall

Wagner's engineers revised the OEM intercooler system with much larger, more efficient intercooler core and improved the end tank design to remove the OEM bottlenecks, resulting in a greater increase in flow and charge cooling properties. When upgrading to a larger intercooler, the larger volume can sometimes cause a loss in manifold pressure (boost), but Wagner Tuning's engineers have tailored the flow of the intercooler to create a design that offers minimal loss of boost pressure. Manufactured utilizing the highest quality tube fin intercooler cores, these intercoolers also feature cast, then CNC-machined aluminum end tanks to ensure reliable high performance air to air intake charge cooling.

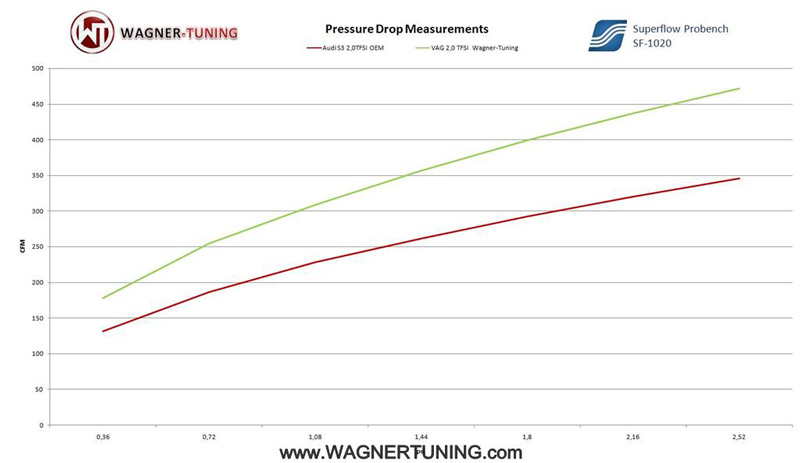

wagner tuning intercooler for vw 2.0 tfsi engines flow vs oem intercooler

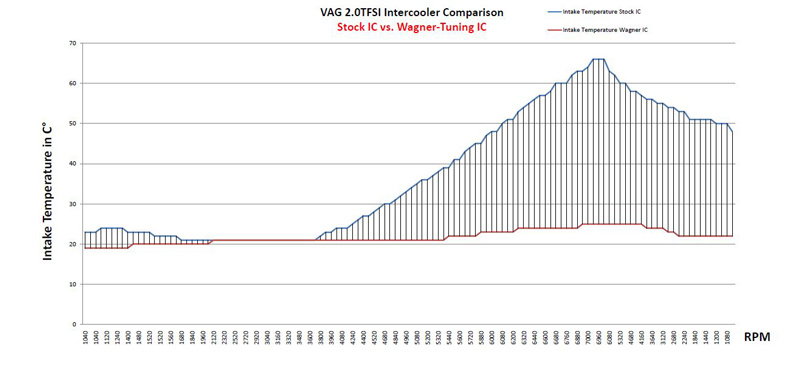

wagner tuning intercooler for vw 2.0 tfsi engines air charge temperature vs oem intercooler

Designed to conform to the strictest fitment standards, these intercoolers from Wagner Tuning offer OEM-grade fit and finish for straightforward bolt-in installation without the modification sometimes necessary for parts manufactured using less-exacting processes.

Key Features:

  • EVO Intercooler Cores: 610mm x 440mm x 56mm Core Design
  • 10% Larger Frontal Area than OEM Intercooler
  • 50% More Volume than OEM Intercooler
  • CAD-designed, FEA optimized Minimum-Pressure-Loss-Design
  • CNC-Machined Cast Aluminum End Tanks
  • Stealth Black Finish
  • OEM-like Fit For Simple & Straightforward Installation
  • Comes Complete with [2x] Boost-Rated Silicone Hoses, [4x] Hose Clamps, [1x] Aluminum Adapter
  • Includes Installation Instructions

Applications:

  • Audi TTS 2.0 TFSI [8J] (200001034)
  • Audi A3 2.0 TFSI [8P] (200001034)
  • Volkswagen Golf V GTI 2.0 TFSI (200001034)
  • Volkswagen Golf VI GTI (Cabrio) 2.0 TFSI (200001034)
  • Volkswagen Golf VI R 2.0 TFSI (200001034)
  • Volkswagen EOS 2.0 TFSI (200001034)
  • Volkswagen Jetta V 2.0 TFSI (200001034)
  • Volkswagen Jetta VI 2.0 TFSI (200001034)
  • Volkswagen Passat [B7] 2.0 TFSI (200001034)
  • Volkswagen Passat CC 2.0 TFSI (200001034)

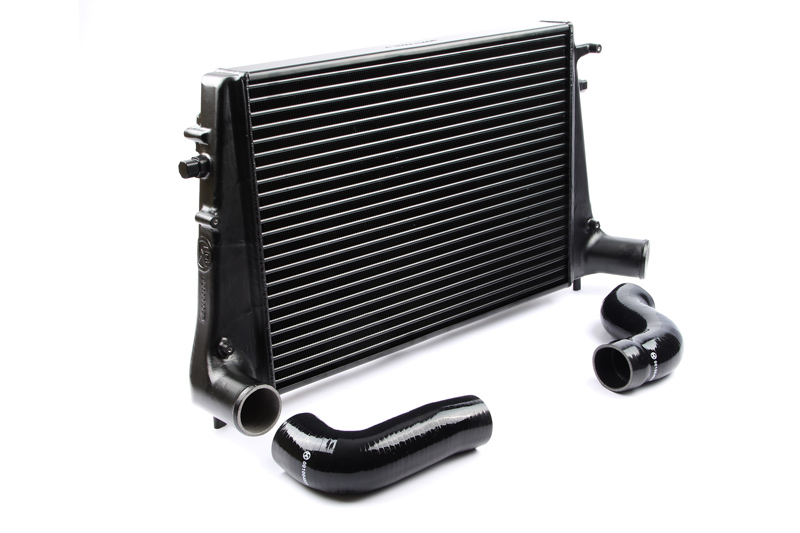

wagner tuning intercooler for vw 2.0 tfsi engines view 2

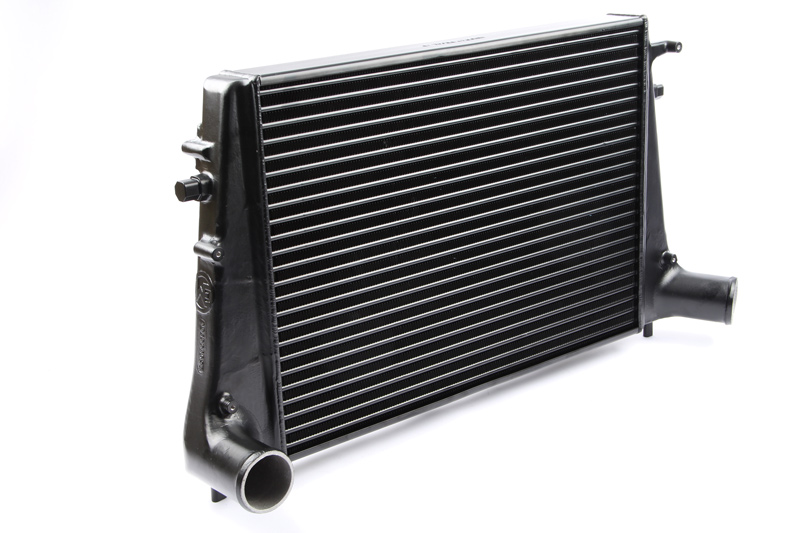

wagner tuning intercooler for vw 2.0 tfsi engines view 3

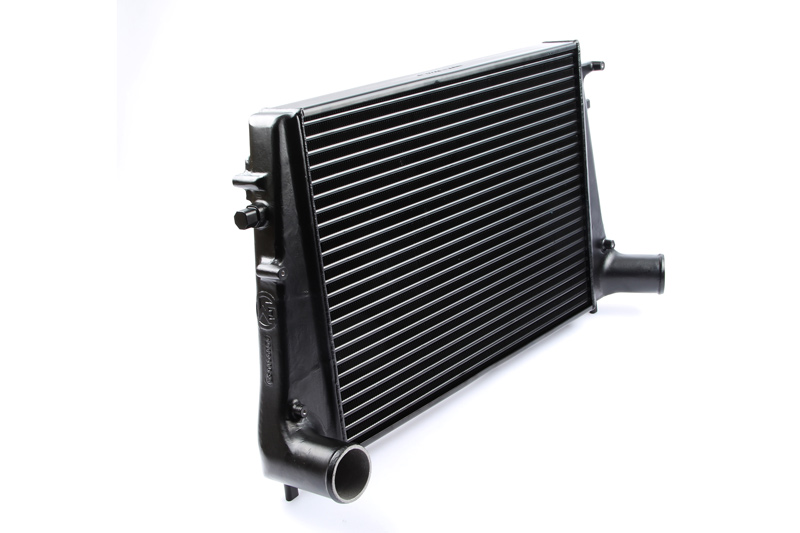

wagner tuning intercooler for vw 2.0 tfsi engines view 4



Interested in VW 2.0 TFSI Intercoolers? Our Modification Experts are standing by online to answer your questions, or call 714-582-3330. ModBargains also offers expert installation and can install this upgrade for your Porsche 996 Turbo. Call today!
