*Wagner Tuning Evo II Performance Intercooler for 2007-13 N54/N55 BMW 135i/1M/335i/Z4 [E82/E90/E92]

$790.00

Quick Overview

This BMW E82/E88 135i, E90/E91/E92/E93 335i, E89 Z4 35i EVO II Intercooler kit from Wagner Tuning is a high-performance redesign of the OEM intercooler system. These bar plate core intercoolers offer a significant improvement over the OEM design, offering 90% more airflow than the OEM intercooler and superior intake charge cooling properties. Note: Evo II models require trimming because it sits 20mm lower than Evo I.

Sku # : wagner-tuning-bmw-n54-n55-evo-iip-intercooler-ng
Item
Shipping
Find BMW N54 N55 EVO Intercoolers at Modbargains. Huge Inventory, Expert Staff Ready To Help

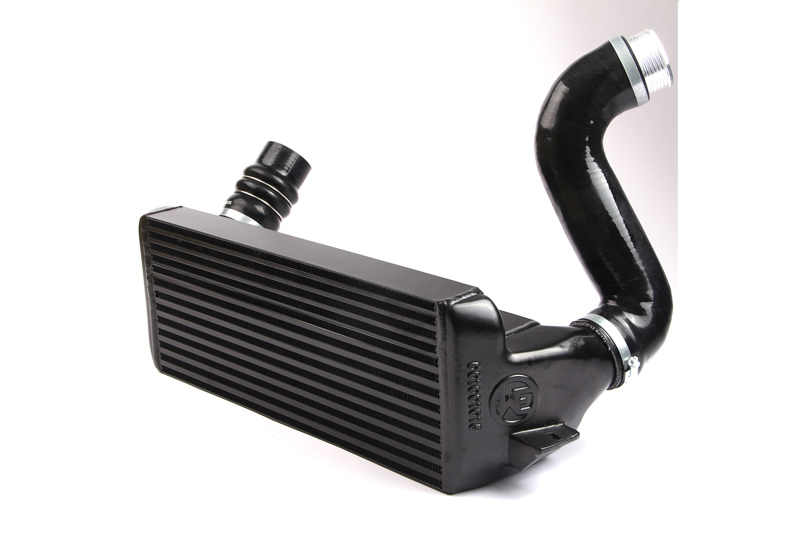

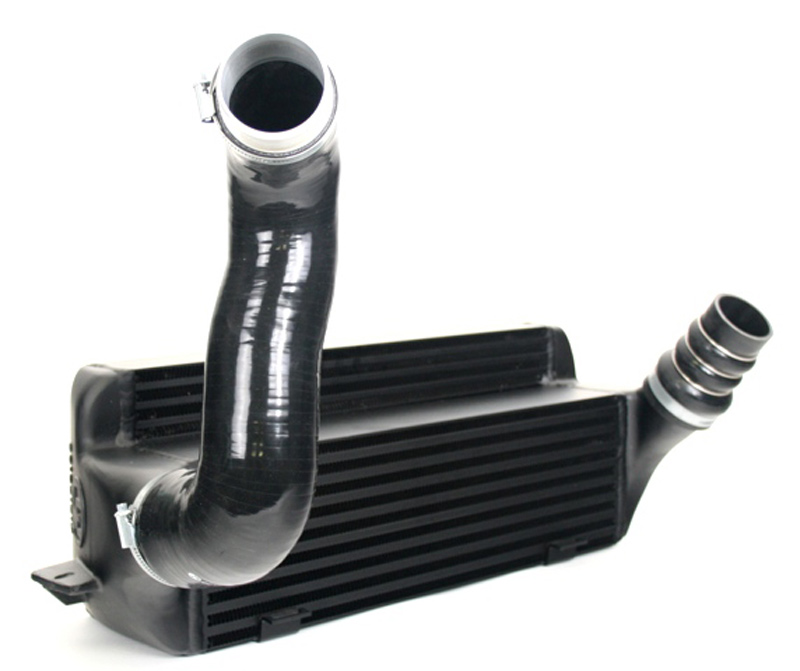

Wagner Tuning BMW N54/N55 (135i/335i/Z4/1M) EVO II Performance Front Mount Intercooler

This BMW E82/E88 135i  & 1M, E90/E91/E92/E93 335i, E89 Z4 35i EVO II Performance Intercooler from Wagner Tuning is a high-performance redesign of the OEM intercooler system. These intercoolers offer a significant improvement over the OEM design, offering 90% more airflow than the OEM intercooler and superior intake charge cooling properties.

Wagner's engineers revised their front mount intercooler with much larger, more efficient intercooler core and improved the end tank design to remove the OEM bottlenecks, resulting in a greater increase in flow and charge cooling properties. When upgrading to a larger intercooler, the larger volume can sometimes cause a loss in manifold pressure (boost), but Wagner Tuning's engineers have tailored the flow of the intercooler to create a design that offers minimal loss of boost pressure.  Manufactured utilizing the highest quality intercooler cores, these intercoolers also feature cast, then CNC-machined aluminum end tanks to ensure reliable high performance air to air intake charge cooling.

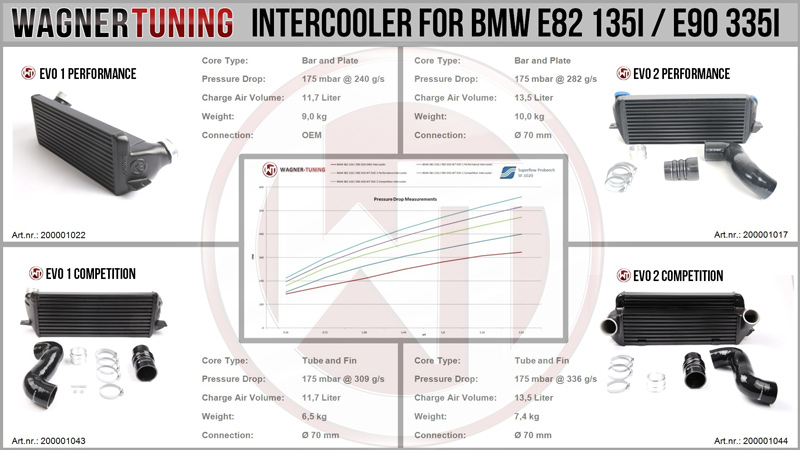

Wagner Tuning BMW N54 EVO I Performance Intercooler Comparison

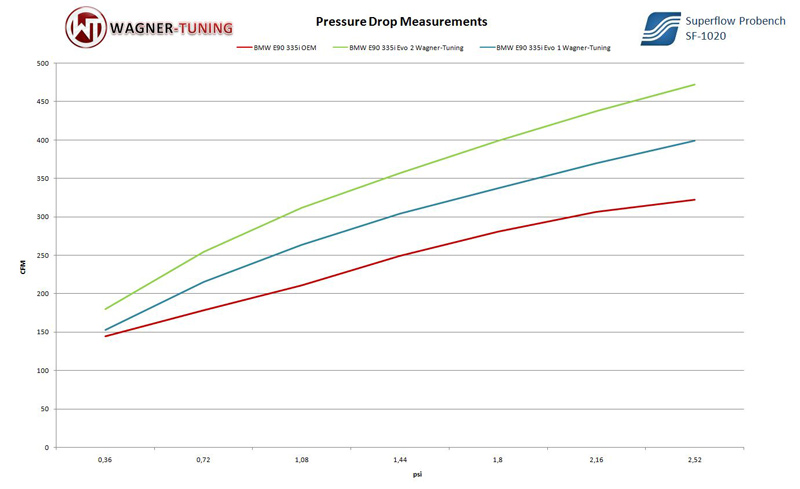

Wagner Tuning BMW N54 EVO I Performance Intercooler Airflow

Designed to conform to the strictest fitment standards, these intercoolers from Wagner Tuning offer OEM-grade fit and finish for straightforward bolt-in installation without the modification sometimes necessary for parts manufactured using less-exacting processes.

Key Features:

  • EVO 2 Intercooler Core: 520 x 210 x 150mm Stepped Core Design (13,572 cm³)
    EVO 1 Intercooler Core: 520mm x 210mm x 130mm Stepped Core Design (11,752 cm³)

    OEM Intercooler Core: 510mm x 130mm x 110mm Core Design (7,293 cm³)
  • Stepped, High Performance Intercooler Core
  • 90% Airflow Increase over OEM
  • Bar Plate Core
  • CAD-Optimized, Minimum-Pressure-Loss-Design
  • CNC-Machined Cast Aluminum End Tanks
  • No Cutting or Bumper Removal Required
  • Stealth Black Finish for that "Sleeper" Look
  • OEM-like Fit For Simple & Straightforward Installation
    *Some adjustment may be necessary for EVO II version to fit in all vehicle applications listed

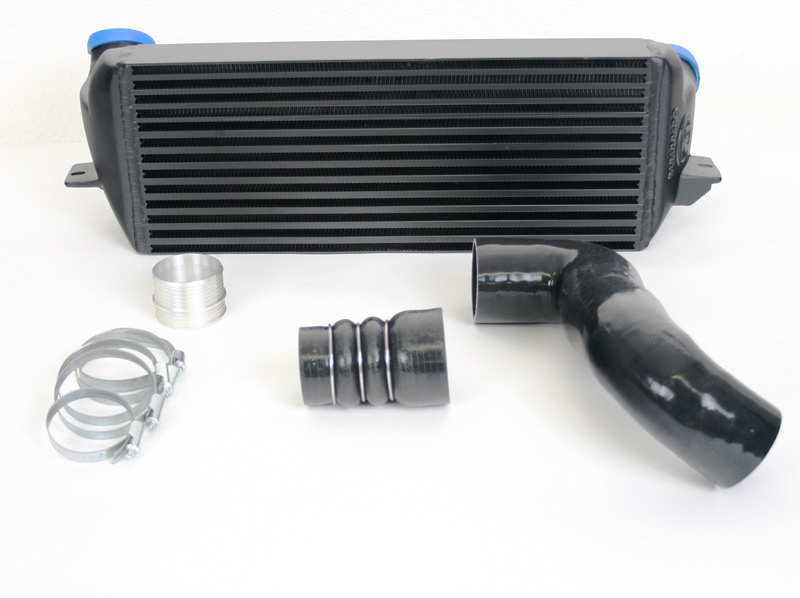

  • Includes [2x] Boost-Rated Silicone Hoses In Flow-Optimized Design & Hardware

Applications:

  • BMW 1M, 135i [E82/E88] (200001017)
  • BMW 335i(x) [E90/91/92/93] (200001017)
  • BMW Z4 [E89] (200001017)





Questions about installing the BMW N54 / N55 EVO II Performance Front Mount Intercooler Kit? Get help from one of our Modification Experts online or by calling 714-582-3330. ModBargains offers expert installation and can install this upgrade for you. Call today!
