*Wagner Tuning Evo I Competition Intercooler for 2007-13 N54/N55 BMW 135i/335i/Z4/1M [E82/E90/E92]

$790.00

Quick Overview

This BMW E82/E88 135i, E90/E91/E92/E93 335i, E89 Z4 35i EVO I Competition Intercooler Kit from Wagner Tuning is a high-performance redesign of the OEM intercooler system, featuring a tube fin core, 70mm inlet/outlet connections, lighter construction than the EVO I performance intercooler and comes with hoses and hardware for a more complete install. These intercoolers offer a significant improvement over the OEM design, offering 85% more surface area than the OEM intercooler and superior intake charge cooling properties.

Sku # : wagner-tuning-bmw-n54-n55-evo-comp-intercooler-ng
Item
Shipping
New Page 8
Wagner Tuning BMW N54/N55 (135i/335i/Z4/1M) EVO I Competition Front Mount Intercooler Kit

This BMW E82/E88 135i, E90/E91/E92/E93 335i, E89 Z4 35i EVO I Competition Intercooler Kit from Wagner Tuning is a high-performance redesign of the OEM intercooler system, features a tube fin core and comes with hoses and hardware for a more complete install. These intercoolers offer a significant improvement over the OEM design, offering 85% more surface area than the OEM intercooler and superior intake charge cooling properties.

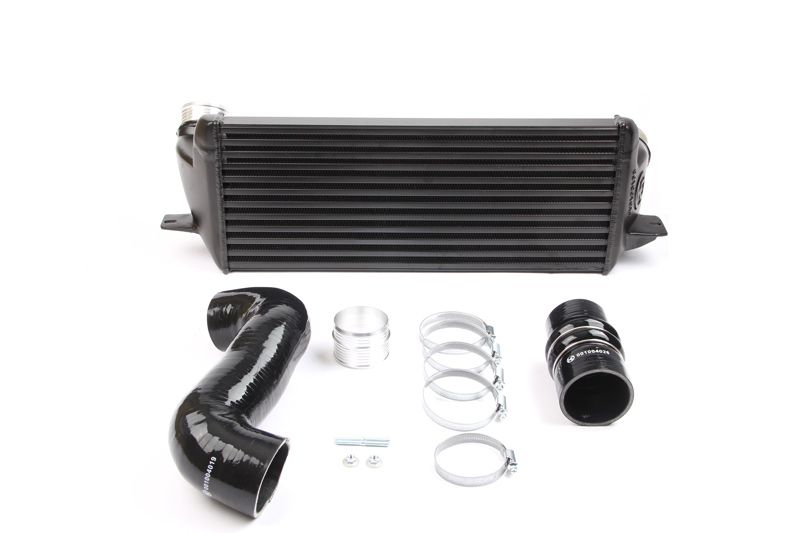

Wagner Tuning BMW N54 N55 Evo I Competition Intercooler Kit Contents

Wagner's engineers revised their front mount intercooler with much larger, more efficient intercooler core and improved the end tank design to remove the OEM bottlenecks, resulting in a greater increase in flow and charge cooling properties. When upgrading to a larger intercooler, the larger volume can sometimes cause a loss in manifold pressure (boost), but Wagner Tuning's engineers have tailored the flow of the intercooler to create a design that offers minimal loss of boost pressure.  Manufactured utilizing the highest quality intercooler cores, these intercoolers also feature cast, then CNC-machined aluminum end tanks to ensure reliable high performance air to air intake charge cooling.

Wagner Tuning BMW N54 EVO I Performance Intercooler Comparison


Wagner Tuning BMW N54 EVO I Performance Intercooler Airflow

Designed to conform to the strictest fitment standards, these intercoolers from Wagner Tuning offer OEM-grade fit and finish for straightforward bolt-in installation without the modification sometimes necessary for parts manufactured using less-exacting processes.

Key Features:

  • EVO 1 Intercooler Core: 520mm x 210mm x 130mm Core Design (11,752 cm³)
    OEM Intercooler Core: 510mm x 130mm x 110mm Core Design (7,293 cm³)
  • 175 mbar @ 309 g/s Pressure Drop (vs 175 mbar @ 240 g/s with EVO I Performance)
  • 70mm Inlet/Outlet (Performance uses OEM size inlet/outlet)
  • Lighter Weight Construction compared to EVO I Performance Intercooler [6.5kg vs 9.0kg]
  • Includes Boost-Rated Silicone Inlet/Outlet Hoses
  • Includes [2x] 12mm Stainless Steel Norma Clamps
  • Tube Fin Core
  • Aluminum IC-Intake Adapter
  • Stepped, High Performance Intercooler Core
  • 85% Surface Area Increase over OEM
  • CAD-Optimized, Minimum-Pressure-Loss-Design
  • CNC-Machined Cast Aluminum End Tanks
  • No Cutting or Bumper Removal Required
  • Stealth Black Finish for that "Sleeper" Look
  • OEM-like Fit For Simple & Straightforward Installation
  • Direct Plug-n-Play Installation Utilizing the OEM intercooler plumbing

Applications:

  • BMW 1M, 135i [E82/E88] (200001043)
  • BMW 335i(x) [E90/91/92/93] (200001043)
  • BMW Z4 [E89] (200001043)

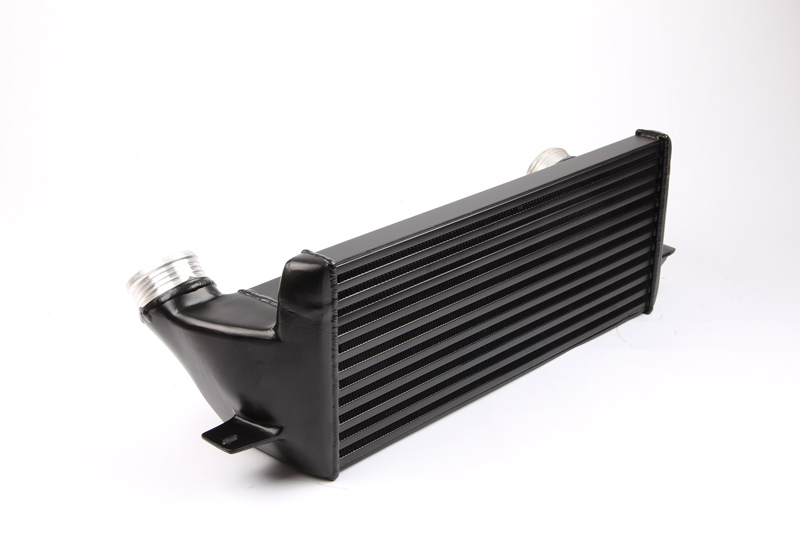

Wagner Tuning BMW N54 N55 Evo I Competition Intercooler View 1

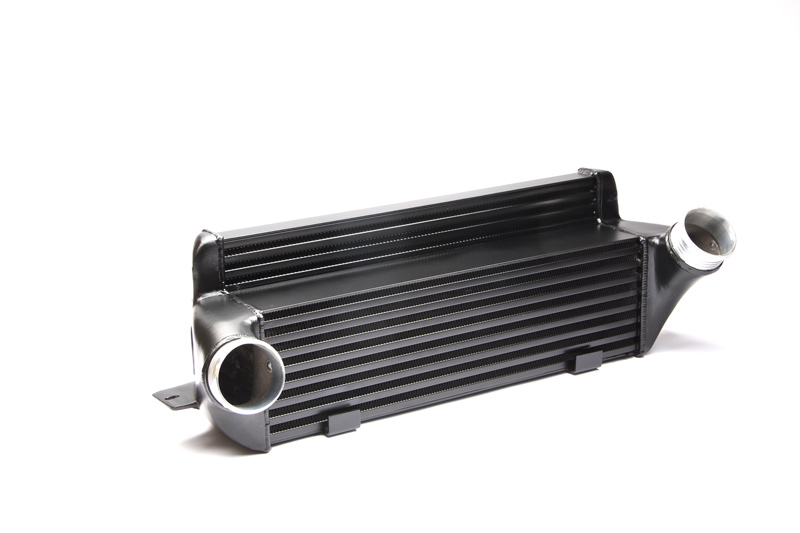

Wagner Tuning BMW N54 N55 Evo I Competition Intercooler View 2

Wagner Tuning BMW N54 N55 Evo I Competition Intercooler View 3





Questions about installing the BMW N54 / N55 EVO I Competition Front Mount Intercooler Kit? Get help from one of our Modification Experts online or by calling 714-582-3330. ModBargains offers expert installation and can install this upgrade for you. Call today!
