Wagner Tuning BMW F20/F30 F22/F23
F30/F31 F32/F33 EVO Competition
Front Mount Intercooler Kit Key Features:
- EVO 1 Intercooler Core: 520mm x 210mm x 130mm Core Design (11,752
cm³)
OEM Intercooler Core: 510mm x 130mm x 110mm Core Design (7,293 cm³)
- High Efficiency Tube Fin Core
- Stepped, High Performance Intercooler Core
- 85% Surface Area Increase over OEM
- CAD-Optimized, Minimum-Pressure-Loss-Design
- CNC-Machined Cast Aluminum End Tanks
- Stealth Black Finish for that "Sleeper" Look
- OEM-like Fit For Simple & Straightforward
Installation
- Direct Plug-n-Play Installation Utilizing the OEM
intercooler plumbing.
Applications:
- BMW M135i [F20/F21] 2012+ (200001046)
- BMW 125i [F20/F21] 2012+ (200001046)
- BMW 220i [F22/F23] 2014+ (200001046)
- BMW M235i [F22/F23] 2014+ (200001046)
- BMW M2 [F87] 2016+ (200001046)
- BMW 320i [F30/F31] 2012+ (200001046)
- BMW 335i(x) [F30/F31] 2012+ (200001046)
- BMW 328i(x) [F30/F31] 2012+ (200001046)
- BMW 420i [F32/F33] 2014+ (200001046)
- BMW 428i [F32/F33] 2014+ (200001046)
- BMW 435i [F32/F33] 2014+ (200001046)

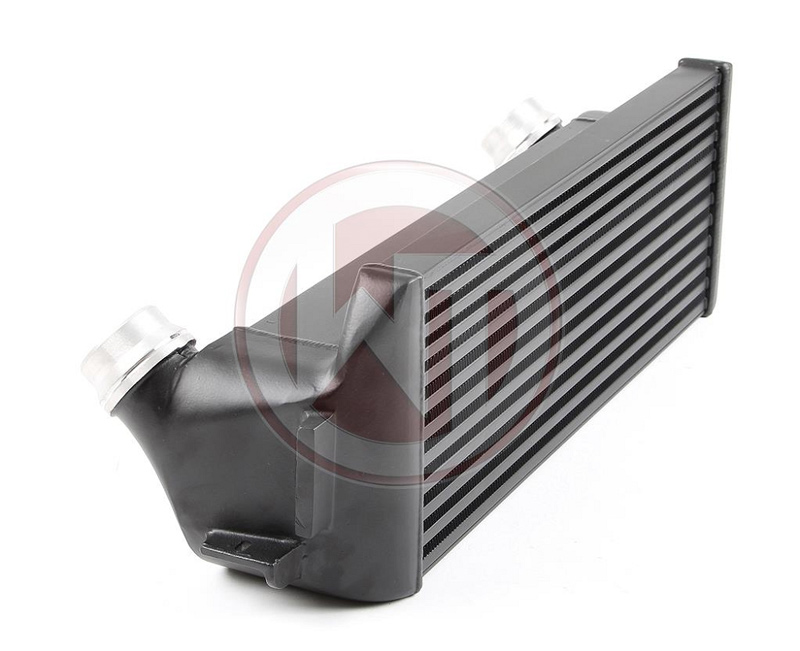

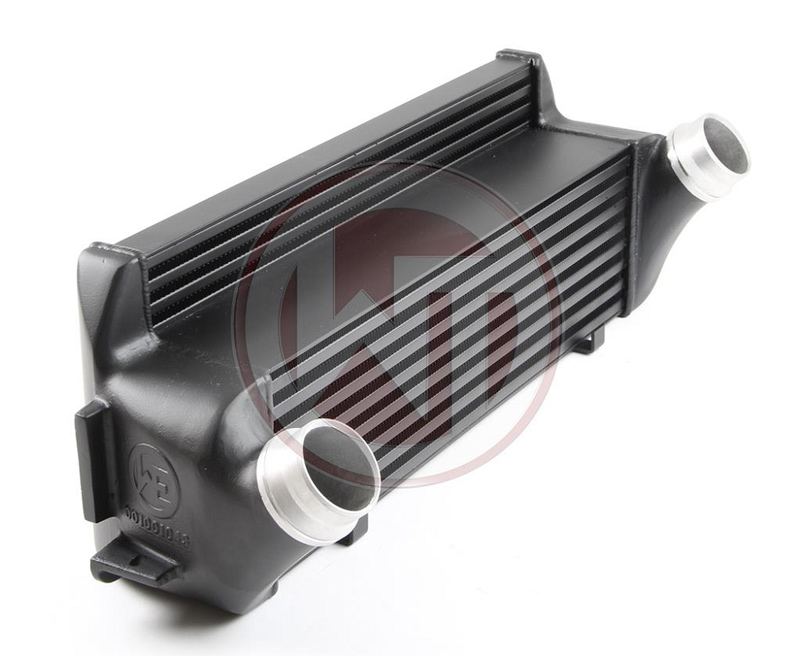

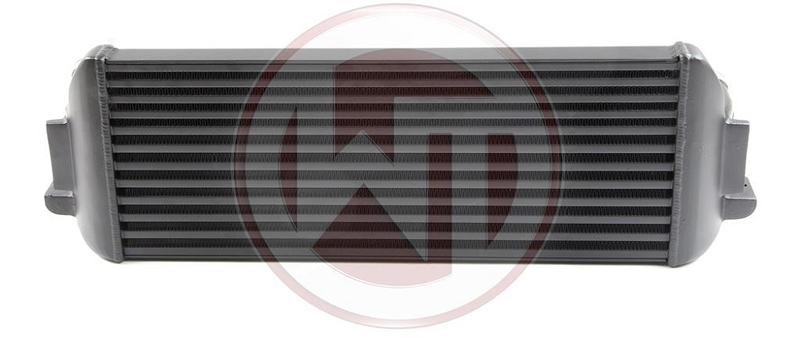

This BMW
F20/F21 & F30/F31 EVO Competition Intercooler kit from Wagner Tuning is a
high-performance redesign of the OEM intercooler system. These
intercoolers offer a significant improvement over the OEM design,
offering 85% more surface area than the OEM intercooler which also
features a tube Fin Intercooler core rather than a bar plate core for
enhanced efficiency.
Wagner's engineers revised their front mount
intercooler with much larger, more efficient intercooler core and
improved the end tank design to remove the OEM bottlenecks,
resulting in a greater increase in flow and charge cooling
properties. When upgrading to a larger intercooler, the larger volume can
sometimes cause a loss in manifold pressure (boost), but Wagner Tuning's
engineers have tailored the flow of the intercooler to create a design
that offers minimal loss
of boost pressure. Manufactured utilizing the highest quality intercooler cores, these intercoolers also feature cast, then CNC-machined
aluminum end tanks to ensure reliable high performance air to air intake
charge cooling.


Designed to conform to the strictest fitment standards, these
intercoolers from Wagner Tuning offer OEM-grade fit and finish for
straightforward bolt-in installation without the modification sometimes
necessary for parts manufactured using less-exacting processes.




Questions about installing the BMW F20/F21, F22/F23, F30/F31 or F32/F33 EVO
Competition Front Mount Intercooler? Get help from one of our Modification
Experts online or by calling 714-582-3330. ModBargains offers
expert installation and can install this upgrade for you. Call today!
|
