Vorshlag Front Caster / Camber Plates: Scion FR-S / Subaru BRZ

$439.00

Quick Overview

Vorshlag Caster and Camber plates for the Scion FRS and Subaru BRZ. #A1-1600-02

Sku # : vorshlag-camber-plates-frs-brz-scion-subaru-cp
Item
Spring Perch
Strut Style
Shipping

Increase Traction and save tire wear from bad alignments with the Camber/Caster Plates from Vorshlag

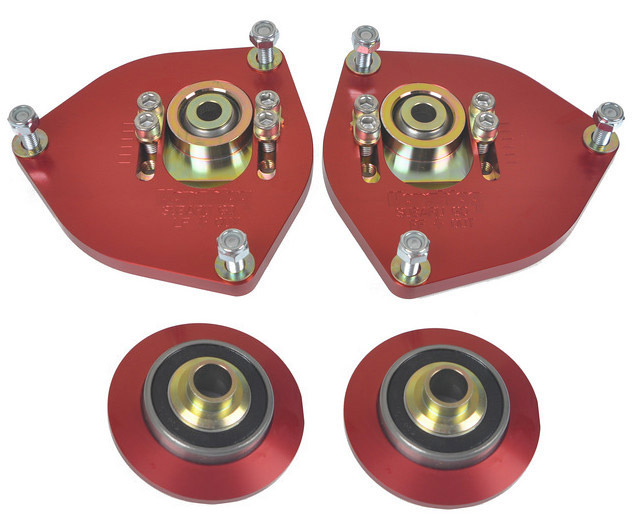

Easily adjust front camber settings track side with Vorshlag front camber plates for the Subaru BRZ/Scion FR-S/Toyota GT86 cars (2013+). Over-sized spherical bearings and alloy steel bearing holders are designed to withstand the rigors of street and track abuse as well as provide minimal stack-up height and maximum suspension travel. All components are plated for maximum corrosion resistance and long life. These are the strongest camber plates made for a Subaru. We have also added +1.0° positive caster into these plates compared to the OEM upper strut position (.450" displacement rearward) when used in this chassis.

In order to properly use Vorshlag camber plates, you must choose Vorshlag upper spring perches that match your strut brand and spring type. These are included with the camber plates and are made to work with 60mm, 2.5", or 2.25" inner diameter (ID) linear coilover springs only. These custom spring perches incorporate a sealed double row axial bearing for extremely low rotational friction and a lifetime of trouble free use, and remove rotational loads from the spherical bearing. Vorshlag camber plates are designed to be compatible with all common strut types. We are currently developing an OEM spring perch application for the BRZ/FR-S/GT86 for use with stock and lowering springs. We will release more information at a later date.

  • Compatible with 2.25", 2.5" and 60mm ID linear coilover springs and all struts.
  • Installs with basic hand tools, no chassis modifications required.
  • Plates are designed to fit the Subaru BRZ/Scion FR-S/Toyota GT86.
  • Camber is easily adjustable at the track from the engine compartment with simple hand tools. No need to reach inside the wheel well with a wrench!
  • Potential negative camber gain is considerable - we were able to get to -3° camber on the front of our Suburu BRZ using our development OEM spring perches. Lowering the ride height with coilovers will allow for even more static negative camber.
  • The design adds 1.0° positive caster.
  • The spherical bearing used in Vorshlag camber plates is the largest used in any Subaru camber plate. The result has much better durability and wear characteristics than the undersized bearings used in some competitors' plates.
  • Designed using .400" aluminum alloy. The high strength of the aluminum allows these to have the minimum stack-up height and maximum suspension bump travel. More than an inch more strut travel than some of our competitors!
  • 100% CNC machined, anodized aluminum alloy construction
  • All components plated for maximum corrosion resistance and long life.
  • Engraved with Vorshlag logo, model, and side/front orientation.
  • The included pair of Vorshlag aluminum upper perches include sealed Vorshlag Radial Bearings for ultra low friction steering resistance, isolating strut shaft rotation from the spherical bearing for long life.



Have any questions about this Vorshlag Camber Plates for FRS/BRZ? Give our Modification Experts a call today at 714-582-3330

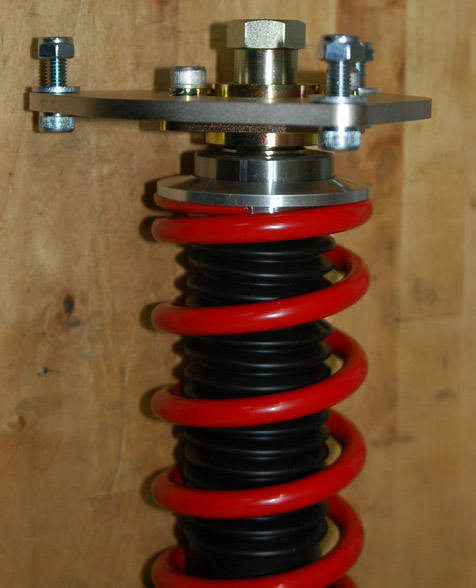

All Vorshlag camber plates are designed to work with our upper spring perches. The Vorshlag perches are made for to fit 2.25" and 60mm, or 2.5"  inner diameter coilover springs and incorporate sealed radial bearings - which remove the spring rotation during suspension travel from the spherical bearing. The perches also incorporate pressed in adapters to fit your strut shaft to our over-sized spherical bearing perfectly. Please note - these plates will not work without the correct Vorshlag upper perches! Please choose your spring size and strut brand/style to get the correct upper spring perches for your set-up.

Certain applications require a components that do cost extra, shown below in the options. Some inverted strut applications have a very short stem and require our Vorshlag Long Reach Top Nuts (M12-1.25 thread) be used in place of the normal nylock M12 nuts. In most cases, non-inverted struts can just re-use the top nuts that came with the struts. We also sell new OEM style nylon locking top nuts if yours are worn out or missing.

NOTE: Vorshlag can build these camber plates to fit virtually any strut available, but we need particular measurements to ensure proper noise and slop free fitment. Please contact us if you have a strut style that is not listed in the drop down menu. With a few measurements we can build your camber plates to fit your strut and offer it as an option for other customers.

Application

Model Year Item Part Number
Scion FRS 2013+ Front Sport Caster / Camber Plates A1-1600-02
Subaru BRZ 2013+ Front Sport Caster / Camber Plates A1-1600-02


Have any questions about this Hotchkis Camber Plates for FRS/BRZ? Give our Modification Experts a call today at 714-582-3330
