|Turbosmart IWGHP Internal Wastegate Actuators
Turbosmart's Internal Wastegate Actuators are quickly becoming one of
the hottest boost control products on the market. For those wanting to
run big boost pressure, without the hassle of fitting custom exhaust
manifolds and external wastegates, Turbosmart introduces the IWGHP -- a
revolutionary High Pressure Internal Wastegate Actuator.
The IWG range offers better turbo response and greater
sensitivity when managing boost than a stock actuator, with the
option for high boost handling capabilities.
What does a Wastegate do? The Wastegate itself is a performance upgrade
for your turbocharger system, but let's be clear, this device itself
doesn't actually make any boost. Imagine a person trying to keep a door
shut, and there's strong wind trying to push the door back open. Once
the wind gets too strong, the door is opened. The wastegate is like the

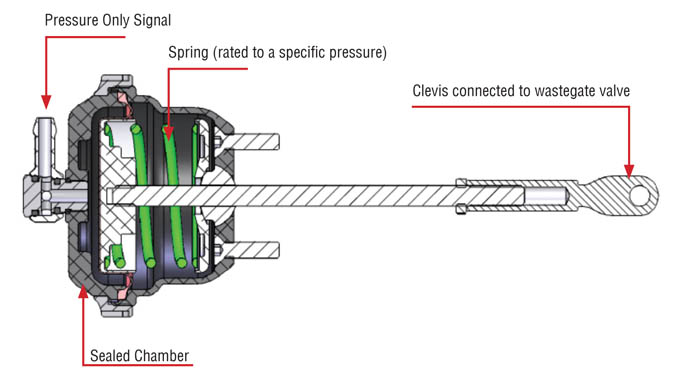

person holding the door in that situation. What the Wastegate does is
hold a valve shut on the turbocharger, keeping the boost trapped in the
system until there's more than the system can handle, and lets the
excess boost escape.
Over time, the spring of the OEM wastegate can wear out, and so
because it is weaker, the force of boost pressure pushes the valve back
open earlier than it should, resulting in a mid-range loss of boost.
Alternately, the wastegate itself is often in situated in poorly
ventilated sections of the engine bay, which can cook the diaphragm of
the wastegate. By upgrading to a wastegate actuator with firm,
dependable springs made from materials designed to cope with the intense
heat of real world turbocharger applications, power will be more
consistent across the board and mid-range power will likely improve.
• Silicone diaphragm with Nomex reinforcement to withstand high
• High grade, billet aluminum construction.
• Stainless steel rods and connecting clevis for corrosion
• Locking Collar design cap allows for quick spring changes.
• Ideal for use with any Turbosmart boost controller.
standard with 35psi springs but 40psi is also available.

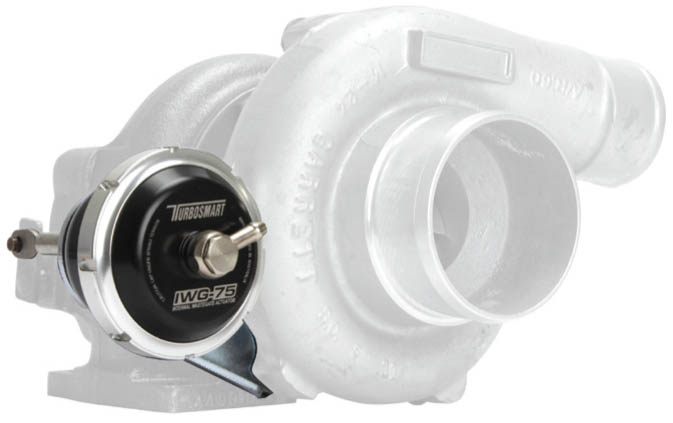

[Image for Illustration Purposes Only, IWG-75
Turbosmart Universal Internal Wastegate Actuator is suitable for most
factory or aftermarket turbos with an internal wastegate. It's ideal for
custom applications requiring only small modifications to the bracket or
