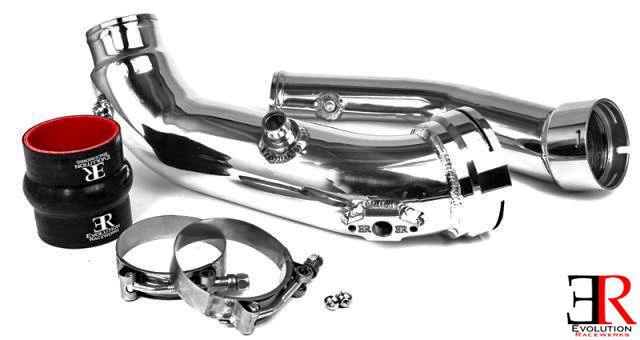

*Evolution Racewerks Charge Pipe for 2012+ N55 BMW 335xi/435xi/235xi [F30/F32/F22] A/T BM-ICP007XIA

$374.95

Quick Overview

The stock chargepipes will break, even under stock boost pressure, so upgrade your stock chargepipes with Evolution Racewerks Chargepipes on your BMW maximum performance and durability! Visit ModBargains.com to get great deals on the parts you want! Contact us at 714-582-3330 to order today!

Sku # : er-chargepipe-n55-f30-32-21-21-xdriveAT-ng
Chargepipe
Charge Pipe Finish
Turbo To Intercooler Charge Pipe?
Replacement TB C-Clip
Shipping

Benefits:

  • Increase throttle response and decreases turbo lag

  • Compatible with factory diverter valves or aftermarket factory style diverter valves

  • Eliminates Boost Leaks from Leaky OEM Chargepipe

  • Throttle body matched 3" piping Offers Superior Flow

  • Precision CNC machined MAP sensor flange ensures leak free connection.

  • Turbulence-Causing Factory diverter valve sound baffle is omitted from this Chargepipe's Design.

  • Outstanding Underhood Appearance with Mirror Polished Finish or Black Anodized

Vehicle Fitment:
Note: Fits all vehicles with the N55 motor

  • BMW F30/F31 335xi 2013-2016

  • BMW F32/F33 435xi 2013-2016

  • BMW F20 M135i 2013-16

  • BMW F22 M235i xDrive 2014-16

Charge Pipe Color Options:

  • Mirror Finished Polished

  • Hard Black Anodized

  • Brushed Aluminum

The OEM diverter valve equipped on the N55 was never designed to hold high boost. Once the car is tuned the stock diverter pipe will begin to leak, losing your boost and your horsepower. Evolution Racewerks has addressed this problem with their new N55 diverter pipe.

Evolution Racewerks has finally released their N55 diverter pipe! ModBargains is proud to be one of the first to offer it to our customers. The Diverter Valve Upgrade Pipe is available in the same 2 finish.  It is available in a mirror polish finish.  It is also available in our Type III Hard Black Anodizing for the guys that want the stealthy, factory look.  An added benefit of the Type III Hard Black Anodizing is that it hardens the aluminum piping and makes it more durable against accidental damage (like dropping the pipe).

On the factory diverter valve pipe features a sound baffle for the diverter valves.  This sound baffle is connected on the side of the factory diverter valve pipe which splits airflow.  This causes turbulence inside the pipe which slows the charge intake air velocity (speed of the air traveling inside the pipe).  By removing this turbulence (by eliminating the factory diverter valve sound baffle), increased throttle response, decrease turbo lag and ultimately higher maximum power potential can be realized.  Our Diverter Valve Pipe Upgrade eliminates this sound baffle and thus eliminating the unnecessary turbulence in the diverter valve pipe, keeping charge intake air velocity at it's maximum.  3" 6061 Aluminum piping was used to properly match the size of the throttle body as well.

NOTE: Meth Bungs are now an available option on the Evolution Racewerks Diverter Pipe.

What are Meth Bungs?

Evolution Racewerks has added 1/8" NPT threaded bung (for methanol or nos injectors) to their charge pipes.This allows for quick and easy installation of methanol/nitrous injectors that are used in methanol injection systems and nitrous systems. Each charge pipe comes with 2 meth bungs. Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol injector. Also, the 1/8" NPT bung can be used as a boost source to connect your boost gauge or other devices to.

Features:

  • Increase throttle response and decreases turbo lag.

  • Compatible with factory diverter valves or aftermarket factory style diverter valves.

  • Lightweight High Grade 6061 Aluminum Piping.

  • Throttle body matched 3" piping.

  • Retains factory style o-ring throttle body lock flange.  Precision CNC machined throttle body flange ensures leak free connection to throttle body.  Quick and easy connection and disconnection to throttle body.  Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace.

  • Precision CNC machined MAP sensor flange ensures leak free connection.

  • Factory diverter valve sound baffle, which causes turbulence in the factory pipe, is removed.

  • Optional Type III Hard Black Anodizing (for stealth and OEM look).  Hard anodizing helps improve durability of intercooler piping.  Resists bent or dented piping.

  • Includes all hardware for complete installation.

  • Limited Lifetime Warranty.

Complete Your Charge Pipe Upgrade with an ER Turbo to Intercooler Charge Pipe (TIC)

Take a look at your factory rubber charge pipe that runs from the turbocharger to your intercooler. Grab it and squeeze the rubber hose and you will be surprised how easily it collapses. Now, imagine how that charge pipe is under boost! Our new turbocharger to intercooler (TIC) charge pipe replaces that rubber hose with a new 6061 aluminum (lightweight) mandrel bent piping.

Take a look at your factory rubber charge pipe that runs from the turbocharger to your intercooler. Grab it and squeeze the rubber hose and you will be surprised how easily it collapses. Now, imagine how that charge pipe is under boost! Our new turbocharger to intercooler (TIC) charge pipe replaces that rubber hose with a new 6061 aluminum (lightweight) mandrel bent piping. Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential. Smooth bends and minimal obstructions are ideal.

Airflow in a pipe tends to travel in the outer edges of the pipe. Hard piping like Evolution Racewerks' TIC charge pipe keeps the inner diameter of the constant and prevents it from ballooning or collapsing. The results? Better throttle response and decreased turbo lag! Pair it with ER's N55 Charge Pipes and have full metal hard piping in your entire intercooler system!

If you have any questions about this Evolution Racewerks Chargepipe please give us a call at 714-582-3330
