*Evolution Racewerks Charge Pipes for S55 2014+ BMW M3 & M4 [F80/F82] BM-ICP015

$659.95

Quick Overview

Now Available: M3/M4 F80/F82 Charge pipes! Evolution Racewerks Charge Pipes for S55 2014+ BMW M3 & M4 [F80/F82] BM-ICP015

Sku # : er-chargepipe-f80-m3-f82-m4-cp
Charge Pipe
Shipping
Evolution Racewerks Chargepipes for S55 2014+ BMW M3 & M4 [F80/F82/F83]
ER Chargepipes for 2014+ BMW M3 and M4 [F80/F82]

Benefits:

  • Increase throttle response and decreases turbo lag
  • Finished in Polished or Brushed Aluminum to Sex Up Your Engine Bay
  • Replaces the factory soft plastic charge pipe that is prone to cracking under high boost
  • Retains factory style o-ring turbocharger outlet flange
  • Plug and play installation
  • Charge Pipe features beaded ends and high quality smooth band hose clamps to prevent intercooler piping from coming off from boost
Applications:
  • 2014+ F80 BMW M3
  • 2014+ F82 BMW M4

Evolution Racewerks Charge Pipes for S55 2014+ BMW M3 & M4 [F80/F82] BM-ICP015

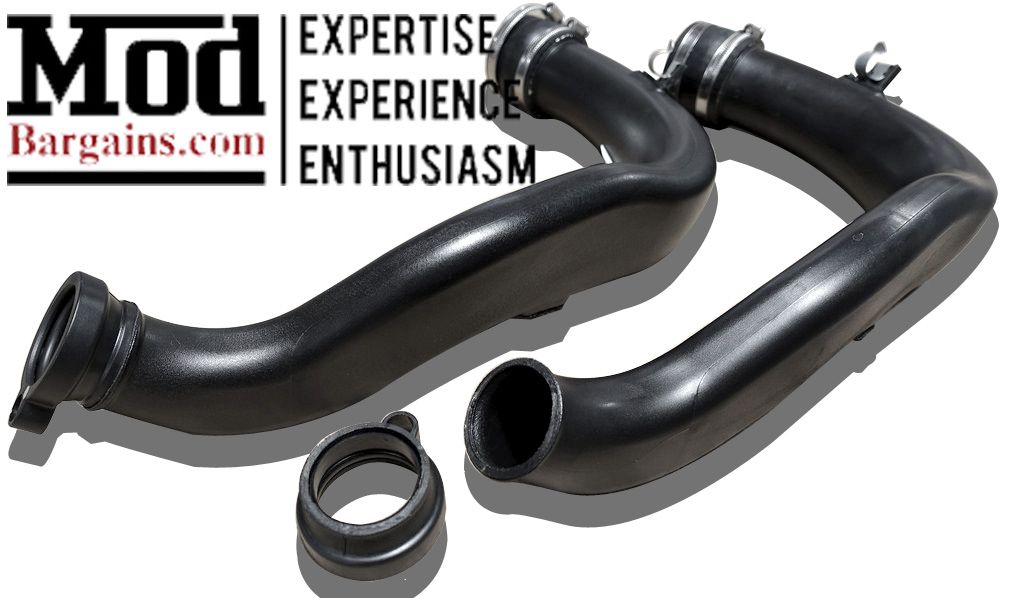

DON'T LET BROKEN CHARGEPIPES HAPPEN TO YOU!

Have you turned up the boost with a tune only to have your $600.00 factory charge pipe explode and break apart?

You are not alone, as this is a common problem for many enthusiasts. Since the factory charge pipe is made out of plastic and was not designed to handle the higher boost levels, of course, it's going to fail when you subject it to higher boost. For a while, there was nothing that could be done.

Well, fear not! The solution is here! Replacing the factory chargepipe with a higher flowing, stronger aluminum charge pipe not only eliminates the potential for failure, but also significantly improves response.

Made 100% of 6061 high grade aluminum, this will never happen again (backed by Evolution Racewerks' Limited Lifetime Warranty)!

NOTICEThis product is intended for OFF ROAD USE ONLY. Not legal for use on pollution controlled vechiles upon public highways.   THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA.  THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHILES IN THE STATE OF CALIFORNIA. This does not affect any international customers.

Features:
  • Available In Black, Brushed and Polished Finishes
  • Lightweight High Grade 6061 Aluminum Piping
  • Retains factory style o-ring turbocharger outlet flange
  • Precision CNC machined flange ensures leak free connection to the turbocharger
  • Quick and easy connection and disconnection to turbocharger
  • Plug and play installation
  • Charge Pipe features beaded ends and high quality smooth band hose clamps to prevent intercooler piping from coming off from boost
  • Silicone Hump Hose included
  • Includes all hardware for complete installation
  • Limited Lifetime Warranty
Applications:
  • 2014+ F80 BMW M3
  • 2014+ F82 BMW M4

*Note - YES, this is an M4, it swapped fenders with a 435i when they fitted the widebody, hence the 435i fenders but this IS an M4







Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential. Smooth bends and minimal obstructions are ideal. Evolution Racewerks used 6061 aluminum (lightweight) mandrel bent piping to ensure smooth transitions. The factory charge pipe starts off at 1.75" at the factory turbocharger outlet. It starts out round but quickly flattens into a rectangular shape before turning round again. It does not increase to 2.25" until near the intercooler assembly (intercooler assembly has 2.25" inlets).

These constant changes in shape and size with the factory charge pipe causes turbulence (restriction) and in turn, slows down intake air speeds. Slower intake air speeds means reduced throttle response and more turbocharger lag. Evolution Racewerks' new charge pipe starts off right away at a larger 2.25" and maintains a smooth round shape all the way to the intercooler assembly. The results are improved throttle response and faster boost spool up!

1/8" NPT Bungs (For Methanol or Nitrous Injectors):

With the popularity of methanol injection systems and nitrous systems, Evolution Racewerks' charge pipe come with two 1/8" NPT threaded bung (for methanol or nos injectors) welded to Evolution Racewerks' charge pipe. There is one bung per pipe. This allows quick and easy installation of methanol/nitrous injectors that are used in methanol injection systems and nitrous systems. Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol injector. This is perfect for those who do not have the Methanol Injection yet but plan to do so in the future.

Also, the 1/8" NPT bung can be used as a boost source if you do not run methanol injection. Perfect place to connect your boost gauge or other devices to. The N55 engine does not have a pressurize hose or fitting from the factory that you can easily tap into. Now you do!

Optional - Evolution Racewerks can custom make Evolution Racewerks' charge pipes with more methanol bungs if needed. Please specify when ordering if you want more bungs.

Note - For customers who have the Aquamist Methanol Injection Kit, Aquamist injectors use a 8mmx0.75 thread pitch instead of the 1/8" NPT standard that every other brand uses. If you have an Aquamist Methanol Kit, no worries! Evolution Racewerks have bungs made specifically for the Aquamist. Specify below if you need Aquamist bungs. Since this affects a very low amount of people, they will be custom made for you and not be regularly stocked. Also, Evolution Racewerks does not have plugs for these bungs. You will have to already have the Aquamist kit.

BMW_F82_M4_LTMW_Widebody_KWV3_ER_Brembos_Injen_Intake_-10

If you have any questions about this Evolution Racewerks M3 / M4 S55 Chargepipe please give us a call at 714-582-3330
