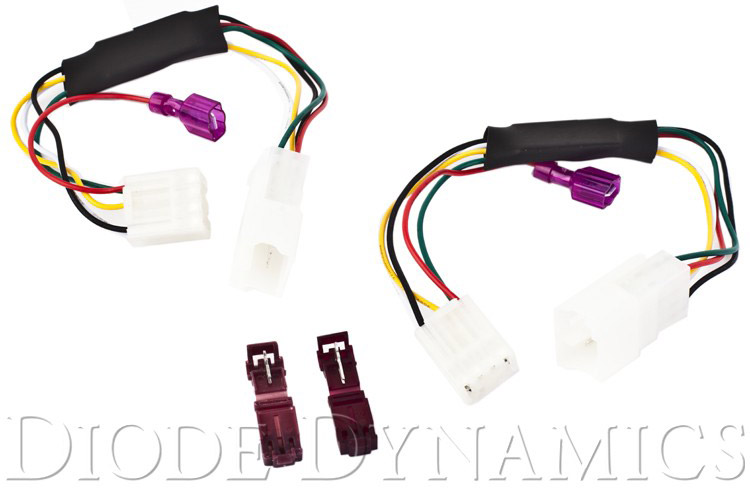

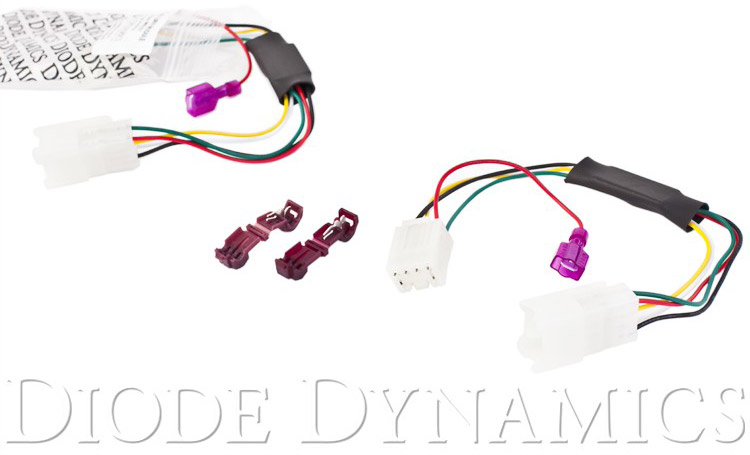

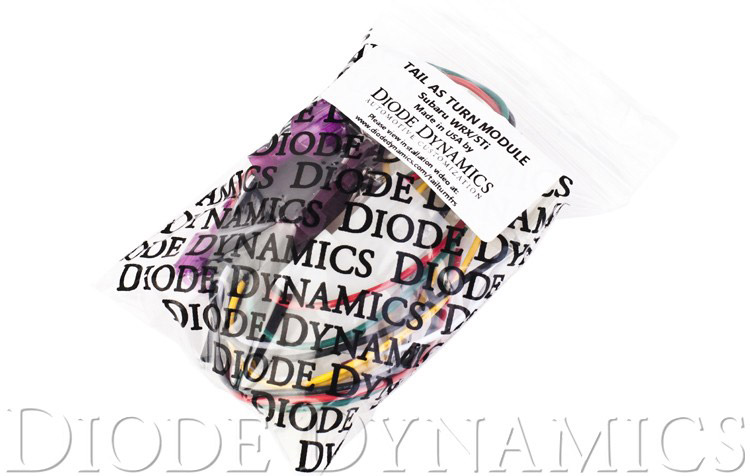

The Diode Dynamics Tail-as-Turn for the
This kit will make your LED tail light also function as the turn signal
on your 2015+ Subaru WRX or STi. By eliminating the factory incandescent
turn signal bulb, and instead operating it through your LED tail light,
you will gain a much more modern appearance.
Using OEM plug-and-play tail light connectors, the base kit is 100%
plug-and-play, with no wiring required. You don't even have to remove
your tail lights!
This product was designed and fully manufactured by Diode Dynamics, in
St. Louis, Missouri. It is fully made in USA.
note: since you will
be eliminating your turn signal with this mod, your vehicle will think
the turn signal bulb is out. To restore normal flashing speed, you will
need to change your turn signal flasher module, which is the part that
controls flashing speed. The installation is simple- please
see our video here. If you already have an LED flasher module, you
will not need another one.
This product is designed to be used with Diode Dynamics products. Use of
non Diode Dynamics products may
result in improper function.
If you wish, you can also convert the old turn signal socket to an extra
high-mounted backup light! Each kit comes with the wires to accomplish
this (see video for details) but you will need new white LED bulbs. You
must use LEDs, not standard bulbs, because you will be drawing power
from the backup light circuit.
BACKUP LIGHT OPTIONS:
Factory backup lights: 250 lumens
SMD27: 205 lumens. SMD
LEDs arranged radially.
HP11: 310 lumens. LED
panels in an aluminum housing.
XP80: 510 lumens. High-power
chips in an aluminum housing, designed for maximum output.
