BMR Handling Performance Pack Stage II for
2007-14 Ford Mustang + GT500
car not only has more curb appeal but, when done properly, can have a
significant handling advantage as well.
What most people don't realize is that just installing a set of
lowering springs without addressing other components can actually have a
detrimental effect on handling, acceleration traction, and ride quality.
A step above BMR's Stage I Package, this package also address body roll
and chassis rigidity but also includes rear suspension components to
keep the axle well behaved for reduced wheelhop and improved traction
and proper suspension geometry.

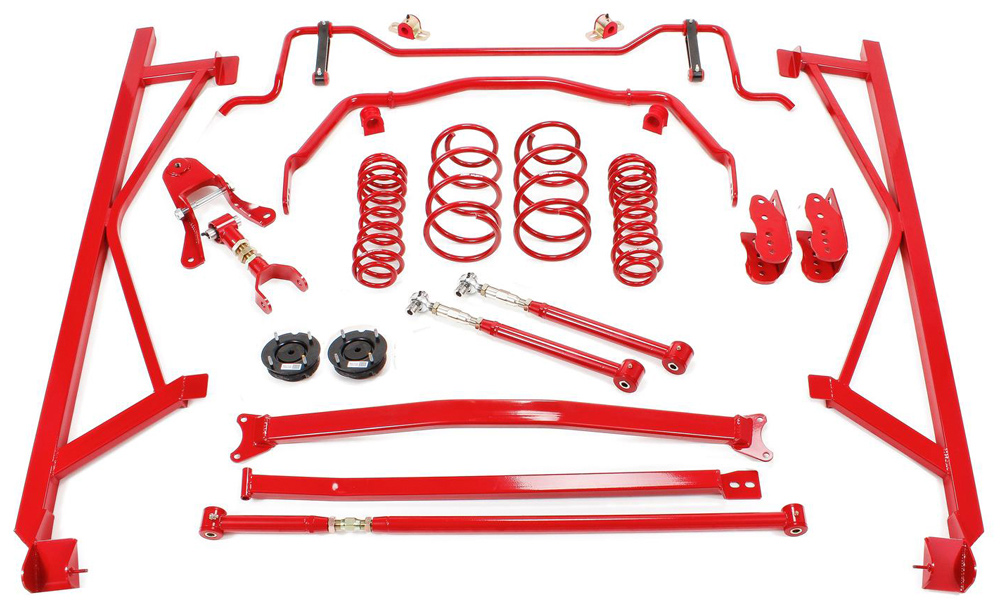

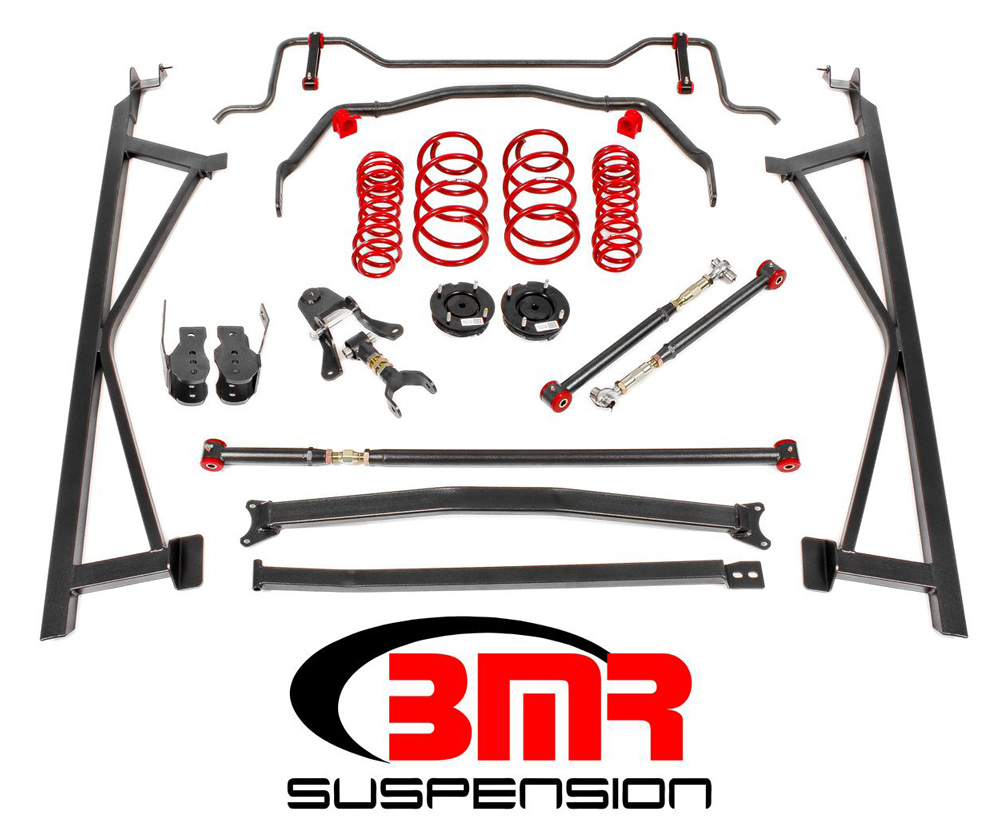

Package includes: Front Swaybar (SB022), Rear Swaybar (SB023), "On-Car"
Adjustable Panhard Rod (PHR006), Upper Panhard Rod Support (PHR007),
Control Arm Relocation Brackets (CAB005), Upper Strut Mounts Camber
bolts (M18183C), Boxed Subframe Connectors (SFC011), Strut Tower Brace
(STB011), Lower Control Arms (TCA021), Upper Control Arm Mount (UCM001),
Upper Control Arm (UTCA020), and Lowering Springs (SP009).
Fits V6 & V8 models and GT500.
Front Swaybar (SB022), Rear Swaybar (SB023), GT500 Upper Strut Mounts
(M-181832-C), Lowering Springs (SP009), "On-Car" Adjustable Panhard Rod
(PHR006), Upper Panhard Rod Support (PHR007), and Control Arm Relocation
Front Swaybar (SB022), Rear Swaybar (SB023)
"On-Car" Adjustable Panhard Rod (PHR006)
Upper Panhard Rod Support (PHR007)
Control Arm Relocation Brackets (CAB005)
Upper Strut Mounts Camber bolts (M18183C)
Boxed Subframe Connectors (SFC011)
Strut Tower Brace (STB011)
Lower Control Arms (TCA021)
Upper Control Arm Mount (UCM001)
Upper Control Arm (UTCA020)
Lowering Springs (1.5" Drop)
Lowering springs - BMR lowering springs are cold wound from high tensile
strength chrome-silicon-vanadium to provide the longest lasting, most
consistent rate possible. Specifically engineered around OE specs to
maintain OE ride quality.
Adjustable Panhard Rod - Since the S197 Mustang is equipped with a
panhard rod to locate the rear end in the chassis, altering ride height
can shift the rearend to the drivers' side up to 3/8". This not only
effects alignment but can create tire clearance issues as well. To
properly re-center the rearend, an adjustable panhard rod is necessary.
Equipped with grease fluted high durometer polyurethane bushings.
Control Arm Relocation Brackets - Lowering a Mustang changes the rear
control arm angles, altering the vehicles "instant center" location.
This instant center is the virtual lift point of the suspension and is
responsible for initiating weight transfer upon acceleration. Relocating
the control arm mounts on the rearend re-gains and improves upon the
When performance and looks are a must, rely on BMR Suspension! All of
the great upgrades included in this package are proudly made in the
This BMR Suspension upgrade package is available in your choice of red
powdercoat or black hammertone finish.
