BMR Suspension Front End Package for 2007-09 Ford Mustang GT500


Quick Overview

Enhance your handling performance and increase traction with a BMR Suspension Level III Rear Control Arm kit. Designed for 2005-14 Mustang models, this kit includes Lower Control Arms, Adjustable Upper Control Arms, Upper Control Arm Mounts and Bolt On Control Arm Relocation Brackets for a complete rear end upgrade.

Sku # : BMR-Suspension-GT500-Front-End-Pack-nG
Specify Color
BMR Suspension Upgrades available at ModBargains.com!
BMR Suspension Front End Package 2007-09 Mustang GT500
Package Includes:
  • AA019 - A-arms, lower, adjustable, delrin/rod end, 18mm std ht ball joint
  • KM010 - K-member, standard motor mounts, standard rack mounts


  • Ideal for Drag Race Applications
  • Provides additional camber adjustment over OE arms
  • Lower weight than OE
  • Heavy Duty QA1 XR series rod ends with stainless spacers
  • Greasable rear Delrin bushings
  • OE-sourced high quality ball joints already installed
  • Works on OE or BMR Tubular K-members
  • Designed for street performance, drag race, and road race applications
  • Durable powdercoat finish
  • Proudly designed & Manufactured in the U.S.A.



Ford did a great job designing the '05 Mustang. Everything comes apart so easily, it almost seems like it was designed by racers. To some, a tubular K-member may seem like a complicated and difficult installation, however in the '05 Mustang it can be done in 2 hours with hand tools!

BMR's tubular K-member uses an integrated mount system, saving up to 5 lbs. over the competitions' designs. The OE K-member with motor mounts weighs 44 lbs. while BMR's integrated design weighs only 24 lbs., a 20 lb. weight reduction. Designed to be used with BMR or factory A-arms and spindles. Fits V6 and V8 models.

BMR also answers your requests with specialized versions of BMR's K-members. We make K-members for manual rack conversions, lowered motor mounts for more supercharger clearance, conversion K-members for traditional Windsor motor transplants, etc.

Improve handling response and reduce weight in your 2005-2009 S197 Mustang with a set of Tubular A-arms from BMR Suspension. The BMR Tubular A-arms are constructed from heavy duty 1.25” DOM tubing and feature laser cut, double-gusseted reinforcement plates. The Adjustable A-arms (AA019) include a combination of heavy duty XR series 3/4" rod ends and fluted, greasable, Delrin bushings. The result is a high quality tubular A-arm that eliminates bushing deflection, provides additional camber adjustment, and reduces unsprung weight by up to 11 lbs. Installation time is only 3 hours. Available in black hammertone or red powdercoat.

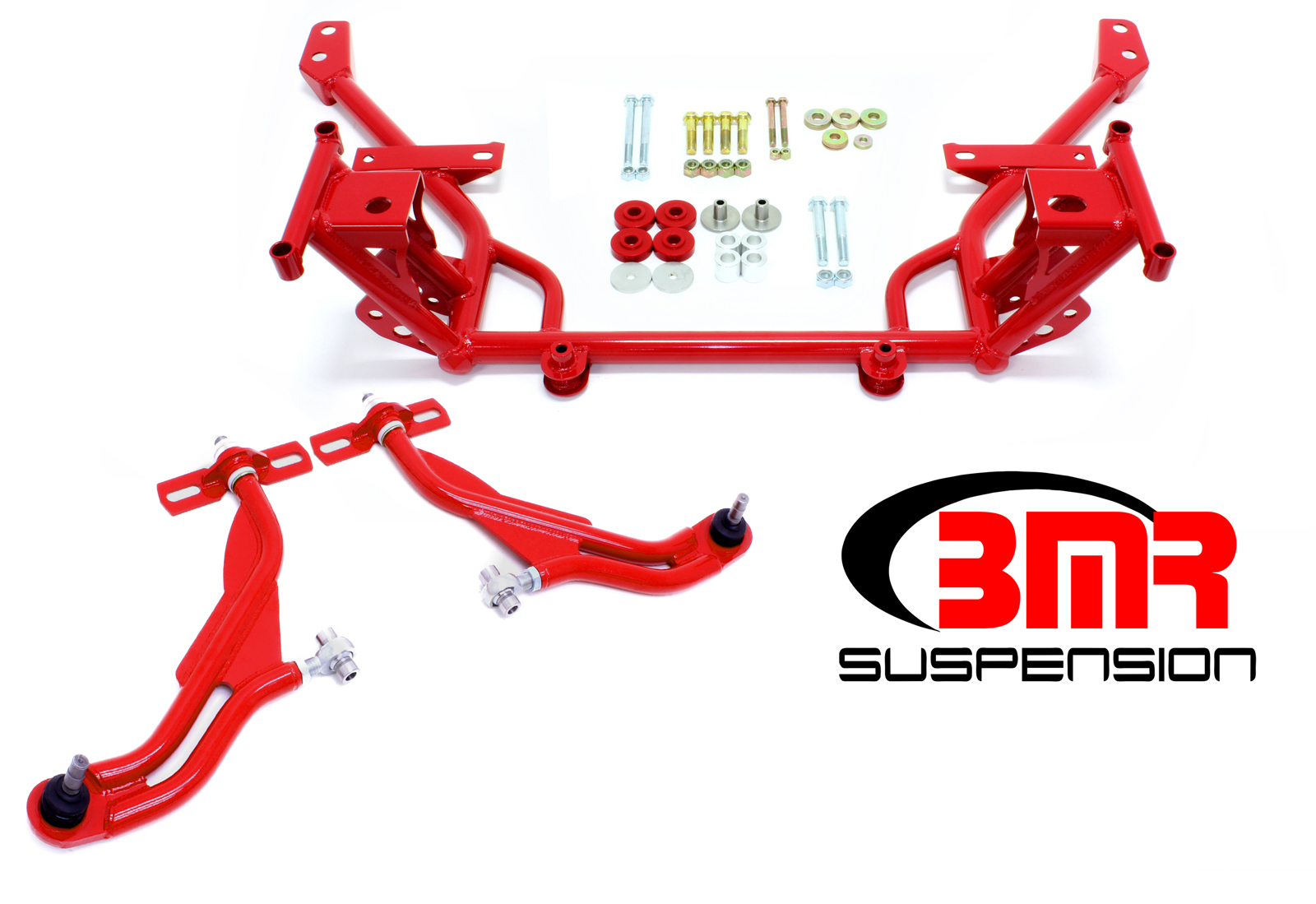

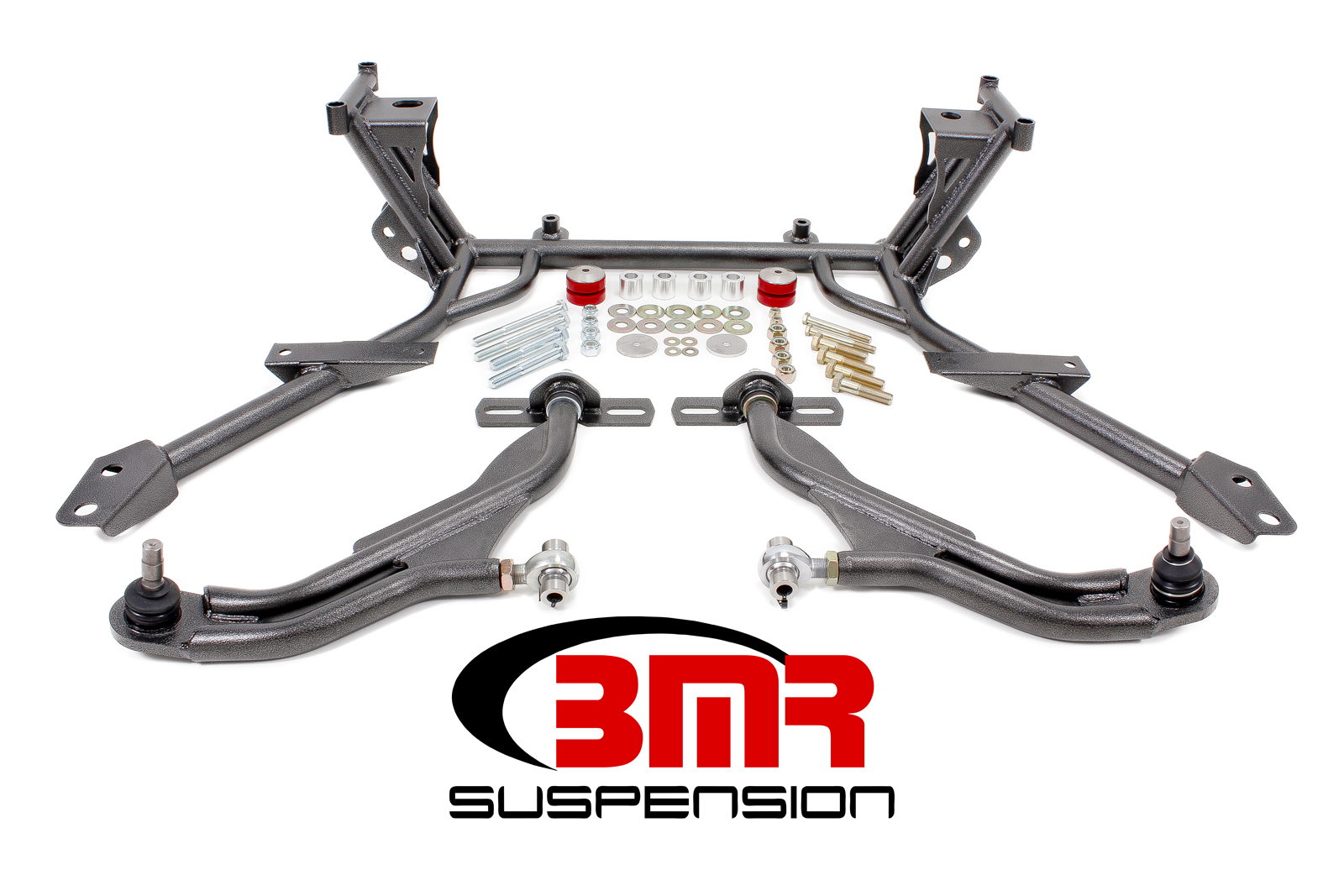

This BMR Suspension upgrade is available in your choice of red powdercoat or black hammertone finish.

Interested in ordering some BMR Suspension Upgrades for your Mustang?  Call ModBargains at 714-582-3330 to make an order today!
