BMR Suspension Upgrades available at ModBargains.com!
BMR Suspension Level 2 Rear Control Arm Package 2005-14 Mustang
Package Includes:
  • Rear Upper Control Arms, Boxed (fixed) w/ Poly Bushings
  • Rear Lower Control Arms DOM (fixed) w/ Poly Bushings
  • Upper Control Arm Mount


Features:

  • Ideal for Drag Race Applications
  • Strengthened Center Link
  • 3-bolt mount for 2011 and newer electric rack and pinion steering
  •  Fits all S197 Mustangs (2005-2014)
  • Designed to the factory length
  • High-durometer internally fluted polyurethane greasable bushings
  • TIG-welded 1x2-inch boxed steel tubing
  • Dramatically reduces control arms flex
  • Greatly reduces bushing deflection
  • Improved Performance with acceptable NVH levels
  • Designed for street performance, drag race, and road race applications
  • Durable powdercoat finish
  • 1-2 hour installation time
  • Proudly designed & Manufactured in the U.S.A.

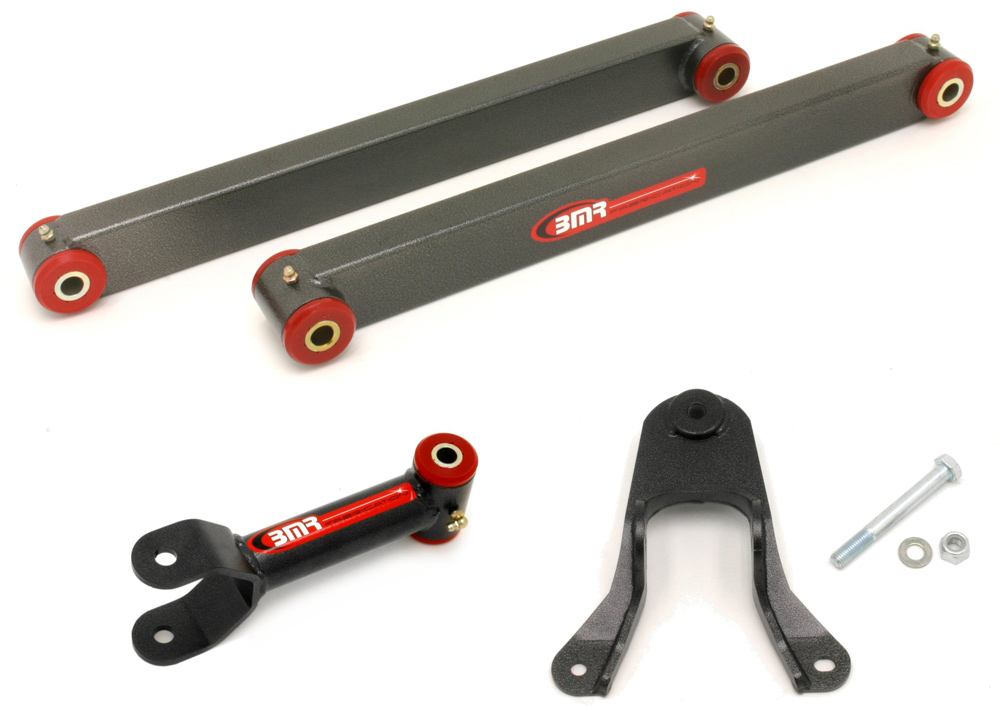

CAP002H




Launching harder, reducing wheel hop, and adding cornering consistency to your 2005-2014 Mustang is easy with lower control arms from BMR Suspension. The OEM stamped steel control arms with soft rubber bushings deflect under load, causing them to absorb power rather than transfer it to the tires. BMR’s polyurethane, non-adjustable tubular control arms for S197 Mustangs are TIG-welded using heavy-duty 1x2-inch boxed steel tubing, creating a strong control arm that greatly improves performance.


BMR Suspension designed their Rear Control Arms to work well in street performance, drag race and road race applications. The stock control arms flex under cornering loads, giving you inconsistent handling characteristics, creating an unpredictable car on the track. The flexible OE control arms, coupled with soft bushings that have massive amounts of deflection, and you’re left with poor performance. Featuring Greasable, 95-durometer bushings, these offer a solid, more responsive feel than the stock rubber bushings.

BMR’s bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.


The BMR part's heavy-duty construction eliminates control arm flex, giving you much improved repeatability on the street, starting line, or in the corners. BMR’s polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. The bushings easily handle the high compression loads of hard launches and hard acceleration, yet offer plenty of articulation for great handling. These are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality.

When performance is a must, rely on BMR Suspension!

The single upper control arm is responsible for maintaining pinion angle and preventing axle counter-rotation - this ""3 link"" style suspension is ideal for autocross and road race applications as it allows the most articulation possible with a solid axle.

For drag racing, however, the single, centered link becomes a weak point as the arm is only one inch thick in the middle and made from light gauge, stamped steel. Our upper control arm is made from 1 5/8"" .120 wall DOM tube and is MIG welded.

The final part of this Rear Control Arm upgrade package is BMR's Upper Control Arm Mount. This upgrade is a direct replacement for the OE piece and requires no drilling or welding to install. The last generation Fox body Mustangs had upper control arm mounts incorporated into the frame and also had two upper control arms sharing the load, but drag racers were finding that they kept ripping the mounts off of the frame when racing. The solution for those cars was to weld reinforcement plates onto the frame, but this new Mustang platform only has one upper control arm and the mount is only bolted into place. The BMR Upper Control Arm mount is much stronger than the OEM component - this upper mount is made from heavy duty 1/4"" plate and can be either bolted or welded into place and features dual control arm mounting points for changing instant center.

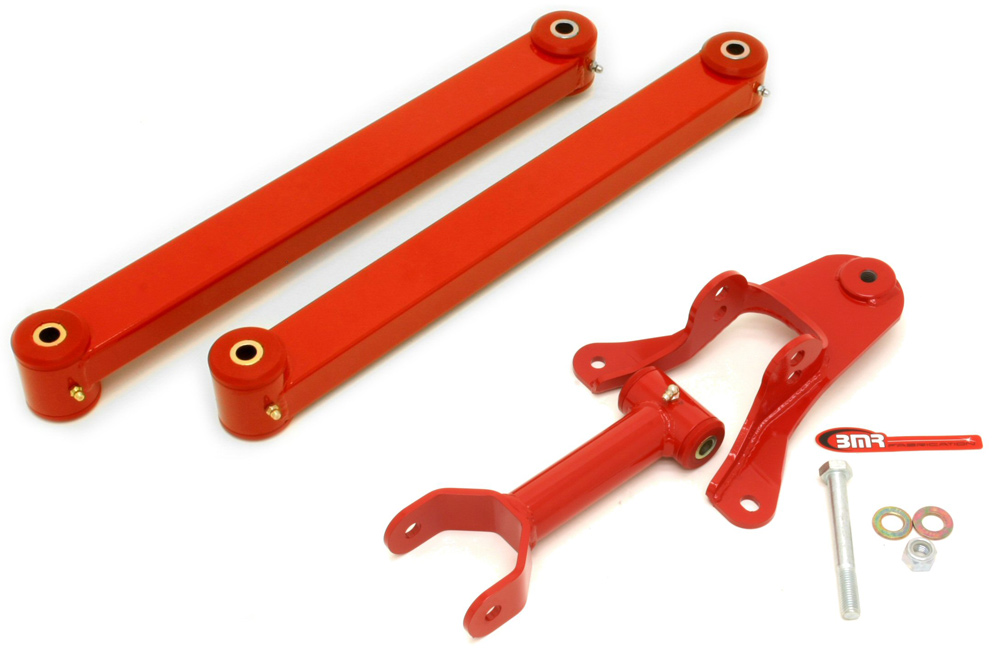

This BMR Suspension upgrade is available in your choice of red powdercoat or black hammertone finish.


Interested in ordering some BMR Suspension Upgrades for your Mustang?  Call ModBargains at 714-582-3330 to make an order today!
