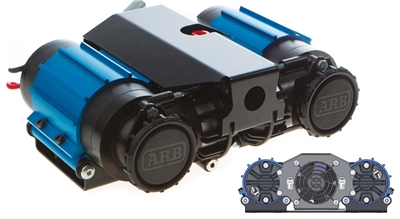

ARB On-Board Compressor (Hi-Perf 12V) For Jeep Wrangler


Quick Overview

ARB's new CKMTA12 and CKMTA24 twin on-board compressor kits were designed offer compact sized yet high-volume air compressor to suit the high volume airflow needs of most air powered tools, and also to power the actuation and control needs of an ARB Air Locker diff, and the harsh and demanding environment of the Jeep Enthusiast.

Sku # : ARB_OnBoard_Compressor_12v_ng
New Page 1
JEEP JK/JKU 2007-14

ARB's new CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker, and the harsh and demanding environment of the ARB Air Locker user.


Pneumatic supply and electrical control for ARB Air Locker(s). (Air Locker Manifold Kit #171503 required)

Rapid inflation of small, medium and large tires.

Air tools rated up to 85LPM [3CFM] @ 6Bar [90PSI] continuous supply.

Air tools rated higher than 85LPM [3CFM] @ 6Bar [90PSI] using an optional air tank suitable to the run time requirements.

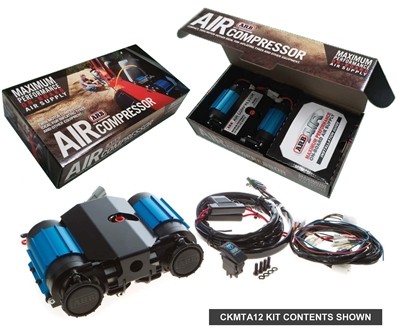

Kit Includes:
Fully assembled and tested air compressor (12V or 24V)

Complete wiring loom w/ Air Locker solenoid plug-in terminals

Automotive OEM quality compressor isolating switch

2 x relocatable splash resistant air filters with washable high-flow sintered bronze filter cartridges.

Mounting bolts and washers

Comprehensive photo illustrated installation guide

Available in 12V (CKMTA12) or 24V (CKMTA24) models

Constructed primarily of light weight, high strength, engineering grade
materials, including military and aerospace standard components

Pressure switch controlled air manifold system regulates pressure between 9.3Bar [135PSI] and 10.3Bar [150PSI] suited to air tools and all ARB Air Locker equipped vehicles

Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM]

High efficiency design consumes only 56 Amps at maximum air flow

Built with sealed components for moisture and dust resistance

Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon
fiber piston seals for reduced friction and maximum trouble free life

Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions)

Anti-vibration / sound deadening is integrated into the mount
Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning

High density and high flow washable sintered bronze air filter elements

Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids.
(Note: Air Locker Manifold Kit #171503 required to mount solenoids)

Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault
Motors are water sealed, 100% ball bearing equipped (i.e., no bushings used), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit

Motors are internally thermal protected against extreme temperature damage

Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing

Over-pressure safety valve equipped

Sealed illuminated automotive grade dash switch included

Fully serviceable and all replacement parts available

EMF suppressed for use in proximity to sensitive electronic equipment

CE and C-Tick compliant

Engineered, built, and individually dyno-tested in Australia from local and imported components


Questions about this ARB On-Board Compressor for your Jeep JK Wrangler? Talk to our Jeep Modification Experts today - call 714-582-3330 or chat with an expert online now!
