Improve handling and steering
feel from your E90 3 Series and replace worn-out bushings with Powerflex
Urethane Suspension Bushings. Other than improving handling Powerflex bushings
in many cases tire life is prolonged if the original bushings are worn-out. All
Powerflex Suspension Bushings come with a 1 year unlimited mile warranty no
matter the type of E90 they are used on.
Benefits
- Sure-footed handling
- Increased life of suspension
parts
- Decreases the chance of developing
"clunking" due to chassis aging
- Improved ride
- 1 year unlimited mile
warranty
- Prolonged tire life
Fitment
- E90 2006+ Sedan Excluding M3
 |
 |
|
Item |
Fitment |
Part Number
(QTY Included) |
| 1 - Front
Tension Arm Bushing Set |
E90 2006+ |
PFF5-401
(2) |
| 2 - Front Wishbone Arm
Bushing Set |
E90 2006+ |
PFF5-402 (2) |
| 3 - Front
Anti Roll Bar Bushing 26.5mm Set |
E90 2006+ |
PFF5-4602-26.5 (2) |
| 11 - Rear Radius/Lateral Arm
Bushing Set |
E90 2006+ |
PFF5-411 (10) |
| 12 - Rear
Upper Arm To Hub Bushing Set |
E90 2006+ |
PFR5-412
(4) |
| 13 - Rear Upper Lateral Arm
To Chassis Bushing Set |
E90 2006+ |
PFR5-413 (2) |
| 14 - Rear
Lower Lateral Arm To Hub Bushing Set |
E90 2006+ |
PFR5-414
(2) |
| 15 - Rear Lower Lateral Arm
To Chassis Bushing Set |
E90 2006+ |
PFR5-415 (2) |
| 20 - Rear Subframe Rear
Mounting Insert Set** |
E90 2006+ |
PFR5-420/PFR5-422 (2/2) |
| 10 - Rear
Anti Roll Bar Bushing Set (11mm) |
E90 2006+ |
PFF5-4609-11 (2) |
| 10 - Rear Anti Roll Bar
Bushing Set (12mm) |
E90 2006+ |
PFF5-4609-12 (2) |
| 10 - Rear
Anti Roll Bar Bushing Set (13mm) |
E90 2006+ |
PFF5-4609-13 (2) |
| 10 - Rear Anti Roll Bar
Bushing Set (14mm) |
E90 2006+ |
PFF5-4609-14 (2) |
| 10 - Rear
Anti Roll Bar Bushing Set (15mm) |
E90 2006+ |
PFF5-4609-15 (2) |
| 25 - Rear Diff Front
Mounting Bushing |
E90 2006+ |
PFR5-425 (2) |
| 25 - Rear
Diff Rear Mounting Bushing |
E90 2006+ |
PFR5-426
(1) |
| 19/20 -
Rear Subframe Mounting Insert Set* |
E90 2006+ |
PFR5-419/PFR5-421 (2/2) |
| 19/20 -
Rear Subframe Mounting Insert Set* |
E91 2006+ |
PFR5-419(2)/PFR5-423 (2/2) |
| Rear Shock
Upper Mount1 |
E90 2006+ |
PFR5-416
(2) |
| Rear Shock
Upper Mount1 |
E90 2006+ |
PFR5-416-12 (2) |
*PFR5-419 and PFR5-421 are inserts to be used with the original bushings
**PFR5-420 and PFR5-422 are complete bushings and replace the
original bushings
1 - PFR5-416 is for use with cars that have a 10mm thread, PFR5-416-12 fits
performance shocks with 12mm thread

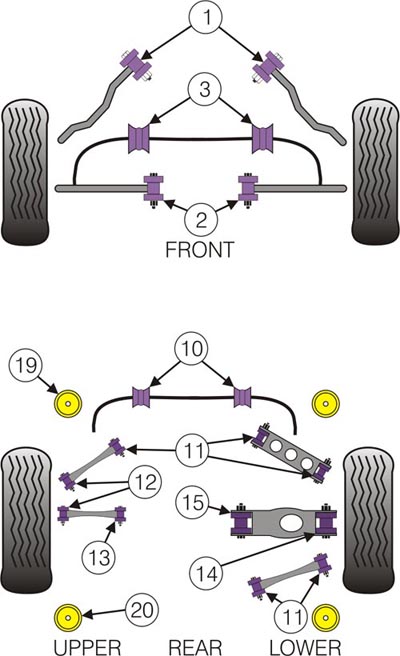

E90 PowerFlex Urethane Suspension Bushings Diagram:
