KW designed and
manufactured every coilover to
CUSTOM
fit your
Porsche Boxster/Cayman,
unlike other coilovers that may be a "special one-coilover-fits-all",
these KW Coilovers guaranteeing
MAXIMUM
handling and performance for your Porsche
Boxster/Cayman. Along with
handling, this system makes sure your car is given a perfectly
AGGRESSIVE
stance, not a vehicle that's touching the floor. With KW's patented
dampening technology they do not only give you a aggressive feel through
the turns but also helps with acceleration. With less rear sag and
perfectly tuned rebound KW coilovers are able to cut time off your 0-60
time as well. Maybe you're not the one for aggressive looks and
ultimate performance, but for comfort. Well, KW took that into
consideration, and integrated adjustable comfort technology.
NOTE: Please
read footnotes at bottom of the page.
Benefits
-
MAXIMUM DRIVING COMFORT!
- Coilover struts in stainless
steel technology, "inox-line"
- TUV tested lowering on front
and rear axle from 5-45mm
- Better handling due to less
curl
- Trapezoid thread for easy
height adjustment
- High-quality elements for
long durability
- Adjustable rebound dampening
- Delivery includes detailed
installation instructions and documentation for easy use
-
LIFE-TIME WARRANTY!
|
 |
KW is known for their signature colors,
individuality, quality, and security. Take a look below to read more
into which KW Coilover Variant is the BEST
option for you!
KW Variant 1
Sportive - Harmonic with
KW factory pre-set up dampening

The ideal systems for customers wishing to rely on
the experience of KW engineers, yet determine their own degree of
lowering. In extensive driving tests our engineers have set the dampers
for the best balance between sporty driving, comfort and safety.
- Optimally adjusted, sporty and comfortable
dampening technology
- Inox-line stainless steel technology at no extra charge
- Individually height adjustable
- German TUEV-tested lowering range
- High-quality components for long life
- Comprehensive documentation for ease of us
KW Variant 2
Sporty and Personalized
with adjustable Rebound Dampening

The system intended for the experienced driver who
requires to not only determine the individual lowering of their vehicle,
but adjust the damper setting to fine tune the system to their needs.
The adjustable rebound damper allows adjustment of the pitch and roll
behavior of the vehicle, adapting it to one‘s own driving preferences.
- Damping technology with individually adjustable
rebound
- Inox-line stainless steel technology at no additional charge
- Individually height adjustable
- German TUEV-tested adjustment parameters
- High-quality components for long life
- Comprehensive documentation for ease of use
- Infinitely adjustable rebound damping

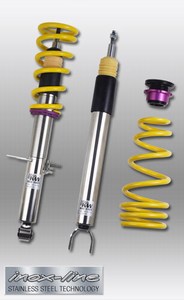

KW Variant 3

Race Technology for the Road
with: Adjustable Compression Rebound Dampening
State-of-the-art technology from motor sports for more performance on
the road. The separate and independently adjustable rebound- and
compression damping allows for an individual suspension setup for
different uses and preferences. The unique patented system with its
two-stage valves allows a rebound damping adjustment (comfort) and a
compression adjustment (driving dynamics) in the low-speed range while
the high-speed range which controls the driving safety, is fixed.
- Damping technology with individually
adjustable rebound- and compression technology
- inox-line* stainless steel
technology
- Individually height adjustable
- Adjustment parameters approved by
the German Technical Control Board (TÜV)
- High-quality components for long
durability
- Infinitely variable rebound damping
adjustment
- 14-way adjustable compression
damping
- Unique, individually working damping
force adjustment
- Comprehensive documentation for easy
use
*Not for suspensions with spring
strut modification (exchanged struts), these are only available in
zinc-plated steel.
KW clubsport – Coilovers for race track and road
KW Clubsport coilovers was developed for customers, who demand a better
handling car when participating in
track
day events, but also require a setup that could be used every day. The
Clubsport was specifically designed for the Nordschleife using track day
tires. By using the optional adjustable top mounts, the suspension
geometry can be adjusted to the requirements of tires and the intended
use. The mentioned adjustment options combined with the independently
adjustable rebound and compression damping technology allow a suspension
setup according to the vehicle load, tire characteristics and different
track conditions. KW Clubsport meets every demand regarding a coilover
for the usage on the road and the race track.
KW Clubsport suspension kits are independently adjustable in compression
and rebound forces and include high
performance racing springs.
Racing top mounts are optionally available for further performance. KW
Clubsport
guarantees excellent handling, best performance, highest agility and
fantastic lap times.
- Height adjustable coilovers
- Performance setup for the racetrack
- Dampers in compression & rebound
forces independently adjustable
- Use of high performance linear race
springs/li>
- In stainless steel technology inox-line
- Additional available with racing top
mounts
- TÜV approval possible depending on
the specification
(see references)
Why do KW's cost more
than other Coilovers?
The answer is simple,
you get what you pay for when it comes to vehicle suspension. As such a
crucial component of your vehicle, suspension is definitely something
you do not want to cheap out on. KW is known for their reinforced and
durable suspension components. KW's coilovers have been carefully
crafted and designed by studying the flaws of competitors and improving
on them. In addition KW coilovers can go lower than just about any other
brand and allow you to set your car to a "slammed look", "sporty look",
or anywhere in between. In the unfortunate event that anything should
happen to your coilovers, KW's warranty backs all their products from
manufacturer's defect.
Function
- Infinitely adjustable
within German TUEV-tested adjustment parameters
- Shortened struts for increased spring travel
- Trapezoidal threads for simple height adjustment
- Three different damping technologies for individual adjustment
- Elastomer bump stops with integrated dust boot protection
- Easy to read documentation
- Ready to use comprehensive solutions
- Visually perfect – safe and unique motion dynamics
Quality
- Strut housings in inox-line
stainless steel technology
- Anodized aluminum spring collars and add-on pieces
- High-quality, high-tensile racing springs
- Special ventilation and sealing system
- High-quality damping components
- Hardened, chromium-plated piston rods
- Special guide and sealing systems
- Pistons with V-shaped Teflon seals – optimal sealing with minimal
friction – temperature-resistant, durable damping technology
What are
Coilovers?
A coilover suspension basically gives you a
matched lowering spring and shock absorber combination with the
added benefit of adjustable ride height and spring rates through
a moveable spring perch or perches. Coilovers are to your car's
advantage by reducing unsprung mass, increasing suspension
travel, and allowing the car to be corner balanced.

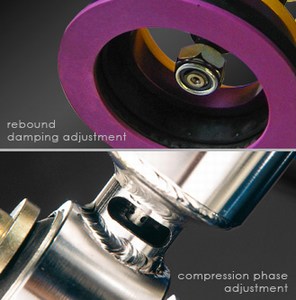

Pressure Adjustment Clubsport
The rebound adjustment,
produced with the widest range of adjustment for that specific
vehicle, is carried out by an adjustment spindle at the end of
the piston rod. Most of all, the rebound controls the car body
vibration, but at the same time the damping range also affects
the handling and comfort at low speeds. With the rebound
adjustment, the car can be adjusted to the demands of the
driver; the driving impression can range from comfortable ride
quality to a tighter and tense ride with improved road-holding
characteristics.
The compression adjustment takes place at the lower end
of the shock absorber by our patented multi-purpose valve. The
number of pre-adjustable parameters of this valve allows a wide
range of adjustments. The unique low-speed compression
adjustment makes this technology unique. Within this damping
range, the driving behavior of the car is strongly influenced.
An increasing damping force already supports the car at the
compression and therefore avoids rolling motions. The steering
behaviour significantly improves. |
 |
Pressure adjustment Variant 3
The compression characteristics are adjusted
utilizing a new, patented valve at the lower end of the damper
casing. The number of pre-installable parameters available for
this valve allow for settings for just about any application
required. The unique low-speed pressure adjustment is the
decisive feature of this technology. In this absorption area the
handling of the vehicle is greatly influenced. An increase in
the damping force supports the vehicle even during compression,
thereby preventing pitch, roll and notably improving cornering
behavior.
In association with
independent adjustable rebound absorption the experienced driver
has all the parameters required for effective suspension tuning. |
|
|
Variant 1 |
Variant 2 |
Variant 3 |
Clubsport |
Porsche |
Year |
Front Drop |
Rear Drop |
Part Number |
Footnotes |
Front Drop |
Rear Drop |
Part Number |
Footnotes |
Boxster (986) incl. Boxster S |
98-04 |
0.8-1.5 |
0.8-1.5 |
10271001 |
15271001 |
35271001 |
1),35) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Boxster (987) incl. Boxster S |
05+ |
1.2-2.1 |
0.8-1.5 |
NA |
NA |
35271016 |
1), 78) |
1.2-2.1 |
0.8-1.5 |
35271816 |
1),78),96) |
|
|
|
|
|
|
|
|
|
|
|
|
Cayman S (987) |
06+ |
1.2-2.3 |
1.2-2.3 |
NA |
NA |
35271016 |
1),78) |
1.2-2.3 |
1.2-2.3 |
35271816 |
1),78),96) |
Notes:
1 |
Height adjustable on the front and rear axles (threaded strut
housings) |
35 |
Only for vehicles manufactured after 1998. Model year can be
found in the 10th position of the vehicle identification number
(V=97, W=98, X=99, Y=2000, 1=2001,…) |
78 |
If the car is equipped with PASM, the PASM needs to be disabled. |
96 |
Without German TÜV certificate, optional with stability
confirmation for individual registration according to §21 German
law, clubsport top mounts generally witout TÜV certificate. |
