**Forgestar F14 Wheels for BMW 3/4-Series M3/M4 [F30/F32/F80/F82] 19x8.5-9.0-10-11

$1,599.00

Quick Overview



Sku # : Forgestar_F14_BMW_F30_F32_NG1
Front Wheel Size
Rear Wheel Size
Finish
Center Caps
Forgestar Cone Seat Lugnuts
Shipping

ModBargains is proud to offer you the BRAND NEW FORGESTAR Wheel Lineup with the latest technology in wheel production to bring you the best of both worlds. This brand new lineup utilizes a combination of the best methods of forging and casting methods both in the same wheel. This is called Flow Form Casting, and is used by companies such as BBS and Enkei. These wheels are made to order and can be made to fit your BMW with a large range of offsets.

Flow Form Casting is a production procedure that turns the wheel (or rim section) over a special mandrel and three hydraulic rollers using tremendous pressure. The pressure and turning then force the rim area to form against the mandrel, creating the shape and width of the rim. During Flow Forming, the rim actually "flows" down to create the full rim width. During Flow Forming, pressure applied to the cast rim actually changes its mechanical properties, so its strength and impact values become similar to those of a forged rim. That translates to up to 15% less weight when compared to a standard cast wheel.

***Please note the Forgestar F14 will require cone seat lug nuts so that the wheels sit properly on the hub. We can provide these for you (see attributes).

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4
F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

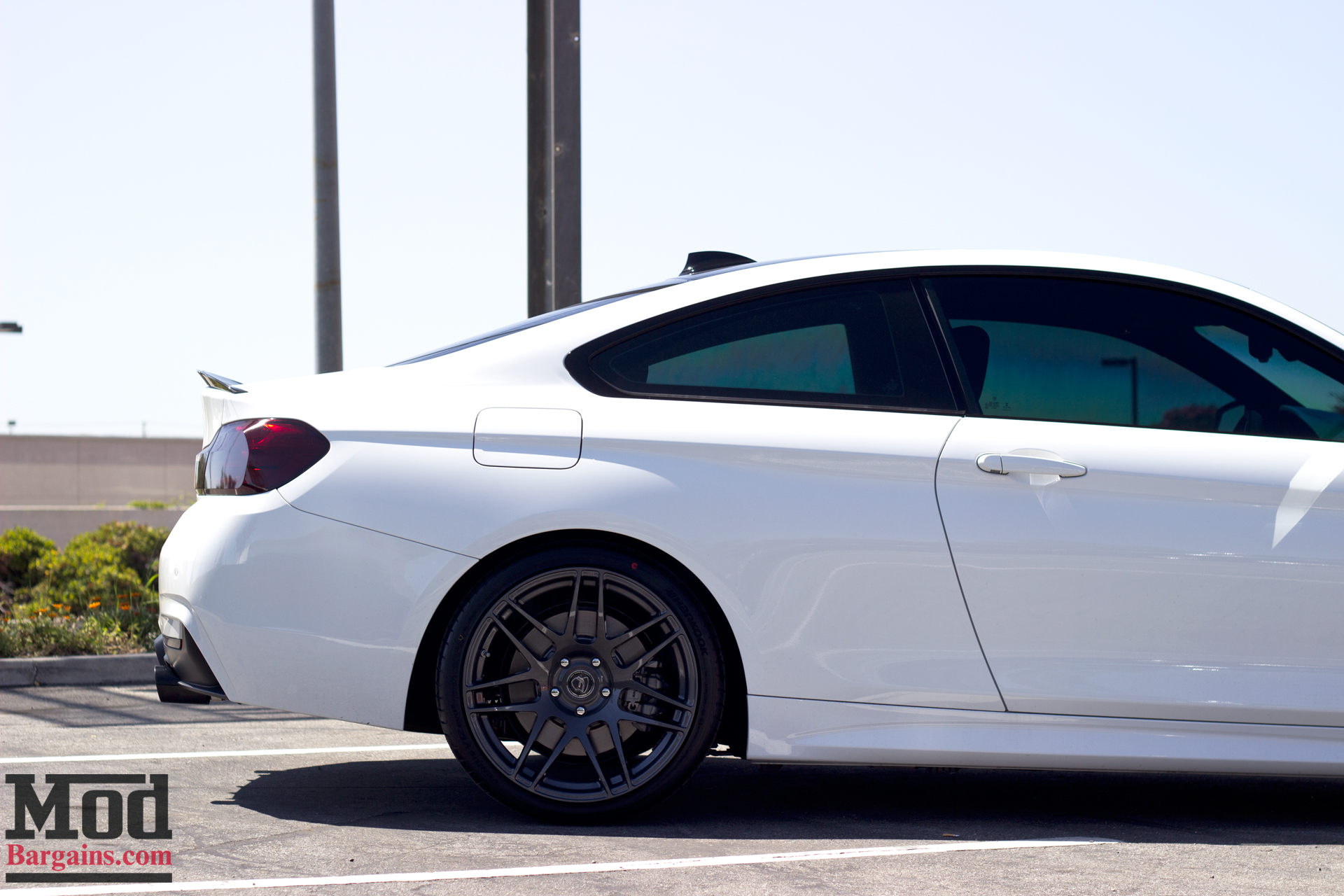

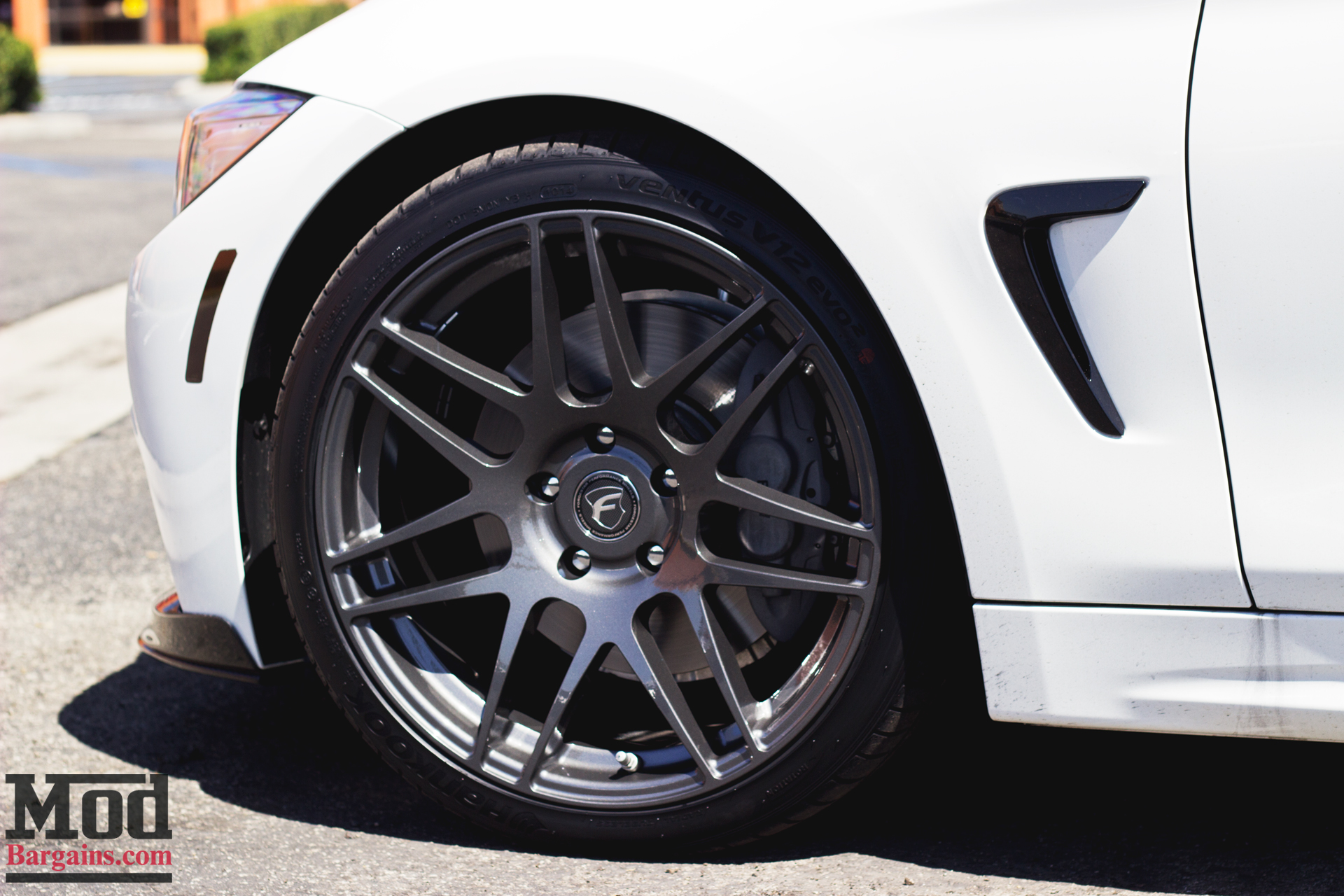

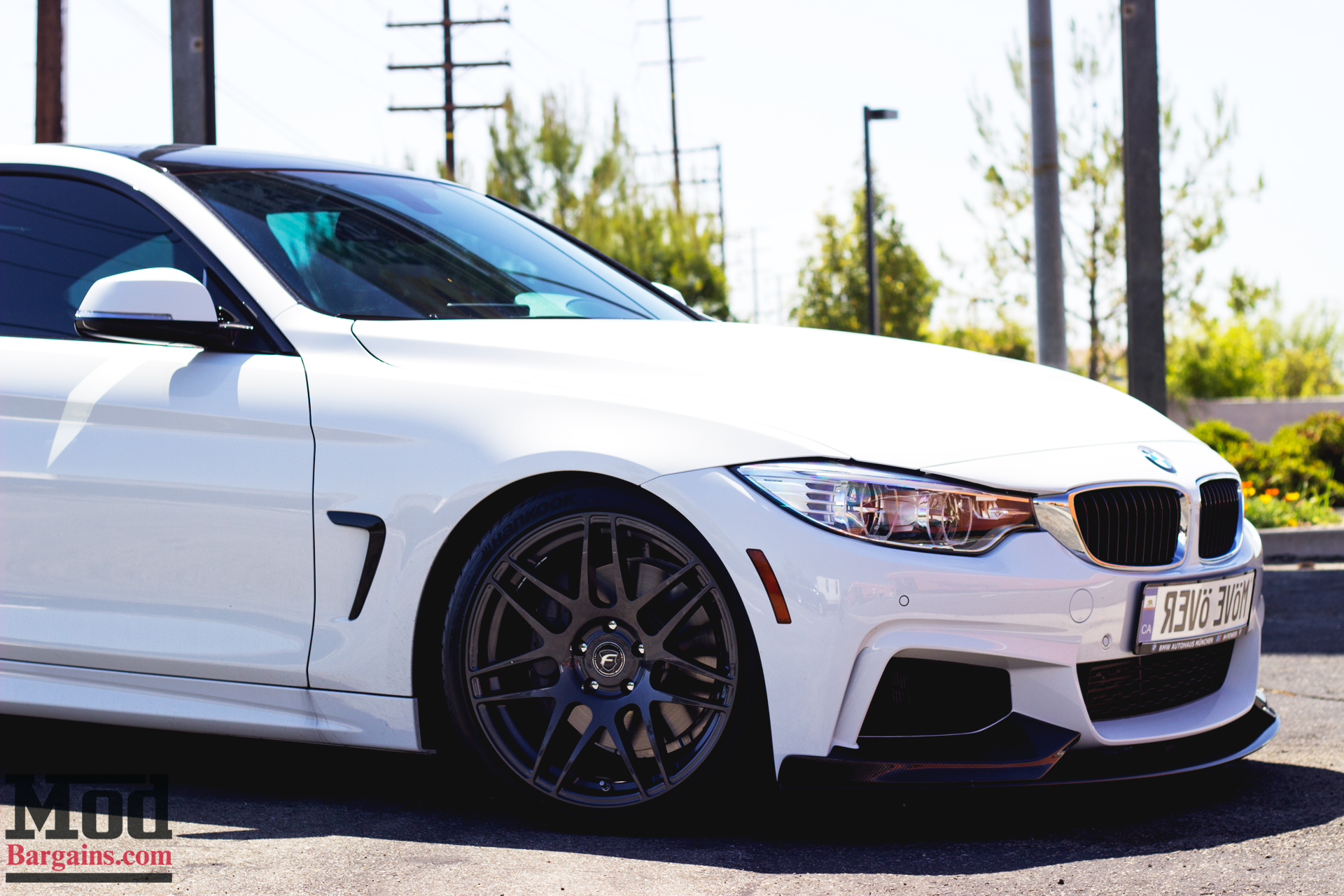

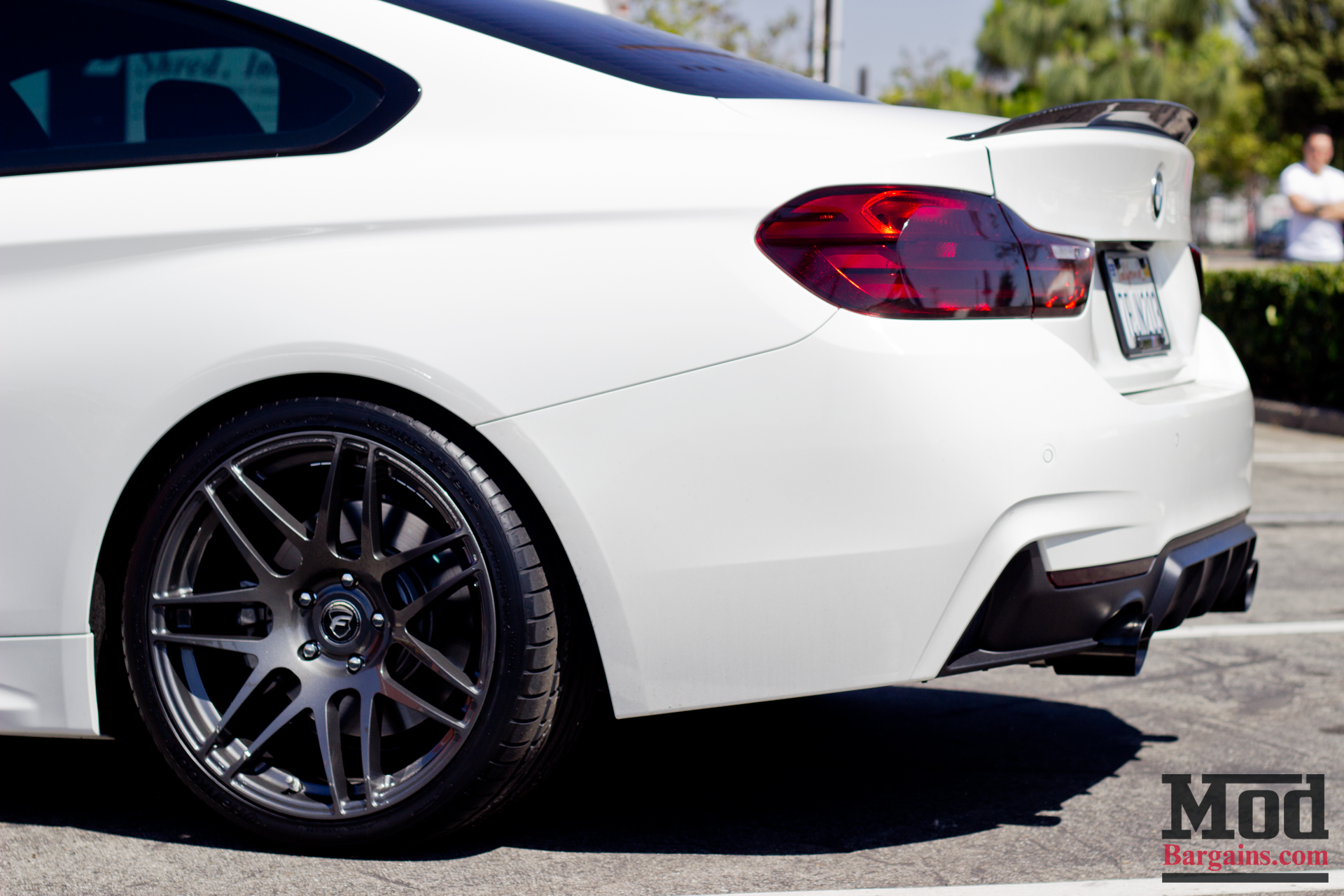

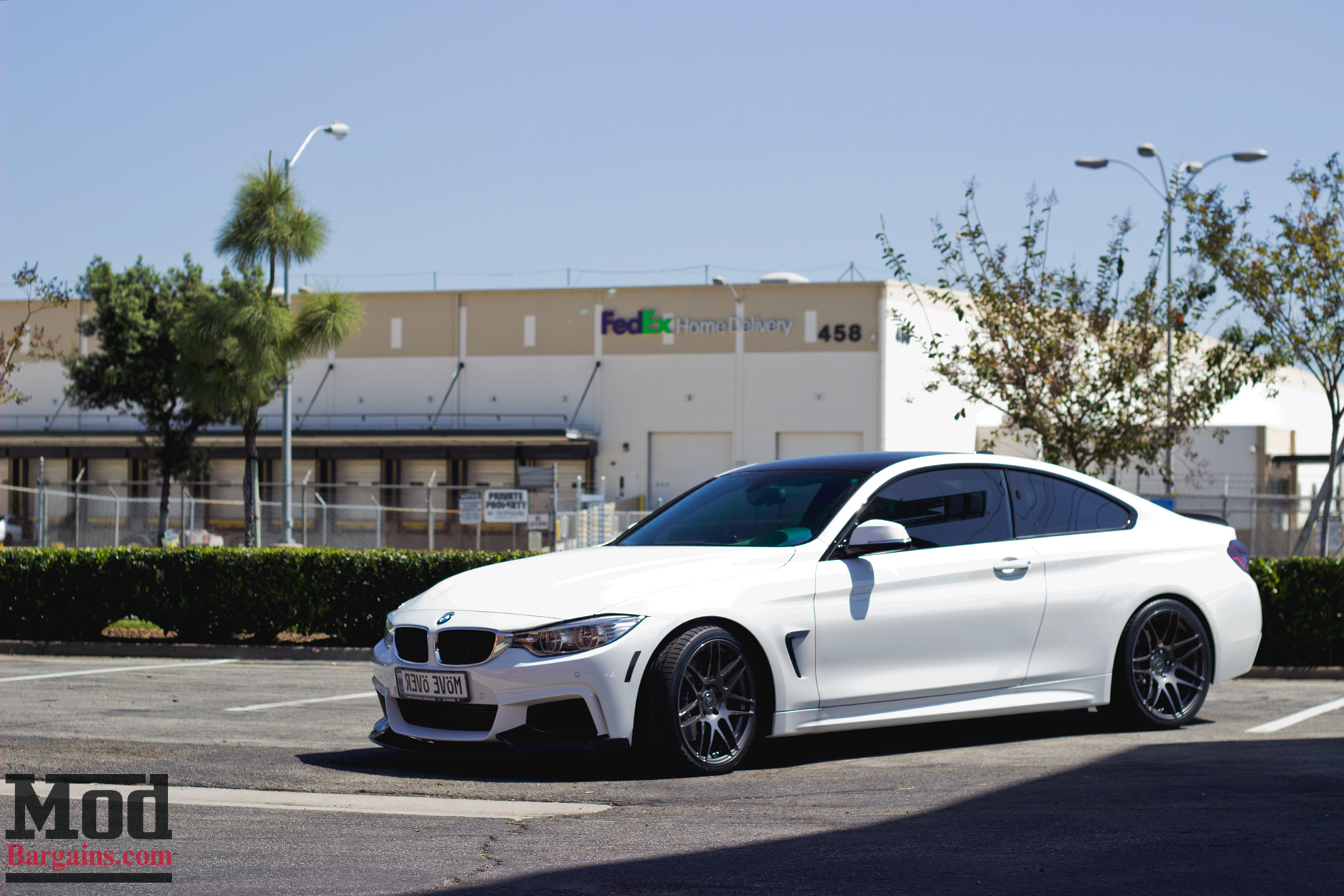

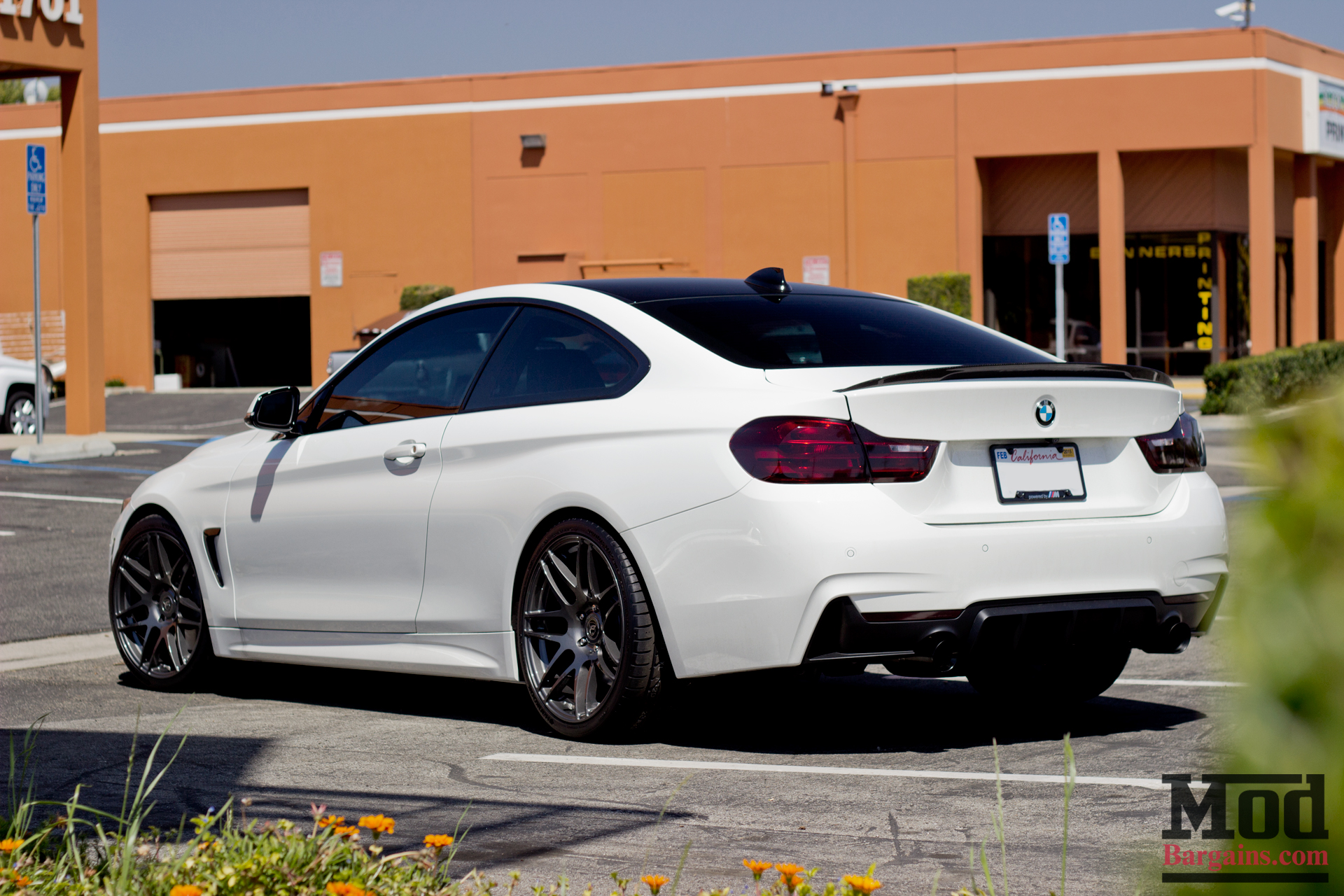

Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 1

Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 5


Forgestar F14 Features:

-High Quality 'Flow Form' Production
-Durability of a Forged Wheel
-Lightweight and Excellent Value
-TPMS Compatible
-Clears OEM Calipers and Aftermarket Big Brake Kits
-
Custom Offsets and bolt patterns
-Fits almost any car!
-
Wheels are made to order

Forgestar F14 Available Finishes
All Forgestar F14 finishes are now powdercoated. If you would like a custom pinstripe please call in to place your order, (714) 582-3330.

  • Gloss Black
  • Matte Black
  • Textured Black
  • Silver
  • Gunmetal
  • Textured Gunmetal
  • Frost White
  • Race Gold
  • Brushed Titanium
  • Premium custom powdercoat finishes also available (See below)
  • Carbon Overlay - 100% real carbon fiber overlay
  • Karbon Overlay- This is a carbon fiber look overlay

Custom Finishes Available:

Available Offsets and Sizes
19x8.5 offsets from +26 to +48
19x9.0 offsets from +20 to +50
19x10 offsets from +20 to +45
19x11 offsets from +23 to +55

Why Forgestar F14 wheels are better than cast wheels

  • Custom Offsets - Forgestar wheels can be made in virtually any offset, whereas standard cast wheels come in a set offset. This allows you to dial in exactly how you want your wheels to sit (we can help you select the offset you need for the look your looking for). Having custom offsets allows for fitment of wider wheels in stock suspension and lowered vehicles. Forgestar wheels are designed specifically for your car and it's suspension setup, where cast wheels are designed for everyone and typically do not take in to account lowered suspension setups.

  • Weight - Forgestar wheels are also much lighter than cast wheels. The 19x8.5 F05 & F14 wheels both weigh an amazingly light 22.5 lbs, where a cast wheel of this same size would weigh anywhere from 27-30 lbs. This is a saving of roughly 5-7 pounds per wheel makes a BIG difference in regards to handling and drivability. Reducing unsprung weight (weight that is not supported by the car's suspension, i.e wheels, tires, brake rotors, and brake calipers) is one of the easiest ways to improve your car's handling, braking, and acceleration. As a general estimate 1 pound of unsprung weight is equal to 10 pounds of static weight. (weight that is supported by the vehicle's suspension). By using this ratio if you were to replace your stock wheels that weighed 27 lbs with Forgestar wheels you would be saving 180 lbs. in static weight!

  • Strength - Flow-formed wheels are similar in strength to that of a fully forged wheel, without the cost. The process used to make the Forgestar wheels is the same process BBS wheels uses as well. Forgestar wheels are also rated at 1500 lbs per wheel which is considerably more than a cast wheels which are typically around 1000-1200 lbs. per wheel.

  • Range of Sizes - Forgestar wheels are available in a multitude of sizes, allowing you to decide exactly what diameter and width you want to run on your vehicle, rather being forced to run a set staggered size with cast wheels (As cast wheels usually are only available with one set front wheel width, and one rear wheel width).

Want to know how much more power you will get by putting on lighter wheels and decreasing unsprung weight? Give us a call at 714-582-3330



Shipping
Local pickup of these wheels can be performed in the southern California area, please e-mail a ModBargains sales representative to schedule an appointment. Otherwise shipping is a flat $99 to the US. International shipping quotes are available via email.

Weights
19x8.5 Approx weight 22.5 lbs
19x9.0 Approx weight 24.7 lbs
19x10. Approx weight 24.1 lbs
Forgestar F14 BMW Application Guide
Vehicle Bolt Pattern

Front Offsets

Rear Offsets

Center Bore
8.5" Width 9.0" Width 10 & 11" Width
E36 (Incl. M3) 5x120 19x8.5 ET35 19x8.5 ET35 - - 72.56
E46 Sedan 5x120 19x8.5 ET35 19x8.5 ET35 - - 72.56
E46 Coupe (Non M3) 5x120 19x8.5 ET35

-

19x9.0 ET 40

-

72.56
E46 M3 5x120 19x8.5 ET35 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 72.56
E90/E91/E92/E93 (Non M3) 5x120 19x8.5 ET35 - 19x9.0 ET 30

19x10 ET30*

72.56
E90/E92/E93 M3 5x120 19x8.5 ET35 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 72.56
E34/E39/E60 5-Series (Incl. M5) 5x120 19x8.5 ET15 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 74.1
E63/E64 6-Series (Incl. M6) 5x120 19x8.5 ET15 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 72.56
89-08 7-Series 5x120 19x8.5 ET15 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 72.56

E31 8-Series

5x120 19x8.5 ET15 - 19x9.0 ET 22 19x10 ET 20, 19x11 ET 33* 72.56
E82/E87/E88 1 Series Coupe/Cabrio/Hatchback 5x120 19x8.5 ET48 19x8.5 ET48 19x9.0 ET50 - 72.56

*Extremely Aggressive. MAY rub and/or require rolled fenders.

Forgestar F14 Rim Size Comparison:

Forgestar F14 Wheel Finishes:





Forgestar F14 Gunmetal:



Superdeep Concave Shown Above

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

Forgestar F14 Gunmetal 19x8.5 / 19x10 245/35-19 / 275/30-19 Hankook Ventus V12 Evo 2

Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 2

Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 3

Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 4



Forgestar F14 Wheels for BMW F32 435i 4-Series Installed 6



F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4
F14 Super Deep Concave Gunmetal - 19x9.5 / 19x11 - Michelin Pilot Super Sport Tires F82 M4

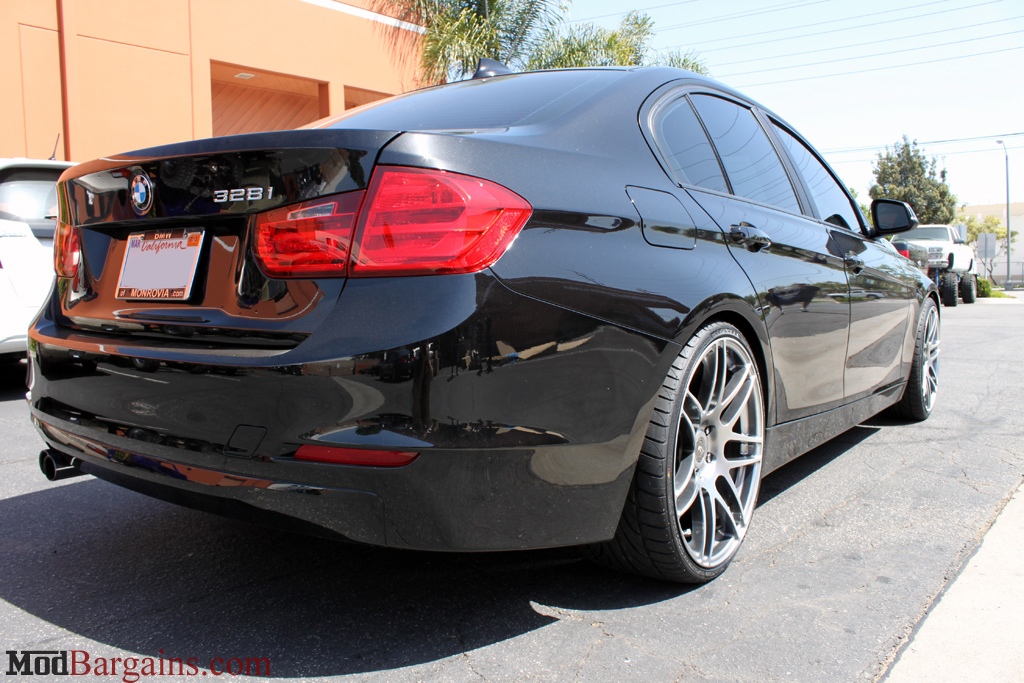

Forgestar F14 Wheels for BMW F30 328i 3-Series Installed 1

Forgestar F14 Wheels for BMW F30 328i 3-Series Installed 2



Forgestar F14 Matte Black:

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-10

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-9

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-1

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-11

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-7

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-6

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-4

BMW_F36_428i_GranCoupe_BC_Coilovers_Forgestar_F14_19x85_19x10_FALKEN_-2

Forgestar F14 Gloss Black:



Forgestar F14 Semi Gloss Black:



Forgestar F14 Race Gold:

Forgestar F14 Bronze Burst



Not sure what Forgestar F14 finish will look best with your vehicle? Call us at 714-582-3330
