ModBargains is
proud to offer you the BRAND NEW FORGESTAR Wheel Lineup with the latest technology in
wheel production to bring you the best of both worlds. This brand new
lineup utilizes a combination of the best methods of forging and casting
methods both in the same wheel. This is called Flow Form Casting, and is
used by companies such as BBS and Enkei.
These wheels are made to order and can be made
to fit your Porsche with a large range of offsets.
Flow Form Casting is a production
procedure that turns the wheel (or rim section) over a special mandrel
and three hydraulic rollers using tremendous pressure. The pressure and
turning then force the rim area to form against the mandrel, creating
the shape and width of the rim. During Flow Forming, the rim actually
"flows" down to create the full rim width.
During Flow Forming, pressure applied to the cast rim actually changes
its mechanical properties, so its strength and impact values become
similar to those of a forged rim. That translates to up to
15% less weight when compared to a
standard cast wheel.
Please note the Forgestar F14 will require
cone seat lug bolts so that the wheels sit properly on the hub. We can
provide these for you (see attributes). |


CLICK THIS PICTURE TO GO TO THE FORGESTAR F14 PHOTO GALLERY!
Features:
- High Quality flow form production
- Durability of a Forged Wheel
- Lightweight and Excellent Value
- TPMS Compatible
- Clears OEM calipers and aftermarket
big brake kits
- Custom offsets and bolt patterns
- Fits
nearly any vehicle!
- Wheels are made to order
Forgestar F14
Available
Finishes
All Forgestar F14 finishes are now
powdercoated. If you would like a custom pinstripe please call in to
place your order, (714) 582-3330.
-
Gloss Black
-
Matte Black
-
Textured Black
- Silver
- Gunmetal
- Textured Gunmetal
- Frost White
- Race Gold
- Premium custom powdercoat finishes
also available (See below)
- Semi Gloss Black
- Brushed Black
- Brushed Charcoal
- Brushed Titanium
- Carbon Overlay - 100% real carbon
fiber overlay
- Karbon Overlay- This is a carbon
fiber look overlay
Custom Finishes Available:

Increased Load Ratings
The 18" Forgestar F14 now has an
increased load rating per wheel. The JWL VIA certified load rating for
all 18" F14 sizes is 1520Lbs, up from 1200Lbs per wheel.

Available Offsets and Sizes
-
18x8.5 offsets from +26 to +50
-
18x9.0 offsets from +20 to +55
-
18x9.5 offsets from +26 to +60
-
18x10.0 offsets from +16 to +42
-
18x11.0 offsets from +23 to +55
-
18x12.0 offsets from +36 to +68
|
|
Why Forgestar Wheels are Better Than Cast Wheels
- Custom Offsets - Forgestar
wheels can be made in virtually any offset, whereas standard
cast wheels come in a set offset. This allows you to dial in
exactly how you want your wheels to sit (we can help you select the
offset you need for the look your looking for). Having custom
offsets allows for fitment of wider wheels
in stock suspension and lowered vehicles. Forgestar wheels are
designed
specifically for your car and it's suspension setup,
where cast wheels are designed for everyone and typically do not
take in to account lowered suspension setups.
-
Weight - Forgestar
wheels are also much lighter than cast wheels. The 18x8.5 F14
wheel weighs an amazingly light 18.5 lbs, where a cast
wheel of this same size would weigh anywhere from 23-27 lbs. This saving of roughly
6-10 pounds per wheel makes a BIG
difference in regards to handling and drivability. Reducing unsprung
weight (weight that is not supported by the car's suspension, i.e
wheels, tires, brake rotors, and brake calipers) is one of the
easiest ways to improve your car's
handling, braking, and
acceleration. As a general estimate 1 pound of unsprung
weight is equal to 10 pounds of static weight. (weight that is
supported by the vehicle's suspension). By using this ratio if you
were to replace your stock wheels that weighed 25 lbs with Forgestar
wheels you would be saving 320 lbs. in static weight!
- Strength - Flow-formed wheels
are similar in strength to that of a fully forged wheel, without the
cost. The process used to make the Forgestar wheels is the
same process BBS wheels uses as
well. Forgestar wheels are also rated at 1520 lbs per wheel
which is considerably more than a cast wheels which are typically
around 1000-1200 lbs. per wheel.
- Range of Sizes - Forgestar
wheels are available in a multitude of sizes, allowing you to decide
exactly what diameter and width you want to run on your vehicle,
rather being forced to run a set staggered size with cast wheels (As
cast wheels usually are only available with one set front wheel
width, and one rear wheel width).

Weights
-
18x8.5 ET48 - 18.5 Lbs.
-
18x9.5 ET48 - 20.1 Lbs.
-
18x10 ET42 - 19.4 Lbs.
-
18x12 ET68 - 21.5 Lbs.
Shipping
Local pickup of these wheels can be performed in the
southern California area, please e-mail a ModBargains sales
representative to schedule an appointment. Otherwise shipping is a flat
$99 to the US. International shipping quotes are available via email. |
Forgestar F14 Wheel Finishes:

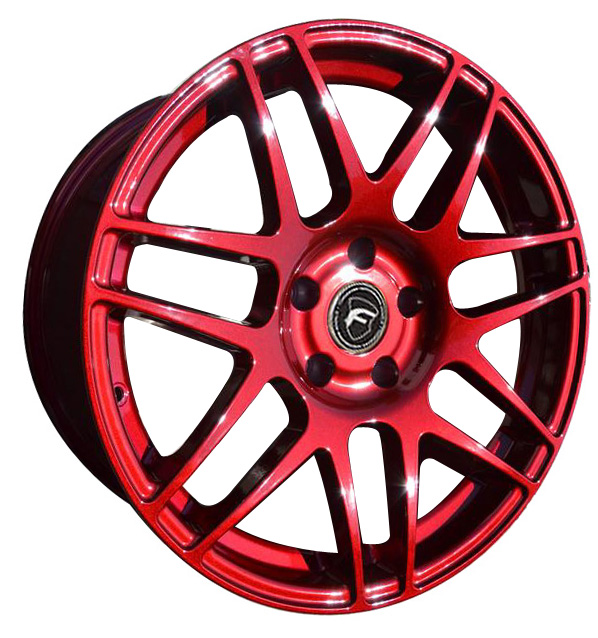

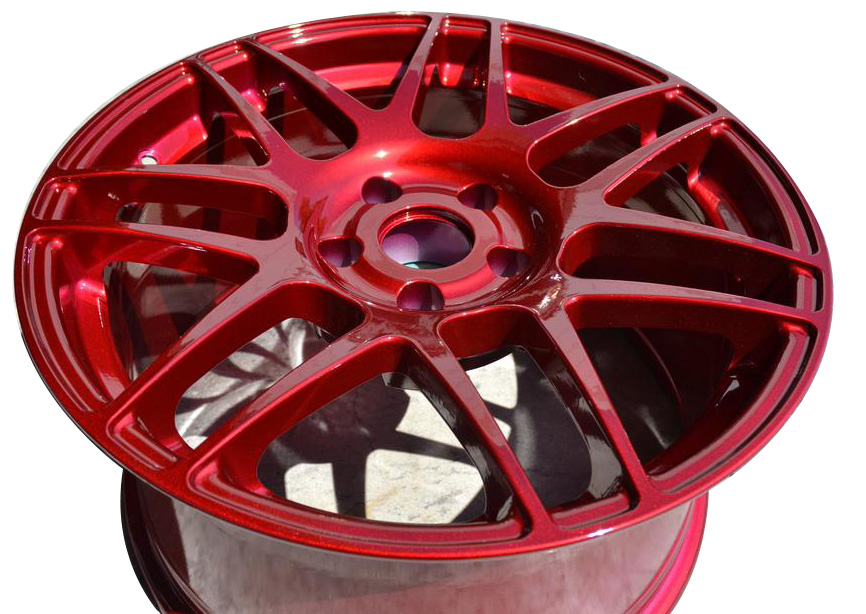

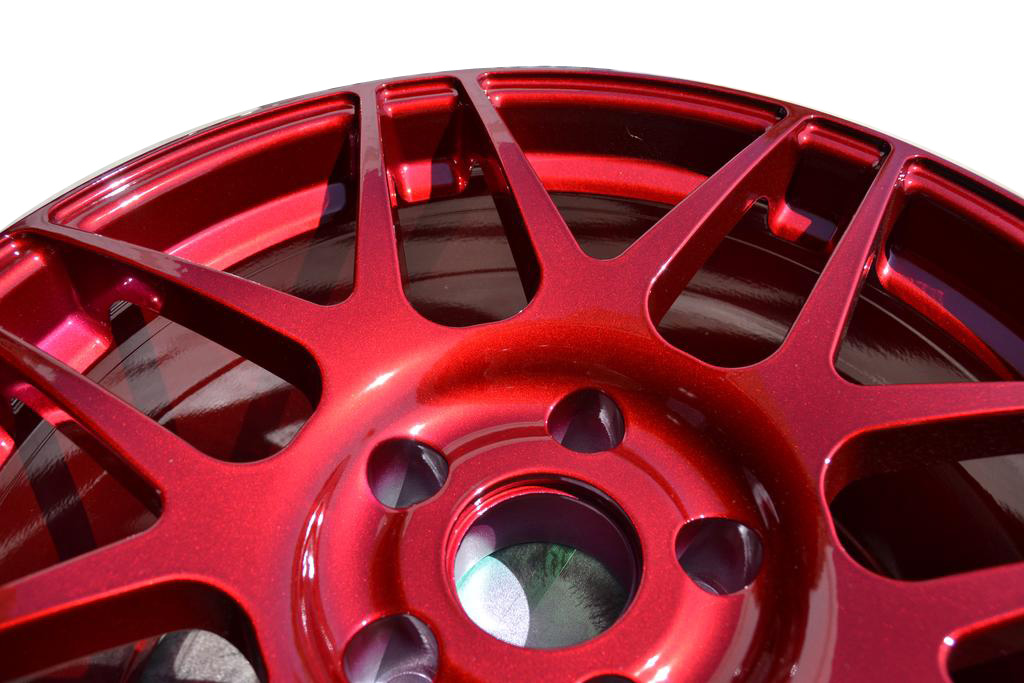

Blood Red:




Anodized Purple:

Tiffany Blue:

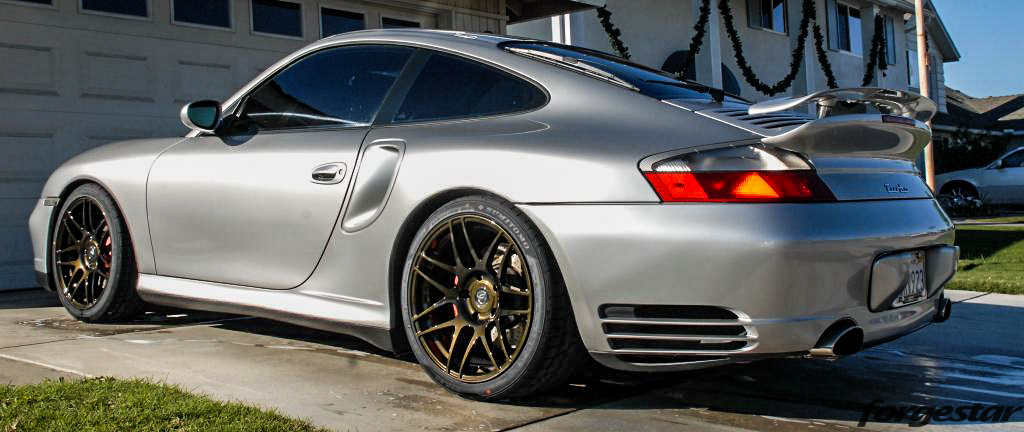

Sunken Treasure (CUSTOM)

Forgestar F14 Sunken Treasure (CUSTOM) 19x9 / 19x11

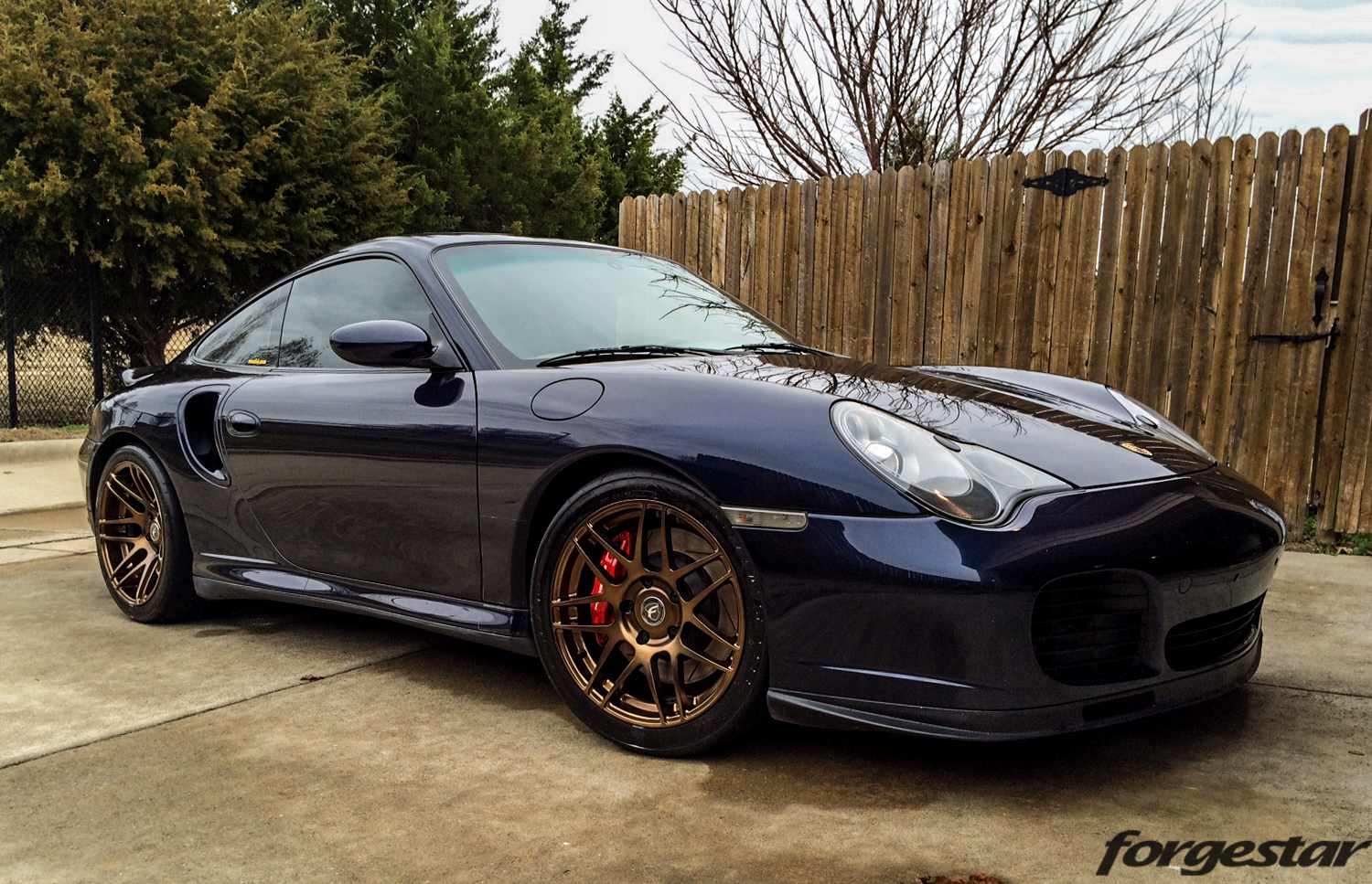

Matte Antique Bronze (CUSTOM)

Matte Antique Bronze 18x9 / 18x12
What you need to know about the
Flow-Forming Procedure
Forgestar's flowforming process is a unique solution to a common problem
– how to make a wheel both light and strong.
|
This
specialized process begins with a low pressure type of casting and uses
a special machine that spins the initial casting, heats the outer
portion of the casting and then uses steel rollers pressed against the
rim area to pull the rim to its final width and shape. The
combination of the heat, pressure and spinning create a rim area with
the strength similar to a forged wheel. During Flow Forming, the
pressure applied to the cast rim actually changes its mechanical
properties, so its strength and impact values become similar to those of
a forged rim. That translates to up to 15% less weight when compared to
a standard cast wheel. The
resulting grain structure within the alloy of the wheel is linear,
flowing in a single direction.
This grain structure pattern, combined with the exceptional quality of
casting required for the process, gives the rim area of the wheel huge
mechanical strength, and elongation. As a result of these mechanical
characteristics, Forgestar is able to reduce the thickness of the rim
area resulting in reduced weight, without compromising strength and
resistance to impact.
So in a nutshell, the process makes the
wheels:
-
Almost as strong as forged wheels
-
Lighter than cast wheels
-
Customizable to a range of offsets and
bolt patterns
-
A great value for the price
|
 |
 |
Pictures of the Flow-Forming Process:
Forgestar has
long been an advocate for wheel durability testing. They strongly
believe that any issue regarding consumer safety is an important one.
They want every customer contemplating the purchase of Forgestar wheels
to know that it has been carefully engineered by the Forgestar team and
thoroughly tested by independent third-party testing laboratories.
Actual test
reports from independent third-party test laboratories, such as
Standards Testing Labs
(STL), have been provided by Forgestar.
The most common
test standards used are those published by SAE (J2530) and TUEV
Rheinland (Germany). PDF files of these actual test reports are provided
below as well as an explanation of how the tests are performed and what
the results mean to you as a consumer.
They send every
width in each wheel design family with the offset configuration that
presents the greatest testing challenge and subject it to the equivalent
of a full product lifetime of stress in a third-party laboratory. In
this way, it is ensured that the recommended wheel fitment is safe at
maximum rated load. |
FO5 WHEEL TEST DATA
STL REPORT 19x8.5 (PDF 35K)
STL REPORT 19x9.0 (PDF 35K)
STL REPORT 19x10 (PDF 35K) |
F14 WHEEL TEST DATA
STL REPORT 19x8.5 (PDF 35K)
STL REPORT 19x9.0 (PDF 35K)
STL REPORT 19x10 (PDF 35K)
STL REPORT 19x11 (PDF 35K) |
The Forgestar Wheels will come with a set of
carbon fiber center caps. Below are pictures of these.
Carbon Fiber Center Cap

Not sure what Forgestar
F14 finish will look best with your Porsche? Call us at
