Forgestar F14
Available Offsets and Sizes
- 17x8.5
Available in +6 to +50
- 17x9
Available in +12 to +58
- 17x9.5
Available in +19 to +65
- 17x10
Available in +25 to +72
Forgestar F14
Applications
- BMW E36 328i 325i 318i M3
- BMW E46 325i 328i 330i M3
- BMW F30 328i 335i 340i
- BMW F80 M3
- BMW F82 M4
- BMW E85 Z4
- BMW E89 Z4
- BMW E36/7 Z3
- BMW F10 528i 535i 550i
- BMW F22 228i M235i
- BMW F87 M2
- BMW E87 1M
- BMW E82 128i 135i
- All BMW 5x120mm Cars that Accept 19in Wheels
|
 |
Benefits
- Customizable Wheels offer the option
of much meatier tires
- Flow
Form Design Offers Durability of a Forged Wheel at a value price
- Lightweight Design Reduces Unsprung
Weight for Better Handling & Acceleration
- TPMS Compatible so no annoying TPMS
light*
(*Installation of TPMS sensors from OEM wheels or new sensors
required, of course)
- Big Brake Friendly Design clears
aftermarket kits and OEM calipers
- Available with Custom offsets and
5 and 6-lug bolt patterns to suit the needs of even the most
customized vehicle
- Fits
nearly any vehicle because every set is custom made to your exact
specs!

Forgestar F14 Blood Red 17x8.5 ET40 / 17x9.5 ET60 on BMW 135i [E82]
Want more information on
Forgestar F14 flow
forming? Call us at 714-582-3330
BMW Application Guide
Vehicle |
Bolt Pattern |
Front Offsets |
Rear Offsets |
Center Bore** |
8.5" Width |
9.0" Width |
10 & 11" Width |
E36 (Incl. M3) |
5x120 |
17x8.5 ET35 |
17x8.5 ET35 |
- |
- |
74.1 |
E46 Sedan |
5x120 |
17x8.5 ET35 |
17x8.5 ET35 |
- |
- |
74.1 |
E46 Coupe (Non M3) |
5x120 |
17x8.5 ET35 |
- |
17x9.0 ET 40 |
- |
74.1 |
E46 M3 |
5x120 |
17x8.5 ET35 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
E90/E91/E92/E93 (Non M3) |
5x120 |
17x8.5 ET35 |
- |
17x9.0 ET 30 |
17x10 ET30* |
74.1 |
E90/E92/E93 M3 |
5x120 |
17x8.5 ET35 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
E34/E39/E60 5-Series (Incl. M5) |
5x120 |
17x8.5 ET15 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
E63/E64 6-Series (Incl. M6) |
5x120 |
17x8.5 ET15 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
89-08 7-Series |
5x120 |
17x8.5 ET15 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
E31 8-Series |
5x120 |
17x8.5 ET15 |
- |
17x9.0 ET 22 |
17x10 ET 20, 17x11 ET 33* |
74.1 |
E82/E87/E88 1 Series Coupe/Cabrio/Hatchback |
5x120 |
17x8.5 ET48 |
17x8.5 ET48 |
17x9.0 ET50 |
- |
74.1 |
Available Offsets and Sizes
17x8.5 offsets from +26 to +48
17x9.0 offsets from +20 to +50
17x10 offsets from +20 to +45
17x11 offsets from +23 to +55
Want to know how much more power you will get by putting on
lighter wheels and decreasing unsprung weight? Give us a
call at 714-582-3330 |
 |
Shipping
Local
pickup of these wheels can be performed in the southern
California area, please e-mail a ModBargains sales
representative to schedule an appointment. Otherwise
shipping is a flat $99 to the US. International shipping
quotes are available via email.

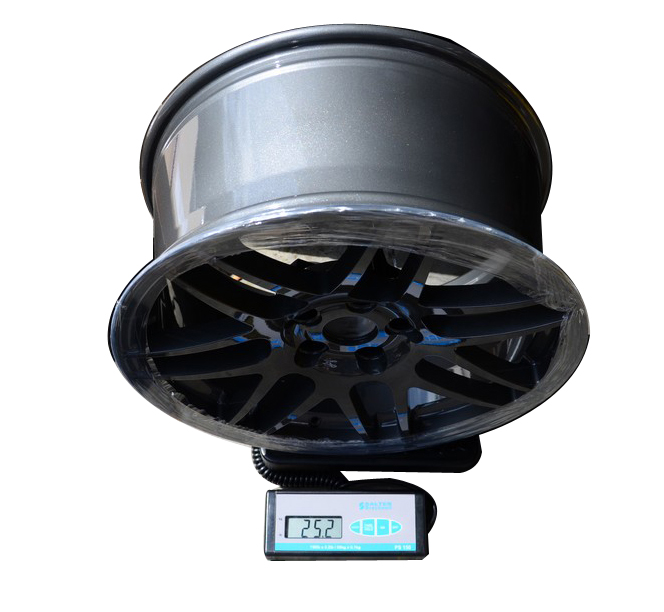

Weights
17x8.5 ET48 - 18.5 Lbs.
17x9.5 ET48 - 20.1 Lbs.
17x10 ET42 - 19.4 Lbs. |
|

Forgestar F14
Available
Finishes
All Forgestar F14 finishes are now
powdercoated. If you would like custom pinstripe please call in to place
your order, (714) 582-3330.
-
Gloss Black
-
Matte Black
-
Textured Black
- Silver
- Gunmetal
- Textured Gunmetal
- Frost White
- Race Gold
- Premium custom powdercoat finishes
also available (See below)
- Semi Gloss Black
- Brushed Black
- Brushed Charcoal
- Brushed Titanium
- Carbon Overlay - 100% real carbon
fiber overlay
- Karbon Overlay- This is a carbon
fiber look overlay
Custom Finishes Available:

Forgestar F14
Increased Load Ratings
The 19" Forgestar F14 now has an
increased load rating per wheel. The JWL VIA certified load rating for
all 19" F14 sizes is 1520Lbs.
ModBargains is
proud to offer you the Forgestar Wheel Lineup with the latest technology in
wheel production to bring you the best of both worlds. This new
lineup utilizes a combination of the best methods of forging and casting
methods both in the same wheel. This is called flow form casting, and is
used by companies such as BBS and Enkei.
These wheels are made to order and can be made
to fit your Mustang with a large range of available
sizes, offests and finishes.

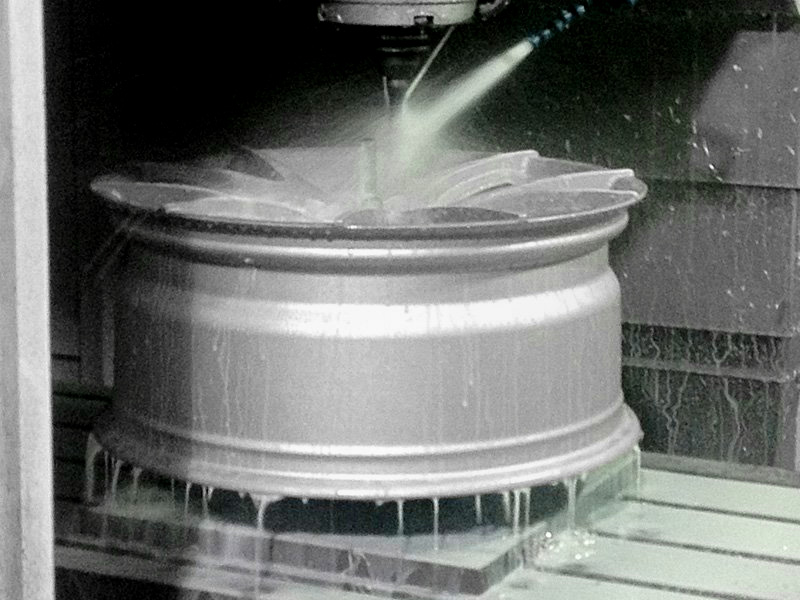

Flow form casting is a production
procedure that turns the wheel (or rim section) over a special mandrel
and three hydraulic rollers using tremendous pressure. The pressure and
turning then force the rim area to form against the mandrel, creating
the shape and width of the rim. During flow forming, the rim actually
"flows" down to create the full rim width.
During flow forming, pressure applied to the cast rim actually changes
its mechanical properties, so its strength and impact values become
similar to those of a forged rim. That translates to up to
15% less weight when compared to a
standard cast wheel.

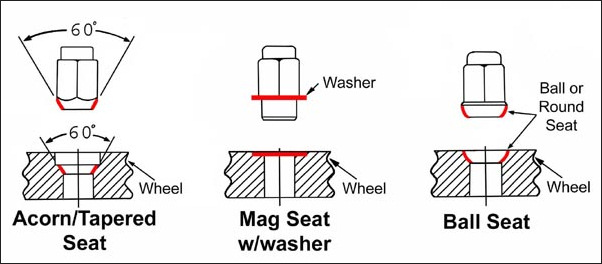

***Please note the Forgestar F14 will require
cone seat lug nuts so that the wheels sit properly on the hub. We can
provide these for you (see attributes).
Not sure
what Forgestar F14 offset you need? Let our product specialists take
care of it and give us a call at
714-582-3330 |

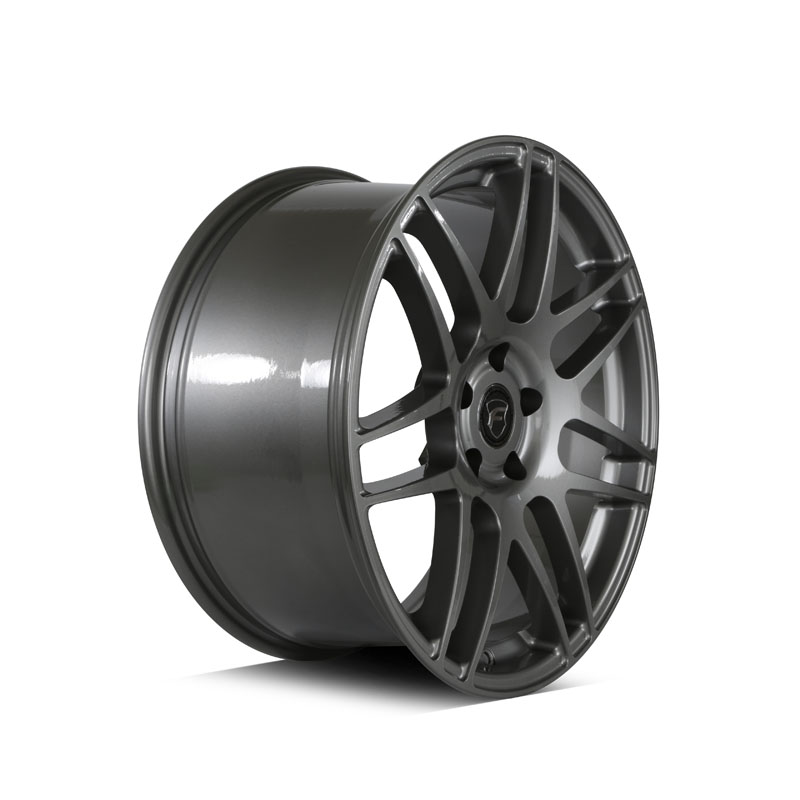

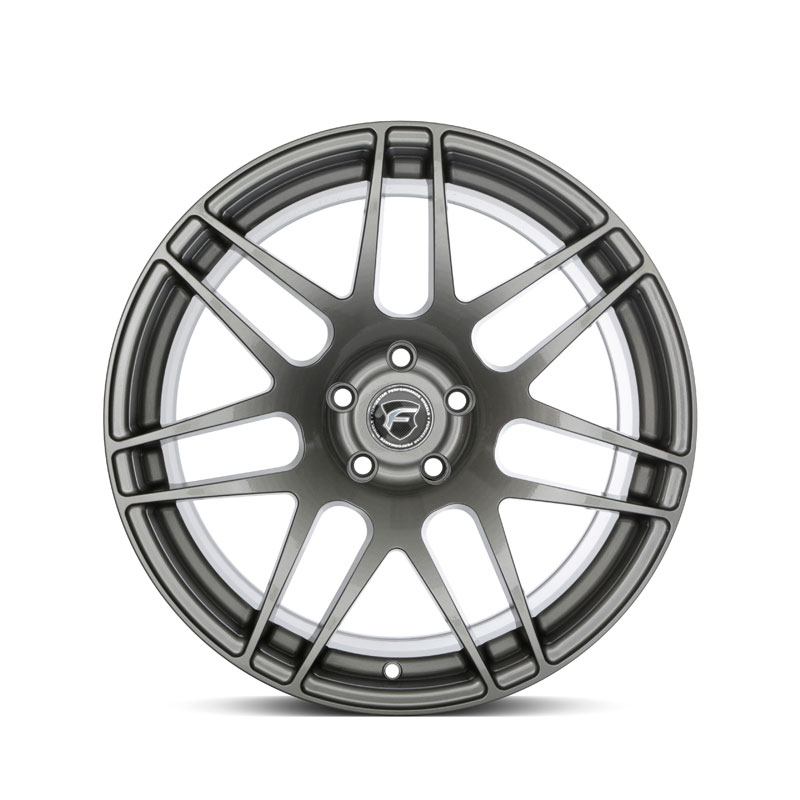

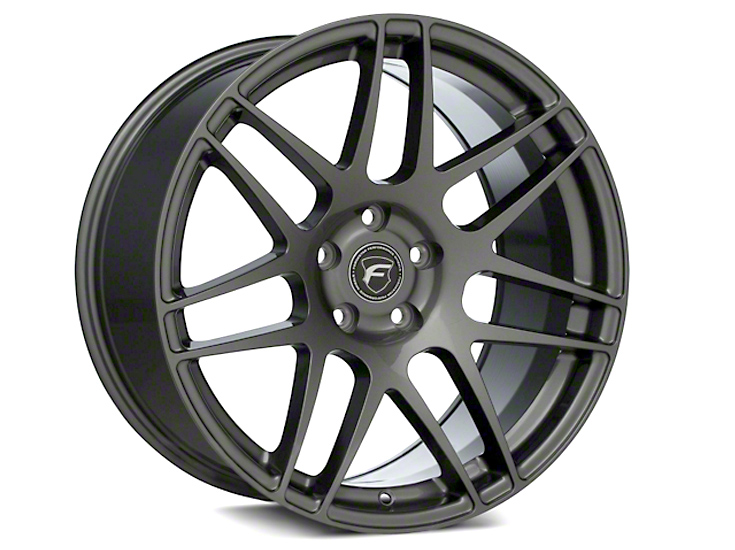

Forgestar F14
Gunmetal:

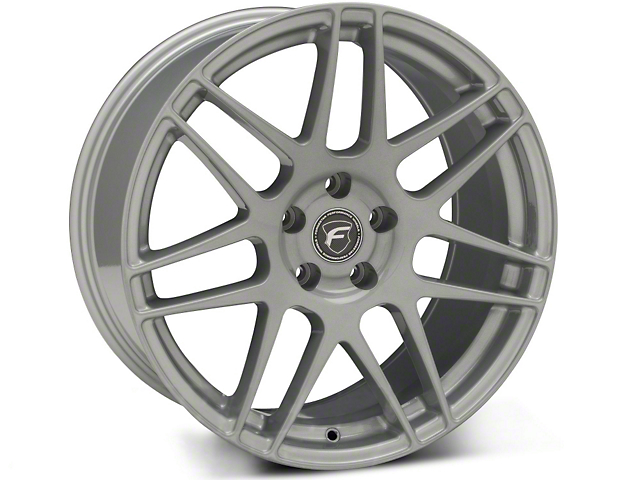

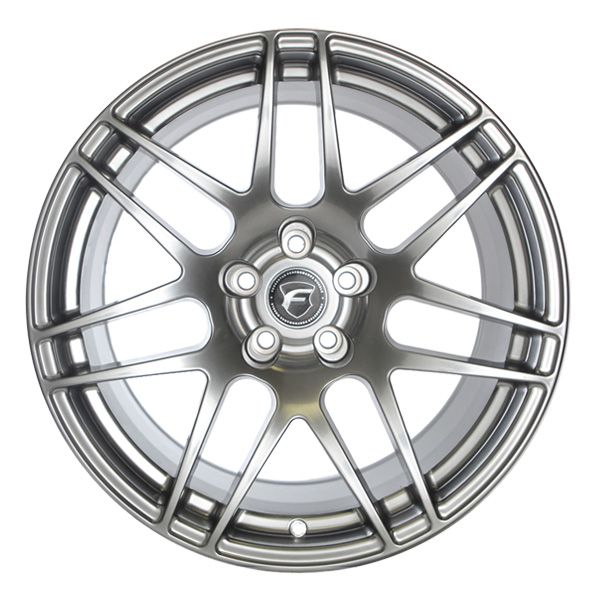

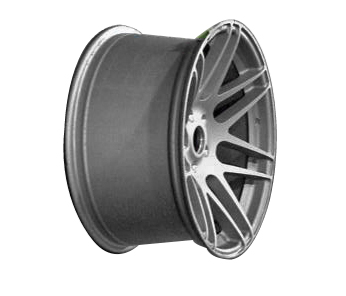

Forgestar F14

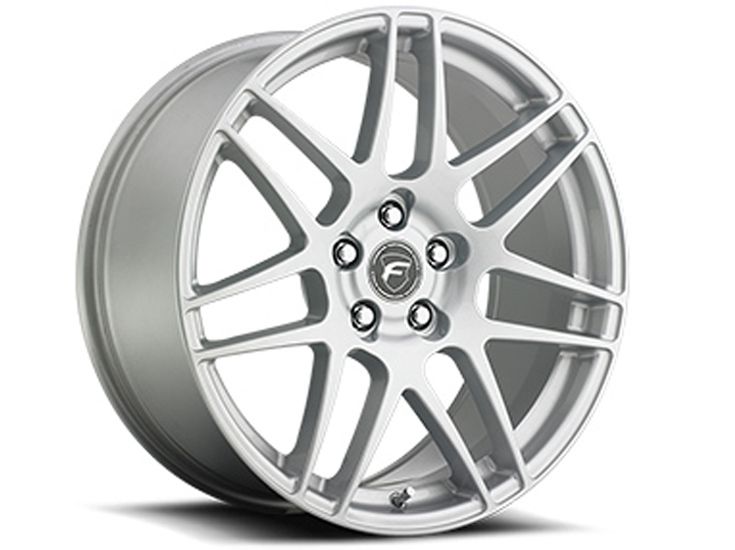

Silver:


Forgestar F14
Brushed Silver:



Forgestar F14

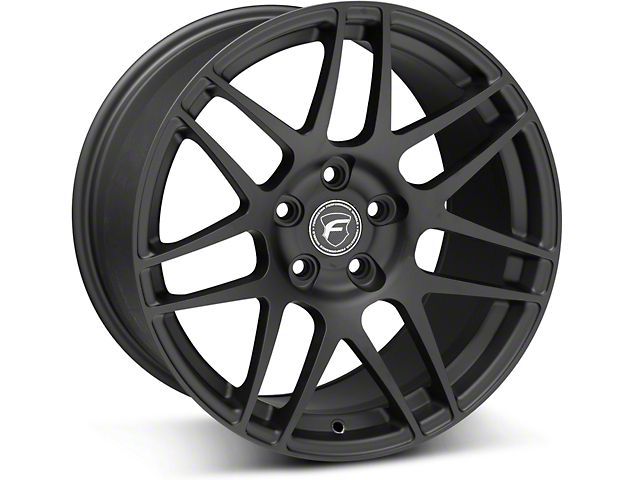

Matte Black:

Forgestar F14
Semi Gloss Black:


Forgestar F14

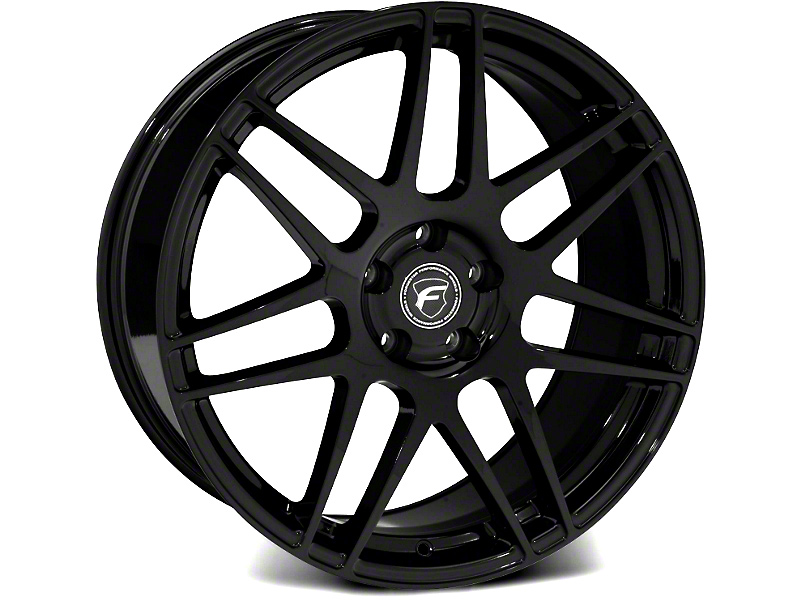

Gloss Black:

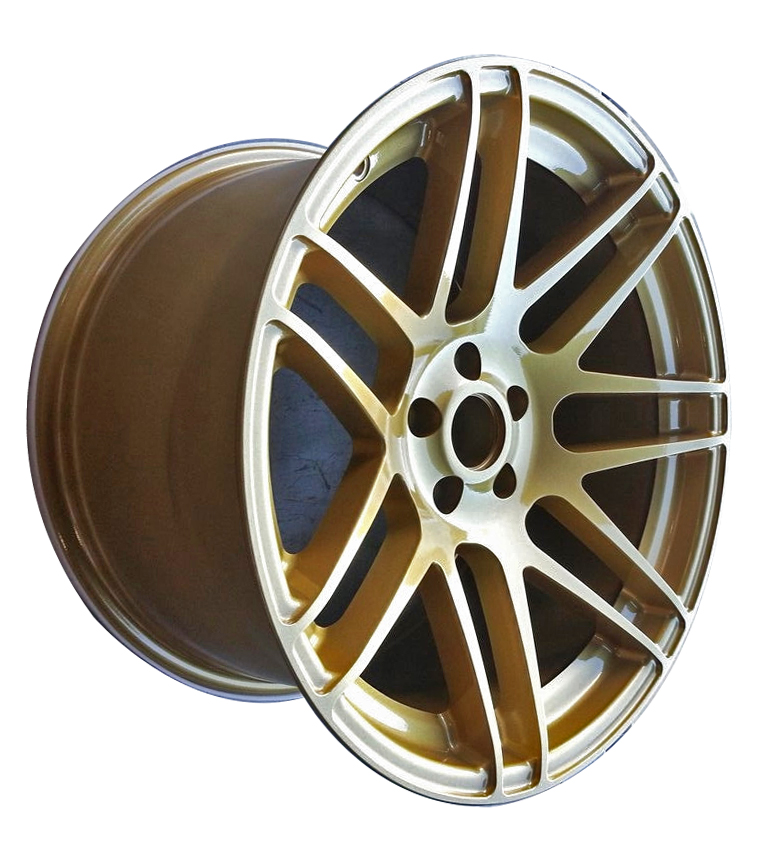

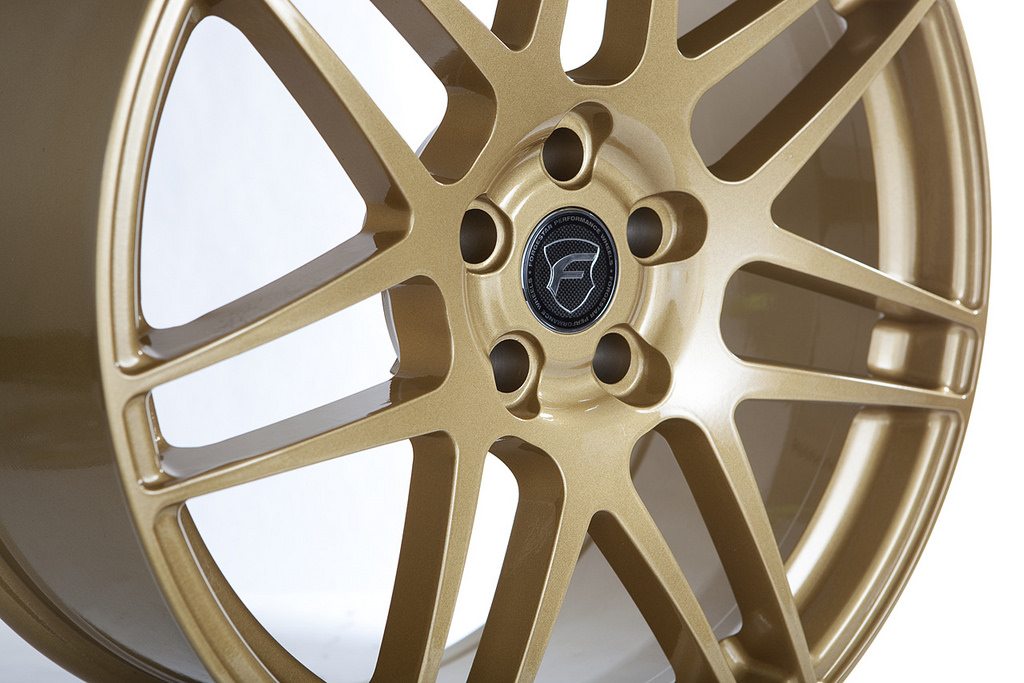

Forgestar F14 Race
Gold:



Bronze Burst:
.jpg)
.jpg)
Blood Red:
.jpg)
.jpg)

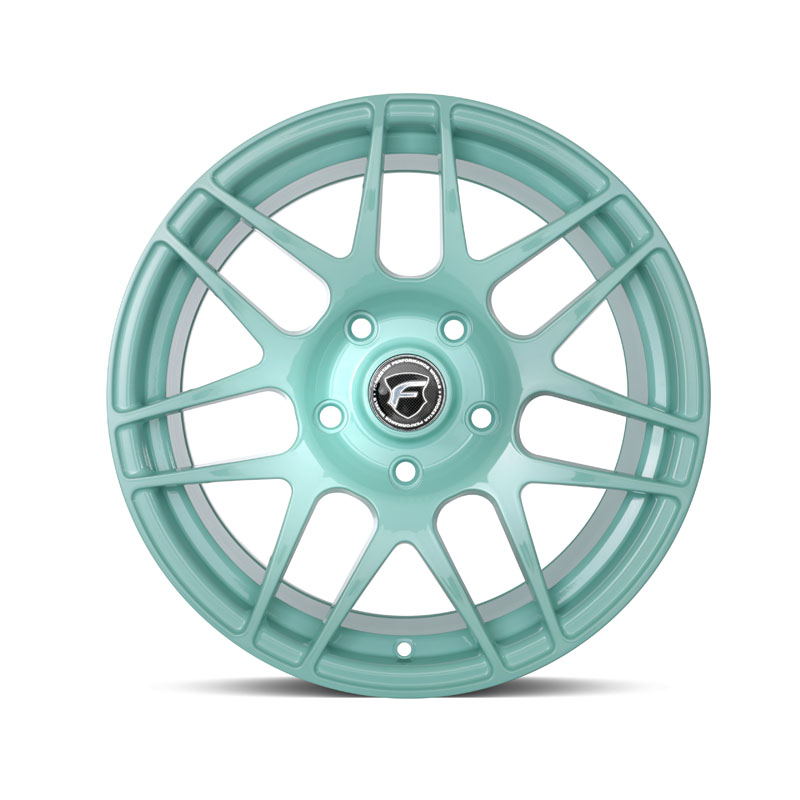

Tiffany Blue:

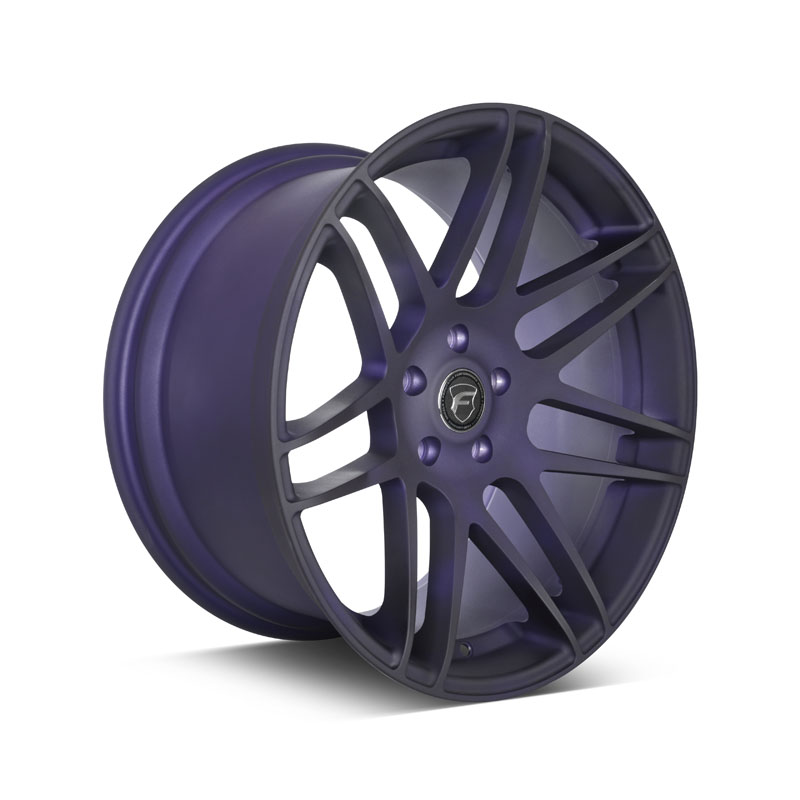

Anodized Purple:

Forgestar
F14 Wheel Gallery:

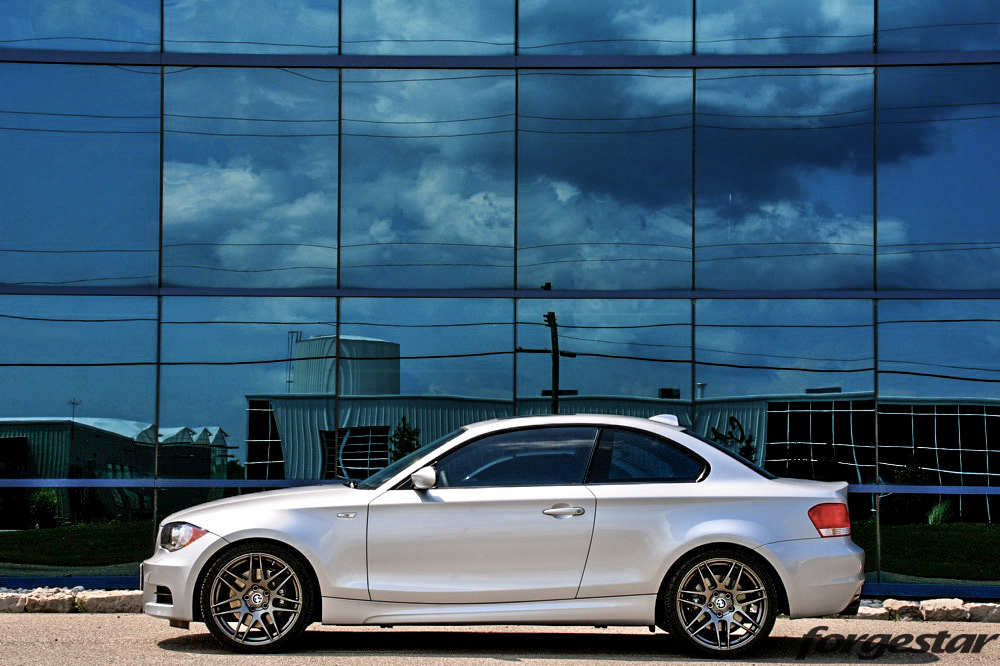

Forgestar F14 Gunmetal 17x8.5 / 17x9.5 on BMW 135i [E82]
.jpg)
Forgestar F14 Silver 17x8.5 / 17x9.5 on BMW 135i [E82]
.jpg)
Forgestar F14 Silver 17x8.5 / 17x9.5 on BMW 135i [E82]

Forgestar F14 Silver 17x8.5 ET40 / 17x9 ET52 on BMW 135i [E82]

Forgestar F14 Silver 17x8.5 ET40 / 17x9 ET52 on BMW 135i [E82]

Forgestar F14 Silver 17x8.5 ET40 / 17x9 ET52 on BMW 135i [E82]

Forgestar F14 Silver 17x8.5 ET40 / 17x9 ET52 on BMW 135i [E82]

Forgestar F14 Blood Red 17x8.5 ET40 / 17x9.5 ET60 on BMW 135i [E82]

Forgestar F14 Blood Red 17x8.5 ET40 / 17x9.5 ET60 on BMW 135i [E82]

Forgestar F14 Blood Red 17x8.5 ET40 / 17x9.5 ET60 on BMW 135i [E82]
Not sure what Forgestar
F14 finish will look best with your vehicle? Call us at
714-582-3330
Why Forgestar F14 Wheels are Better Than Cast Wheels

- Custom Offsets - Forgestar
F14
wheels can be made in virtually any offset, whereas standard
cast wheels come in a set offset. This allows you to dial in
exactly how you want your wheels to sit (we can help you select the
offset you need for the look your looking for). Having custom
offsets allows for fitment of wider wheels
in stock suspension and lowered vehicles. Forgestar wheels are
designed
specifically for your car and it's suspension setup,
where cast wheels are designed for everyone and typically do not
take in to account lowered suspension setups.


-

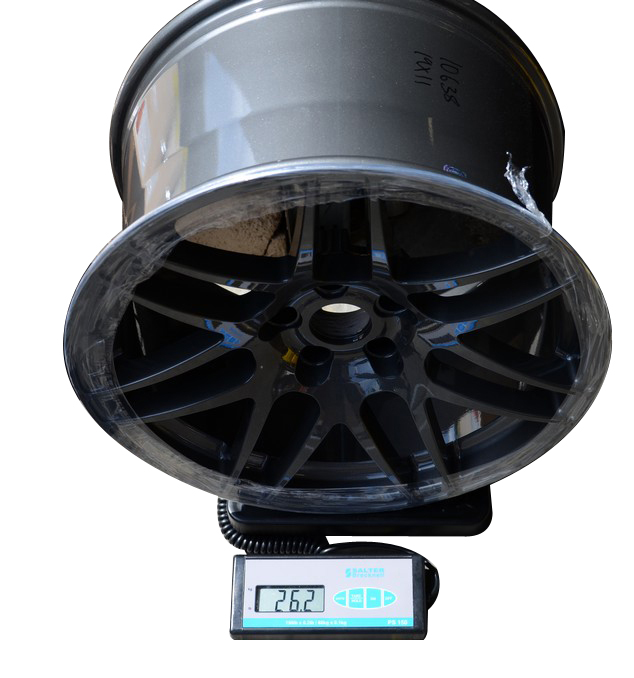

Weight - Forgestar
wheels are also much lighter than cast wheels. The 17x8.5 F14
wheel weighs 19.8Lbs (making it the lightest Forgestar wheel
available), where a cast
wheel of this same size would weigh anywhere from 30 to 34 Lbs. This saving of roughly
7-13 pounds per wheel makes a BIG
difference in regards to handling and drivability. Reducing unsprung
weight (weight that is not supported by the car's suspension, i.e
wheels, tires, brake rotors, and brake calipers) is one of the
easiest ways to improve your car's
handling, braking, and
acceleration. As a general estimate 1 pound of unsprung
weight is equal to 10 pounds of static weight. (weight that is
supported by the vehicle's suspension).

- Strength - Flow-formed wheels
are similar in strength to that of a fully forged wheel, without the
cost. The process used to make the Forgestar F14 wheels is the
same process BBS and Enkei Wheels use.

- Range of Sizes - Forgestar
F14
wheels are available in a multitude of sizes, allowing you to decide
exactly what diameter and width you want to run on your vehicle,
rather being forced to run a set staggered size with cast wheels (As
cast wheels usually are only available with one set front wheel
width, and one rear wheel width).

Forgestar
F14
Shipping
Local pickup of these wheels can be performed in the
southern California area, please e-mail a ModBargains sales
representative to schedule an appointment. Otherwise shipping is a flat
$99 to the US. International shipping quotes are available via email.
Want to
know how much faster your car will get by putting on lighter wheels and
decreasing unsprung weight? Give us a call at
714-582-3330
Forgestar
F14 Wheels

Installing Wheels Only requires basic hand tools for
installation - However, Mounting Tires Should Be Done By a
Professional.

Questions about these Forgestar Wheels for BMW with 5x120mm Bolt Pattern? Call 714-582-3330 to speak to a Modification Expert, or schedule
installation at our full-service shop in La Habra, CA.
