Features
- Lightweight design and construction
- Fully custom wheel without the large
price
- Custom offsets, fitment, and finish
- TPMS compatible
- Can be made to fit any Chevrolet car
- Clears OEM brake calipers and BBKs
Available Sizes & Offsets
|
18" |
19" |
20" |
|
18x8.5 ET10 - ET50 |
19x8.5 ET10 - ET50 |
20x8.5 ET10 -
ET50 |
|
18x9.0 ET15 - ET55 |
19x9.0 ET16 - ET44 |
20x9.0 ET16 - ET56 |
|
18x9.5 ET22 - ET62 |
19x9.5 ET10 - ET50 |
20x9.5 ET2 - ET42 |
|
18x10 ET10 - ET50 |
19x10 ET16 - ET56 |
20x10 ET29 - ET69 |
| 18x11
ET23 - ET63 |
19x11
ET26 - ET69 |
20x10.5 ET15 -
ET55 |
|
18x12 ET36 - ET75 |
19x12 ET42 - ET82 |
20x11 ET42 - ET82 |
| |
|
20x12 ET34 - ET74 |
KaTech CF Front
Lip / CFKits Side Skirts Forgestar
CF5 Matte Black 18×10 / 19×12
Pirelli P-Zero
285/35-18 / Michelin
Pilot Super Sport Tires 345/30-19 on KW
V3 Coilovers
Forgestar CF5 Wheels Available Finishes
All Forgestar CF5 finishes are powdercoated
for great durability and ease of maintenance. If you would like
a custom pinstripe please call in to place
your order, (714) 582-3330. The following are the available powdercoat
finishes.
-
Gloss Black
-
Matte Black
-
Textured Black
- Silver
- Gunmetal
- Textured Gunmetal
- Frost White
- Race Gold
- Brushed Titanium
- Premium custom powdercoat finishes
also available (See below)(Sapphire Blue, Sunset Orange, Takata
Green, etc)
- Carbon Overlay - 100% real carbon
fiber overlay
- Karbon Overlay- This is a carbon
fiber look overlay
|
Looking for a lightweight and yet still
great looking set of wheels for your Chevrolet? Look no further than the
flow formed Forgestar CF5 Chevrolet Wheel. The Forgestar CF5 is a
completely custom wheel, without the heavy price usually associated with
this. Being a flow
formed wheel allows the Forgestar CF5 to be extremely durable, and even
weighs up to 15% less than a cast wheel.
Flow form is a special casting
process that turns the wheel over a
special mandrel and three hydraulic rollers using tremendous pressure.
The pressure and turning then forces the rim area to form against the
mandrel, creating the shape and width of the rim. During flow forming,
the rim actually "flows" down to create the full rim width. Pressure applied to the
wheel actually changes
its mechanical properties, so its strength and impact values become
similar to those of a forged rim.
Please note the Forgestar CF5 Wheels will
require cone seat lug nuts so that the wheels sit properly on the hub. We can
provide these for you (see attributes). The price above is for a set of
4 Forgestar CF5 Wheels!
|
Why Forgestar wheels are better than cast wheels
- Custom Offsets - Forgestar
wheels can be made in virtually any offset, whereas standard
cast wheels come in a set offset. This allows you to dial in
exactly how you want your wheels to sit (we can help you select the
offset you need for the look your looking for). Having custom
offsets allows for fitment of wider wheels
on both stock suspension and lowered vehicles. Forgestar wheels are
designed
specifically for your car and it's suspension setup,
where cast wheels are designed for everyone and typically do not
take in to account lowered suspension setups or fender
modifications.
-

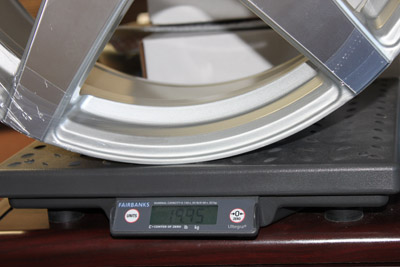

Weight - Forgestar
wheels are much lighter than cast wheels. The 18x8.5 Forgestar CF5
wheel weighs an amazingly light 19.95 lbs, where a
cast wheel of this same size would weigh anywhere from 24-26 lbs.
This is a saving of roughly 5-7 pounds per wheel makes a BIG
difference in regards to handling and drivability. Reducing unsprung
weight (weight that is not supported by the car's suspension, i.e
wheels, tires, brake rotors, and brake calipers) is one of the
easiest ways to improve your car's
handling, braking, and
acceleration. As a general estimate 1 pound of unsprung
weight is equal to 10 pounds of static weight. (weight that is
supported by the vehicle's suspension). By using this ratio if you
were to replace your stock wheels that weighed 27 lbs with Forgestar
wheels you would be saving 180 lbs. in static weight!
- Strength - Flow-formed wheels
are similar in strength to that of a fully forged wheel, without the
cost. The process used to make the Forgestar wheels is the
same process BBS wheels uses as
well. The Forgestar CF5 is rated at 1520 lbs per wheel
which is considerably more than a cast wheels which are typically
around 1000-1200 lbs. per wheel.
- Range of Sizes - Forgestar
wheels are available in a multitude of sizes, allowing you to decide
exactly what diameter and width you want to run on your vehicle,
rather being forced to run a set staggered size with cast wheels (As
cast wheels usually are only available with one set front wheel
width, and one rear wheel width).
Wheel Weights
-
18x8.5 - 19.95 Lbs
-
18x9.0 - 20.9 Lbs
|
Shipping
Local pickup of these wheels can be performed in the
southern California area, please e-mail a ModBargains sales
representative to schedule an appointment. Otherwise shipping is a flat
$99 to the US. International shipping quotes are available via email.
Not sure what
Forgestar CF5 finish will look best with your Chevrolet? Call us at 714-582-3330 |
|
Forgestar CF5 Wheels Finishes:
Matte Black:
Forgestar CF5 Matte Black 18×10 / 19×12
Pirelli P-Zero 285/35-18 / Michelin
Pilot Super Sport Tires 345/30-19 on KW
V3 Coilovers
Forgestar CF5 Matte
Black 18×10 / 19×12
Pirelli P-Zero 285/35-18
/ Michelin
Pilot Super Sport Tires 345/30-19 on KW
V3 Coilovers

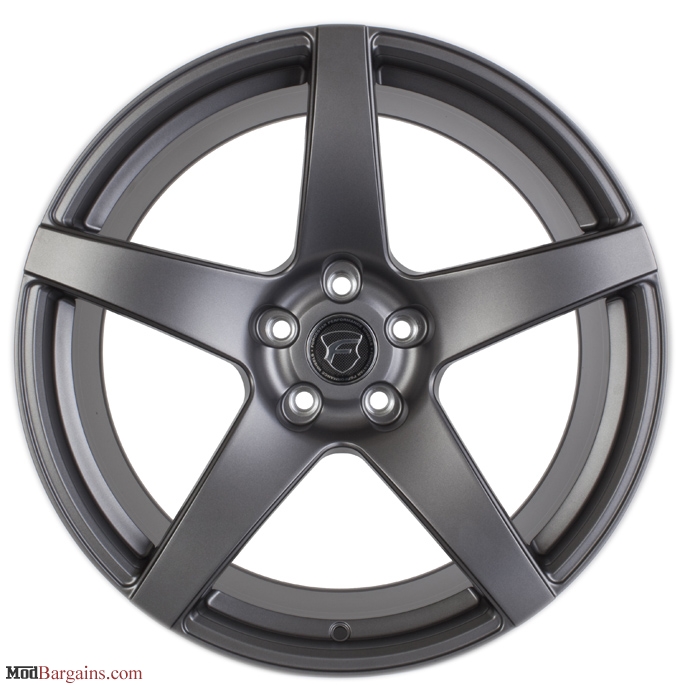

Gunmetal Finish:

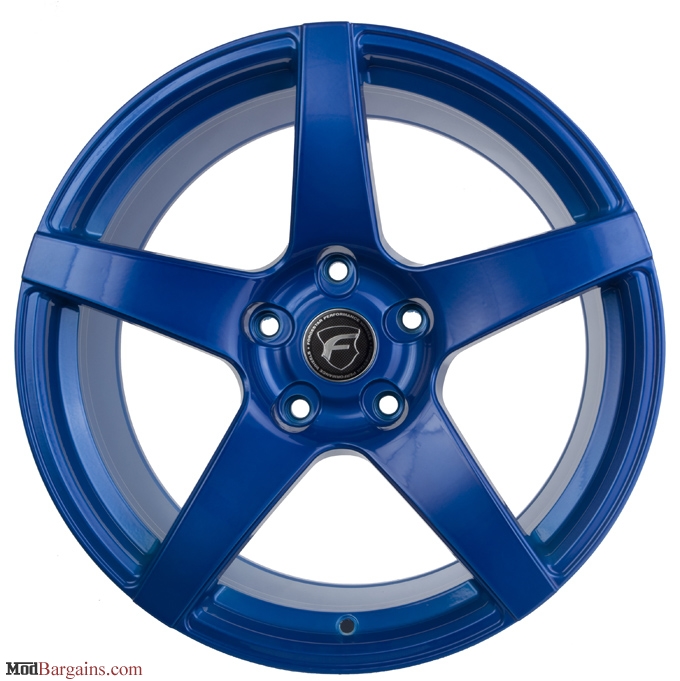

Forgestar CF5 Sapphire Blue Finish (Custom):
Forgestar CF5 Sunset Orange Finish (Custom):
Forgestar CF5 Carbon Overlay
(Custom):

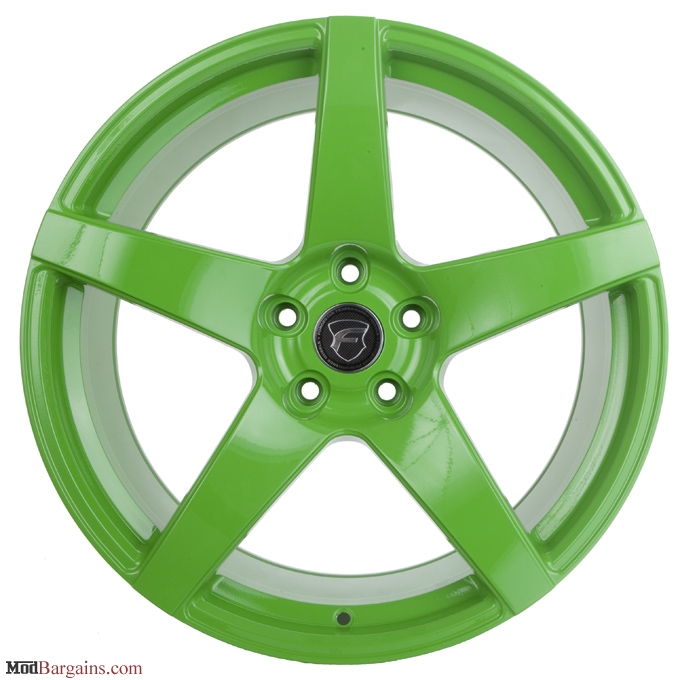

Forgestar CF5 Takata Green Finish (Custom):
Semi Gloss Black:
Brushed Black:
Blood Red:
Anodized Purple:
Tiffany Blue:
Bronze Burst:
Brushed Charcoal:
Not sure what
Forgestar CF5 finish will look best with your Chevrolet? Call us at
714-582-3330
What you need to know about the
Flow-Forming Procedure
|
Forgestar's flowforming process is a unique solution to a common problem
– how to make a wheel both light and strong.
|
|
This
specialized process begins with a low pressure type of casting and uses
a special machine that spins the initial casting, heats the outer
portion of the casting and then uses steel rollers pressed against the
rim area to pull the rim to its final width and shape. The
combination of the heat, pressure and spinning create a rim area with
the strength similar to a forged wheel. During Flow Forming, the
pressure applied to the cast rim actually changes its mechanical
properties, so its strength and impact values become similar to those of
a forged rim. That translates to up to 15% less weight when compared to
a standard cast wheel. The
resulting grain structure within the alloy of the wheel is linear,
flowing in a single direction.
This grain structure pattern, combined with the exceptional quality of
casting required for the process, gives the rim area of the wheel huge
mechanical strength, and elongation. As a result of these mechanical
characteristics, Forgestar is able to reduce the thickness of the rim
area resulting in reduced weight, without compromising strength and
resistance to impact.
So in a nutshell, the process makes the
wheels:
-
Almost as strong as forged wheels
-
Lighter than cast wheels
-
Customizable to a range of offsets and
bolt patterns
-
A great value for the price
|
 |
 |
Pictures of the Flow-Forming Process:
|
Forgestar has
long been an advocate for wheel durability testing. They strongly
believe that any issue regarding consumer safety is an important one.
They want every customer contemplating the purchase of Forgestar wheels
to know that it has been carefully engineered by the Forgestar team and
thoroughly tested by independent third-party testing laboratories.
Actual test
reports from independent third-party test laboratories, such as
Standards Testing Labs
(STL), have been provided by Forgestar.
The most common
test standards used are those published by SAE (J2530) and TUEV
Rheinland (Germany). PDF files of these actual test reports are provided
below as well as an explanation of how the tests are performed and what
the results mean to you as a consumer.
They send every
width in each wheel design family with the offset configuration that
presents the greatest testing challenge and subject it to the equivalent
of a full product lifetime of stress in a third-party laboratory. In
this way, it is ensured that the recommended wheel fitment is safe at
maximum rated load. |
|
FO5 WHEEL TEST DATA
STL REPORT 19x8.5 (PDF 35K)
STL REPORT 19x9.0 (PDF 35K)
STL REPORT 19x10 (PDF 35K) |
F14 WHEEL TEST DATA
STL REPORT 19x8.5 (PDF 35K)
STL REPORT 19x9.0 (PDF 35K)
STL REPORT 19x10 (PDF 35K)
STL REPORT 19x11 (PDF 35K) |
|
|
|
