Evolution Racewerks Intercooler for 2014+ BMW 228i/320i/328i/428i [F22/F30/F32] for N20 BM-FMIC006

We Price Match!

Speak with one of our Mod Experts

714.582.3330   or   Live Chat

We'll match or beat any competitor's price!


Some restrictions and exclusions apply.

Please see our full Price Match Policy for details.

$850.25 - $1,443.91
(No reviews yet) Write a Review
SKU:
evolution-racewerks-fxx-n20-fmic-ng-basic

We Price Match!

Speak with one of our Mod Experts

714.582.3330   or   Live Chat

We'll match or beat any competitor's price!


Some restrictions and exclusions apply.

Please see our full Price Match Policy for details.

Shipping:
$49.00 (Fixed Shipping Cost)

WARNING: product may contain chemicals known to the State of California to cause cancer, birth defects, and/or reproductive harm.
For more information, go to www.P65Warnings.ca.gov.

DISCLAIMER: Products that affect or remove vehicle emissions equipment (Intakes, Manifolds, Tuners, etc) that do not have a CARB EO number may not be available for sale in the state of California. Please contact us if you are unsure if a product is available for sale in California. ModBargains complies with all EPA and CARB regulations.

Benefits
  • Massive 20""x11""x3"" intercooler core drops air charge temps
  • Improved Flow thanks to Cast End Tanks
  • Accelerate Faster with 15-25 Horsepower Gain at the Wheels!
  • Give your Front End an Aggressive look with Polished or Brushed finishes or optional thermal coated black.
  • Includes all aluminum intercooler piping, which replaces all OEM rubber hoses with hard piping for improved throttle response and faster turbo spool up
  • Piping features beaded ends, silicone ""hump"" hoses, and T-bolt clamps
  • Maintains all factory components

Applications

  • 2014+ BMW 228i [F22]
  • 2013+ BMW 320i 328i [F30/F31]
  • 2014+ BMW 428i [F32/F33]



Upgrade your existing intercooler to an Evolution Racewerks Competition Series Intercooler for improved cooling, and noticeable gains in power. The Evolution Racewerks Intercooler has been in development for over a year on and off the track, and has had 6 design revisions to improve cooling efficiency and flow characteristics. Dyno tests have proven the intercooler to show gains of 15 - 25 horsepower at the wheels, and even more on high boost applications.

Unlike turbo kits and other parts where the main power adder is constant, intercooler gains (or recovery) is based largely on how badly the current intercooler setup working and will vary from setup to setup. Dyno graphs do not properly show the performance of intercoolers, intake air temperatures do as that is the job of the intercooler. A car running factory boost pressures and our FMIC will see lower gains than another car running more boost (software upgrade) with the same FMIC. Even running upgraded downpipes and exhaust will affect overall gain (or recovery).

Evolution Racewerks Intercooler for 2014+ BMW 220i/320i/328i/428i [F22/F30/F32] for N20 BM-FMIC006

The wait is over. With over a year of development and testing on a stable of test cars in different racing conditions, we're proud to introduce our new Competition Series Front Mount Intercooler (FMIC), the ultimate intercooler solution for your N20 or N26 engine 228i, 320i, 328i and 428ii!

Features
The heart of the Evolution Racewerks Competition Intercooler is the massive 20”x11""x3” (26”x11x3” with end tanks) high density bar and plate intercooler core. It features 660 cubic inches of very efficient high density bar & plate core, versus the factory 425 cubic inches.  Through extensive testing of different types of intercooler cores Evolution Racewerks found that the high density bar and plate core to be the most efficient. Independent testing has shown that the Evolution Racewerks Intercooler is so efficient in cooling that it has cooled intake air temperatures to almost ambient (outside) temperatures. Evolution Racewerks also did extensive testing on the proper size to use to effectively cool the hot charged air as well as fight off “heatsoaking”. “Heatsoaking” is not an issue at all as shown by consistency of the Intake air temperatures staying in the same temperature range throughout the WHOLE RPM powerband. Evolution Racewerks' Competition Intercooler is just what it is, designed for competition. Evolution Racewerks has tested their intercooler in 100+ degree heat, on their time attack race car and have had no problems with heatsoaking. With it's size and ability to support over 600hp, it is most likely the last intercooler you will ever buy.

Features
  • Large 20""x11""x3"" intercooler core
  • Cast end tanks for improved durability and flow
  • Piping features beaded ends, silicone ""hump"" hoses, and T-bolt clamps
  • All hardware needed to install is included
  • Limited lifetime warranty

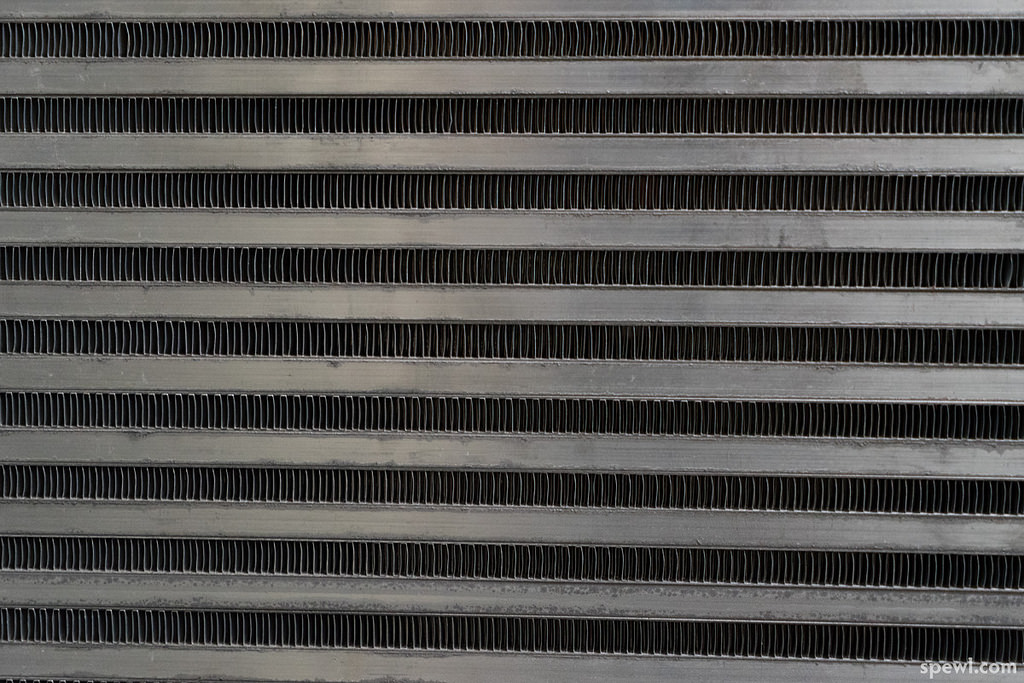

Evolution Racewerks High Density Intercooler Core

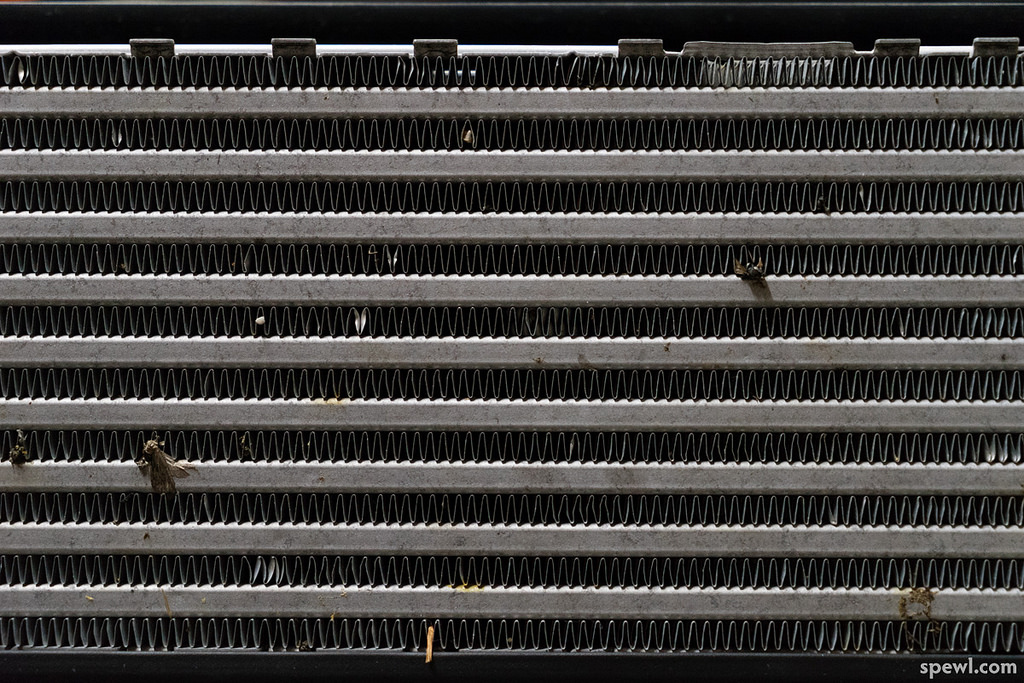

OEM Intercooler Core

Design
One of the most overlooked aspect of intercooler design is the intercooler end tank and piping.  Having shorter and less bends on the intercooler piping will promote better internal flow.  This helps in reducing turbo lag, increase throttle response and faster boost spool ups.  An intercooler end tank must be designed to channel and distribute air coming in from the inlet efficiently throughout the intercooler core.  Evolution Racewerks' end tanks design has been revised numerous times to promote smooth internal air flow. The cast end tanks allow a smooth radius on the inner edges of the end tank, causing less turbulence. The inlet pipe angle has been changed to provide a smooth entry into the end tank and removes an extra bend that the factory hoses have.  Rubber hosing expands under boost pressure.  This expansion disrupts internal flow and causes turbulence, all of which slow down airflow velocity (which causes slower boost spool up and decreased throttle response).  By replacing the factory rubber hoses with hard piping, noticeable increases in boost spool up and faster throttle response can be seen.

Placement

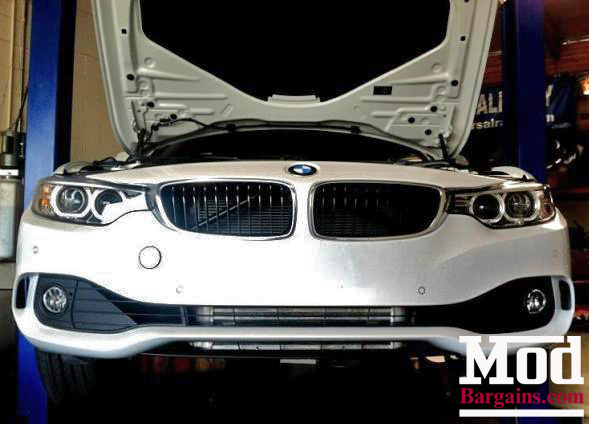

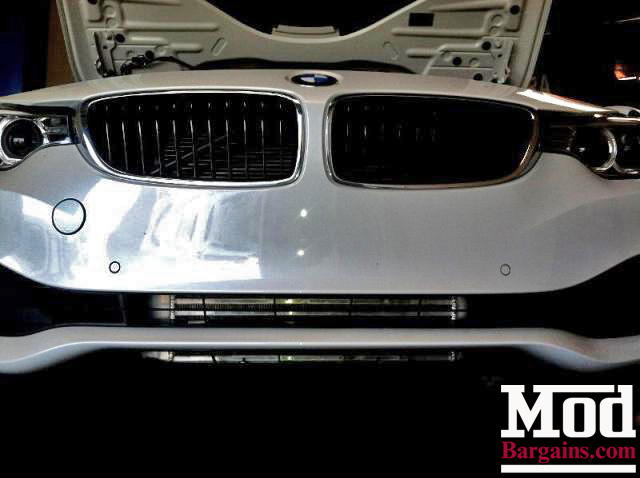

Evolution Racewerks' Competition Intercooler sits in the factory location underneath the radiator.  Why you ask?  The radiator fan and radiator shrouding extends from the radiator above towards the bottom, directly behind the factory intercooler.  By siting the intercooler in the same location, we can take advantage of the radiator fan pulling air through the intercooler core.  This makes for even greater efficiency, just like how the BMW engineers designed it to do.  With the optional carbon fiber shroud ducting, even greater efficiency can be had.  The carbon fiber shrouding channels airflow from the center grill to the intercooler core. Air wants to travel through the path of least resistance, which in this case is around the intercooler core instead of through it.  The carbon fiber shrouding prevents this and forces air to travel through the core. Even with a small fan on the dyno, intake air temperatures are still very low.  Also, by maintaining the factory configuration, we do not block airflow to the radiator at all.

Performance
Unlike turbo kits and other parts where the main power adder is constant, intercooler gains is based largely on how badly the current intercooler setup working and will vary from setup to setup. Dyno graphs do not properly show the performance of intercoolers, intake air temperatures do as that is the job of the intercooler.  A car running factory boost pressures and The Evolution Racewerks' Intercooler will see lower gains than another car running more boost with the same intercooler.  Even running upgraded downpipes and exhaust will affect overall gain. You will see a 15 to 25 hp to the wheels gain based on your modifications. On high boost cars, we have seen 25+ hp gains.

Available Intercooler Kits
There are three available intercooler kits available:

Basic - This kit includes the intercooler assembly. This replaces the factory intercooler.

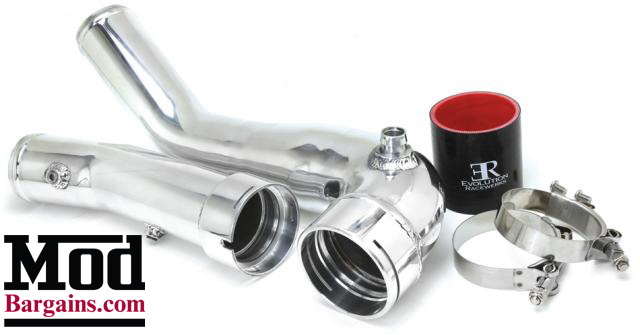

Standard - The Standard Kit consists of everything included in the Basic Kit but adds the Charge Pipe Kit. Increase throttle response as well as decrease turbo lag are the benefits of the new Charge Pipe Kit. Ease of installing methanol injection kits or a boost pressure source are an added benefit. Discounted as a bundle.

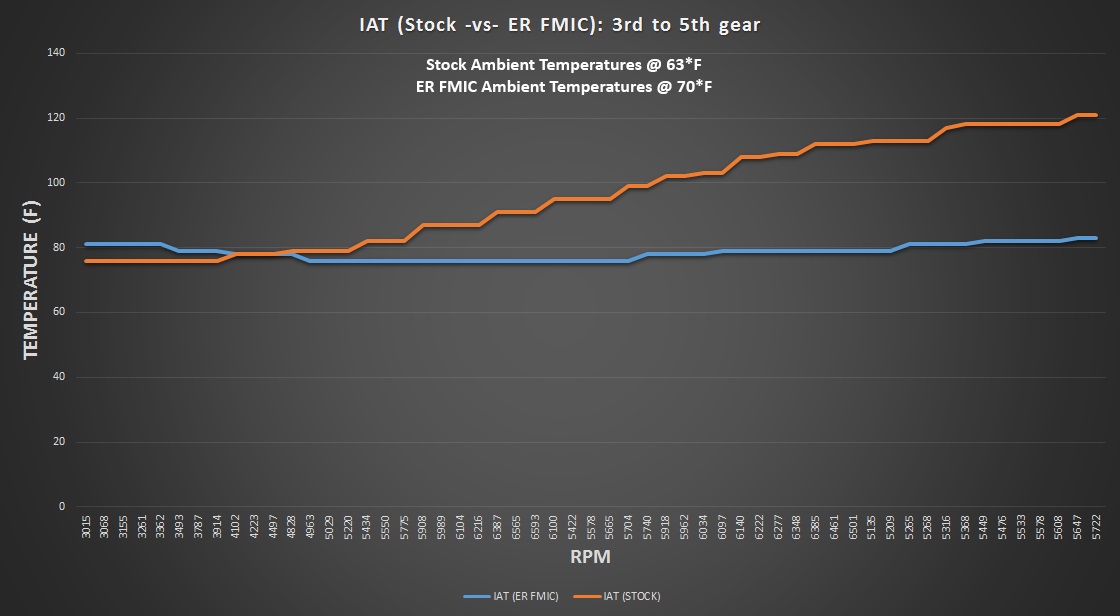

Take a look at the performance difference in Intake Charge Temperatures between OEM and the ER intercooler.

Interested in an Evolution Racewerks Intercooler for your BMW 228i, 320i, 328i & 420i?
Get yours at ModBargains.com, in stock and ready for fast shipping.

Call 714-582-3330 to order with our Modification Experts or Chat Online now!
