Product Detail |
 |
|
Are you looking for the
next update for your stock, turbocharged Audi B8 A4? The AWE Tuning Front
Mount Intercooler for the Audi B8 A4 reduces
intake temperatures by 30%. In addition to cooler intake
temperatures, you will also see increases of
21 HP and 20 lb/ft of torque
to your Audi B8 A4. Your stock front mount intercooler allows for harsh
temperatures that hurts the performance of your vehicle because it
doesn't cool the intake charge effectively at a performance level. This
front mount intercooler from AWE Tuning for your Audi B8 A4 was
developed in order to bring your intake temperatures down and performance levels
up.
Note: Currently not
available for vehicles equipped with Audi Drive Select.
|
AWE Tuning A4 Intercooler Benefits
• Intake
temperatures reduced by 30%
•
Dyno proven
+21 Crank HP and +20 lb/ft crank torque gains
• Uses OEM clamps and
hoses
• OEM fitment behind
crash bar
• OEM radiator and A/C system compatible
• Constructed from 100%
aluminum for maximum heat dissipation
• Tubing is 2.5 inch
mandrel bent aluminum
• End tanks made from
cast aluminum with inlet baffle
• Parts pressure checked before it is shipped from the factory
Applications
• 2009+ Audi A4 with
Quattro
• All transmissions
• Currently not available for vehicles equipped with Audi Drive Select
|
 |
|
Why It Works
AWE Tuning used a sophisticated Computer Aided Design software to
develop an intercooler with end tanks and a core that is
significantly larger than the stock Audi B8 A4 front mount intercooler.
This end tank and core combination allows for maximum heat dissipation,
which
decreases the intake air temperatures by 30%
over the stock A4 intercooler.
The reduction in intake air temperature
results in increases of 21 HP and 20 lb/ft
torque to the crank. Also, the ability to
use
factory hoses and clamps helps keep the cost down for you. AWE
Tuning has tested and developed their front mount intercooler through
constant testing, and went through 14 different revisions to ensure that
you are receiving the best possible product for your Audi B8 A4.
AWE Tuning
End Tank Design vs. Stock
The AWE Tuning Front Mount Intercooler utilizes a different designed end
tank compared to the stock and other typical box-styled end tanks. The
box styled end tanks on the stock intercooler creates a significant
amount of air turbulence which results in poor cooling and air flow to
the core.
The end tank design of the AWE Tuning Front Mount Intercooler
reduces the air turbulence going to the core and keeps the pressure drop
to a minimum. The AWE Tuning designed end tank also
allows for a larger intercooler core which helps
provide a 45 degree F drop in temperature in comparison to the stock
intercooler.
Have Any
Questions? Please Give One of Our Sales Representatives Today at (714)
582-3330
|
Performance
Specs

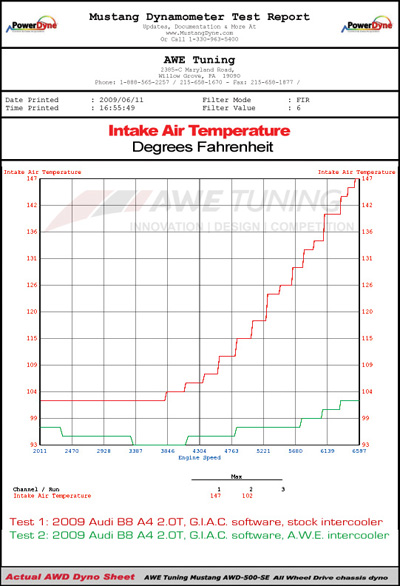

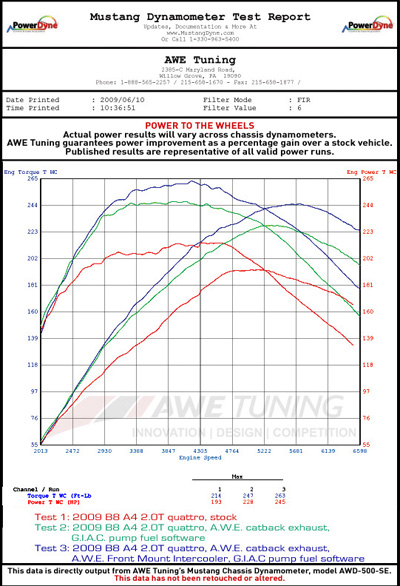

All the data AWE Tuning has collected was on their Mustang MD-AWD-500-SE
AWD dynamometer utilizing the dyno's built-in data acquisition as well
as a portable, lab grade datalogger. Back to back runs were made while
testing the stock and AWE Tuning intercoolers to show consistent power
increase and temperature decreases. When combined with a chip upgrade,
the stock turbo runs at near-capacity and produces significantly more
heat than at stock levels. The AWE Tuning Front Mount Intercooler for
the Audi B6 A4 produces more power and less heat as shown in the dyno
test reports.

Installation
The AWE Tuning B8 A4
Intercooler is a medium - advanced installation. Basic hand tools and
some modification to OEM parts are required.
Click Here For AWE Tuning Front Mount Intercooler
B8 A4 Installation Guide

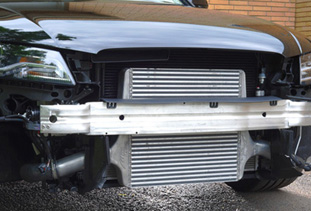

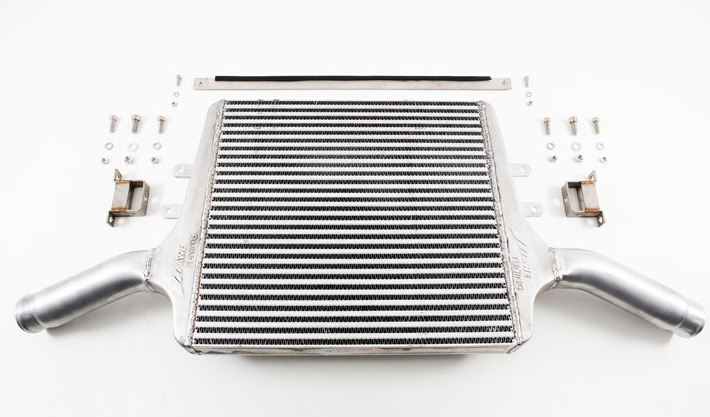

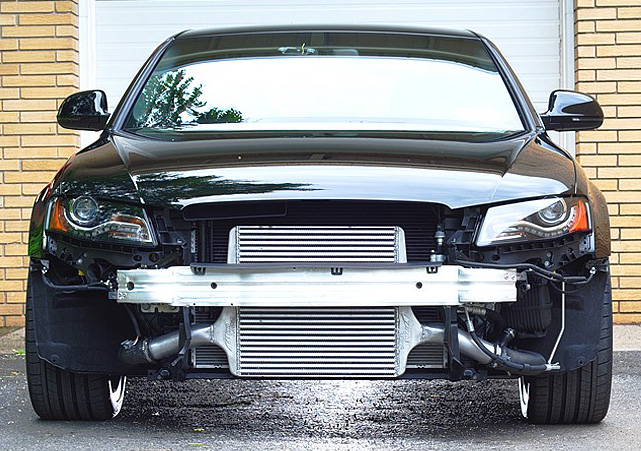

AWE Tuning
Front Mount Intercooler B8 A4 Gallery
|
|
|
 |
 |
|
|
|
 |
 |
 |
